2P 10AX 2-way switch fan coil white - 14063

Pdf
Vimar - 14063 - 2P 10AX 2-way switch fan coil white
Vimar - 14063 - 2P 10AX 2-way switch fan coil white

14063
Wiring devices / Traditional wiring devices / PLANA / Devices

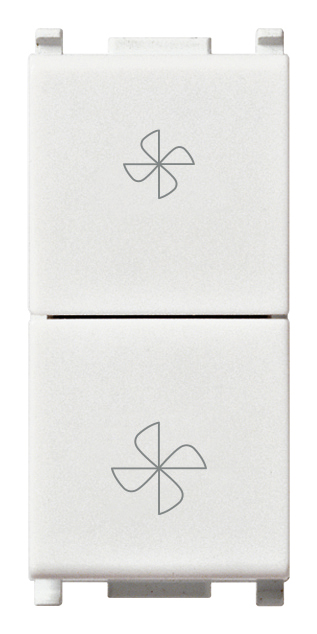

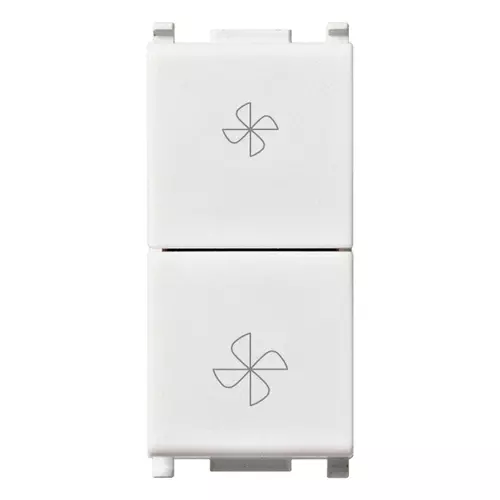

2P 10AX 2-way switch fan coil white

Product Status
3 - Active

Drawings

view encumbered art. 14063
PNG DXF
rear view art. 14063
PNG DXF
3D view art. 14063
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Other
Method of operation
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
No
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
42,90 mm
Built-in depth
33,50 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

01. IMQ - Italy

20. IQC - Argentina

29. QCERT - Colombia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352720862
1 NR
5.1x2.8x5.3 [cm]
42.8 [g]
Barcode Qty 10 NR
8007352720879
10 NR
14.4x11.6x6 [cm]
473.8 [g]
Barcode Qty 120 NR
8007352720886
120 NR
36.5x33x13.5 [cm]
6,392 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
