Two independent 1P NO+NC10A pushes white - 14058

Pdf
Vimar - 14058 - Two independent 1P NO+NC10A pushes white
Vimar - 14058 - Two independent 1P NO+NC10A pushes white

14058
Wiring devices / Traditional wiring devices / PLANA / Devices

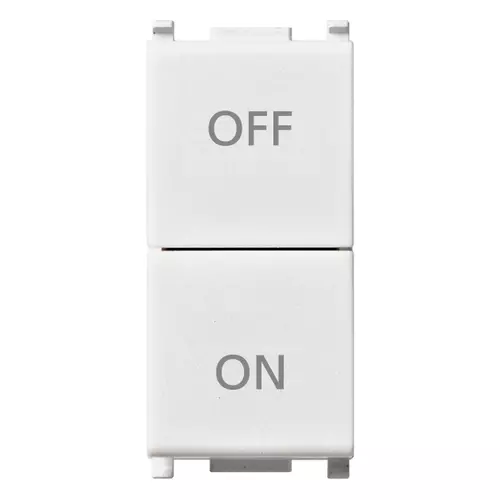

Two independent 1P NO+NC10A pushes white
Two independent push buttons, 1P NO + 1P NC 10 A 250 V~, ON and OFF symbols, white

Product Status
3 - Active

Drawings

view encumbered art. 14058
PNG DXF
rear view art. 14058
PNG DXF
3D view art. 14058
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
38,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352117297
1 NR
4.1x2.8x5.3 [cm]
32.8 [g]
Barcode Qty 20 NR
8007352117303
20 NR
21.4x11.6x6 [cm]
712.4 [g]
Barcode Qty 200 NR
8007352642072
200 NR
30.5x25.5x22.5 [cm]
7,460 [g]
