Switched connection unit 13A white - 14049

Pdf
Vimar - 14049 - Switched connection unit 13A white
Vimar - 14049 - Switched connection unit 13A white

14049
Wiring devices / Traditional wiring devices / PLANA / Devices

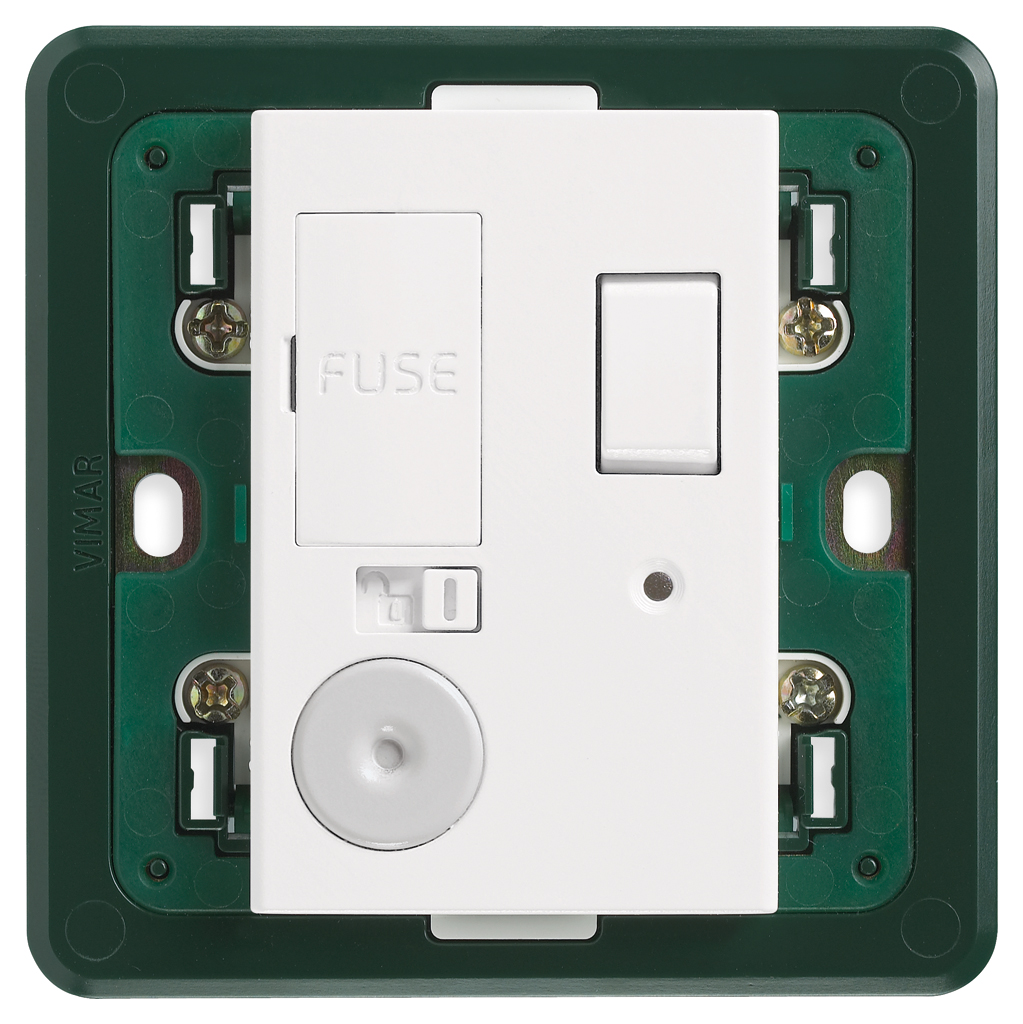

Switched connection unit 13A white
Connection unit 13 A 250 V~ with 2P 1-way switch, cable output, protection fuse, with built-in frame for square British boxes, to complete with 3-module British standard cover plates, white

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

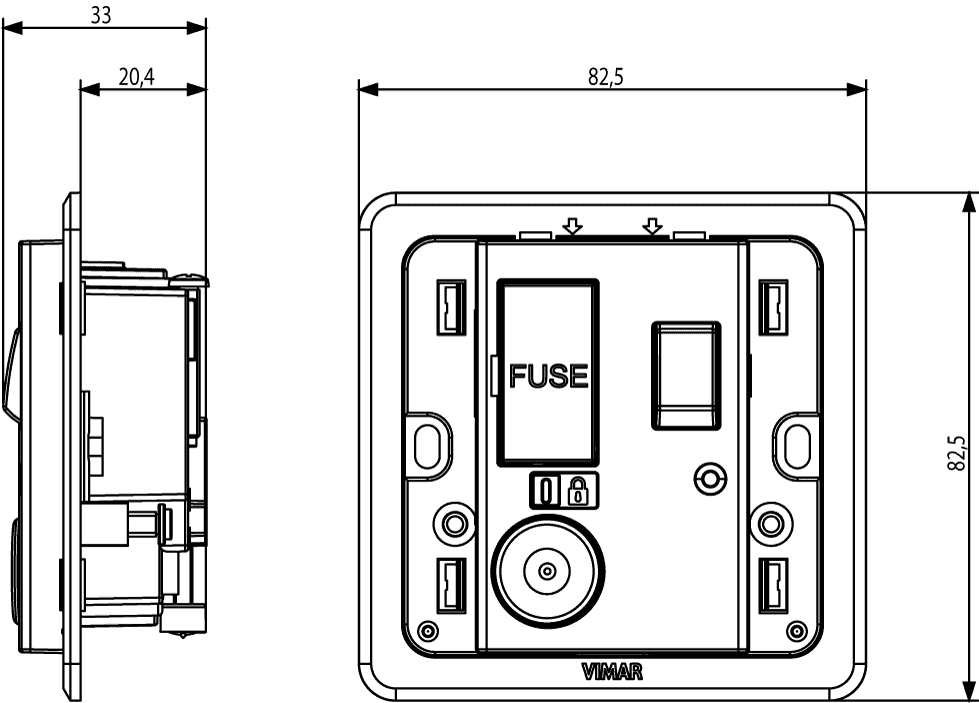

view encumbered art. 14049
PNG DXF

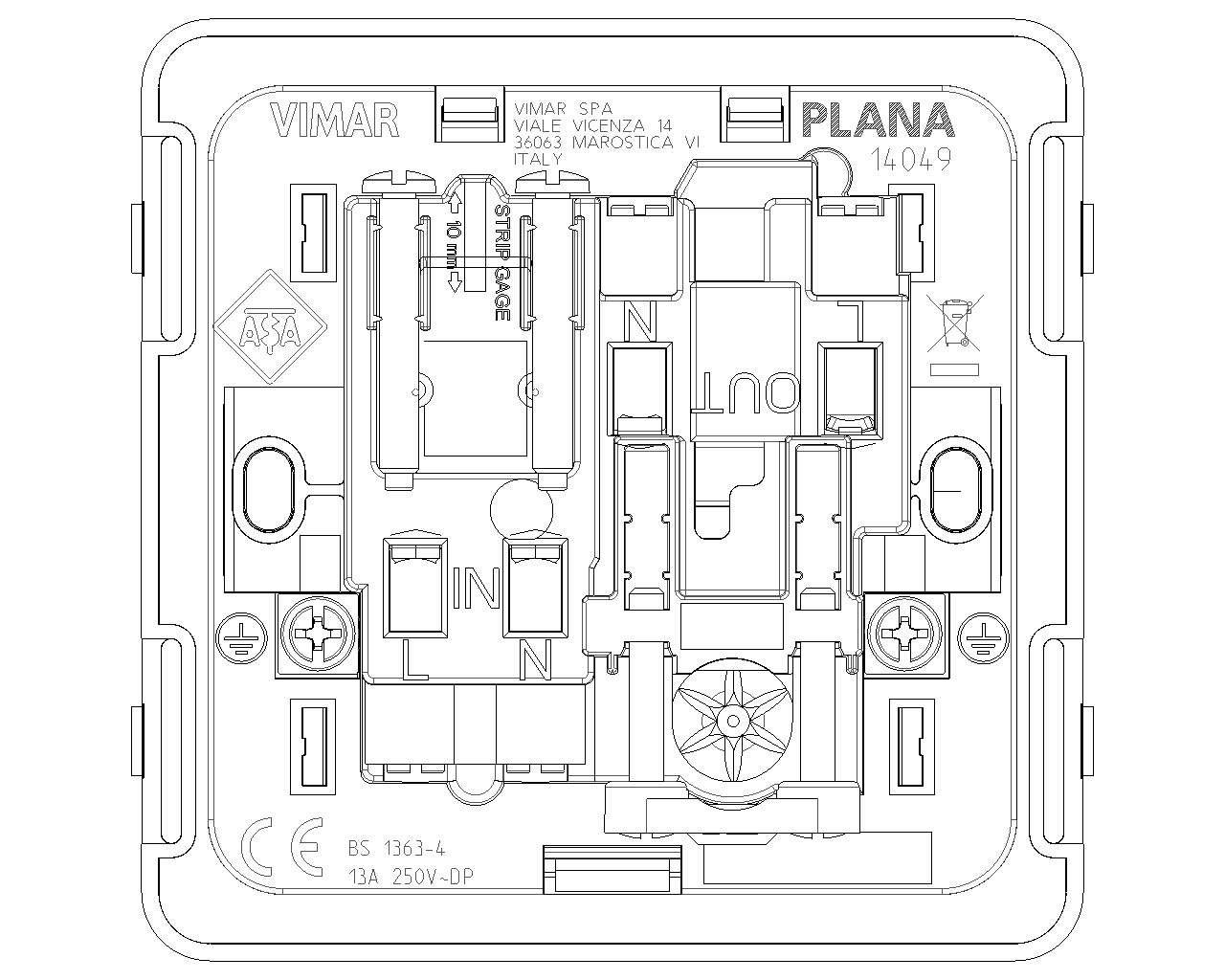

rear view art. 14049
PNG DXF

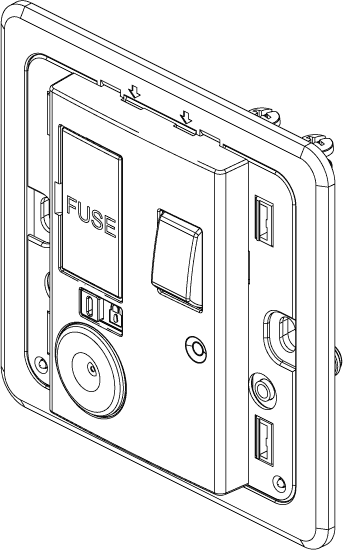

3D view art. 14049
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
5
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Illumination
Optional
Function lighting
Illuminated (on)
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
13,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
82,50 mm
Device height
82,50 mm
Device depth
33,00 mm
Built-in depth
20,40 mm

00. CE Marking - EU

08. ASTA - UK

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352406544
1 NR
8.5x3.9x8.6 [cm]
106.7 [g]
Barcode Qty 10 NR
8007352406551
10 NR
20.7x18.5x9.6 [cm]
1,166 [g]
