Button 2M +diffuser white - 14027

Pdf
Vimar - 14027 - Button 2M +diffuser white
Vimar - 14027 - Button 2M +diffuser white

14027
Wiring devices / Traditional wiring devices / PLANA / Buttons

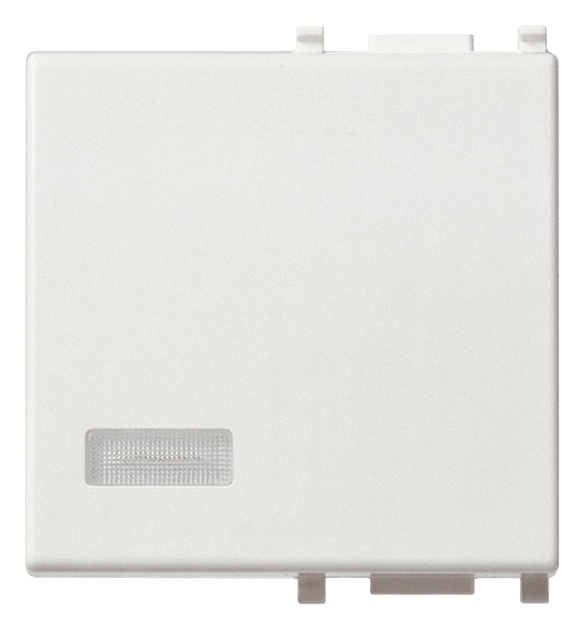

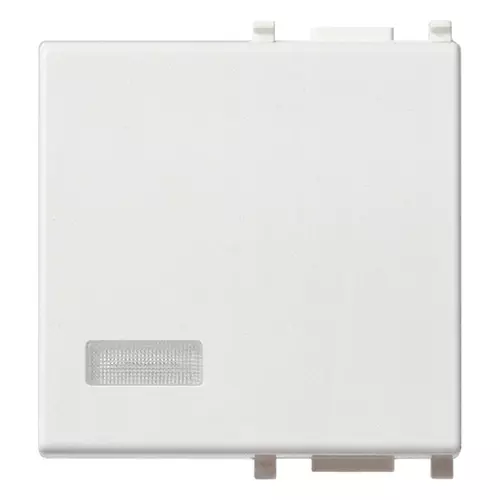

Button 2M +diffuser white
Interchangeable 2-module button, with lightable diffuser, white

Product Status
3 - Active

Drawings

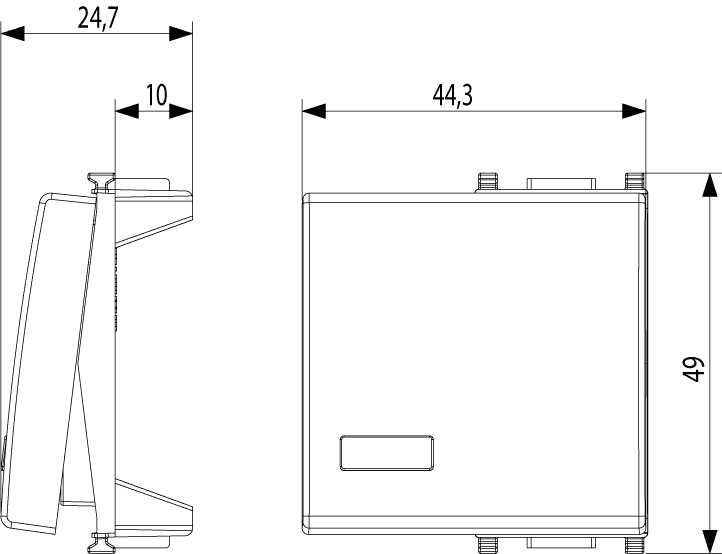

view encumbered art. 14027
PNG DXF

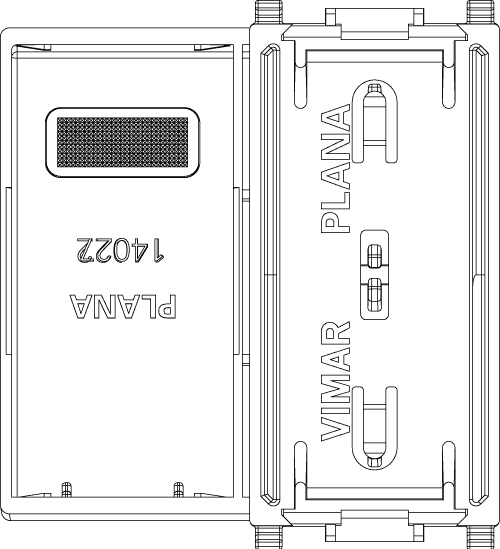

rear view art. 14027
PNG DXF

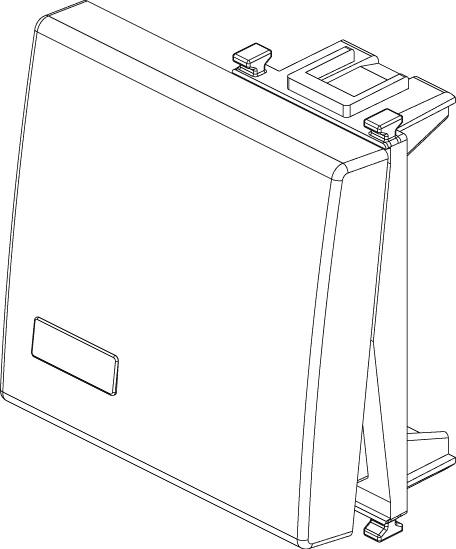

3D view art. 14027
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
None
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
1.470,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352112735
1 NR
4.43x4.9x2.47 [cm]
10.2 [g]
Barcode Qty 2 NR
8007352112742
2 NR
5.1x2.8x5.3 [cm]
24.47 [g]
Barcode Qty 20 NR
8007352112759
20 NR
14.4x11.6x6 [cm]
288.13 [g]
Barcode Qty 240 NR
8007352634329
240 NR
36.5x32.5x13 [cm]
3,458.4 [g]
