Button 3M lightable ring pilot white - 14023

Pdf
Vimar - 14023 - Button 3M lightable ring pilot white
Vimar - 14023 - Button 3M lightable ring pilot white

14023
Wiring devices / Traditional wiring devices / PLANA / Buttons

Button 3M lightable ring pilot white
Interchangeable 3-module button, with lightable ring pilot lamp, white

Product Status
3 - Active

Drawings

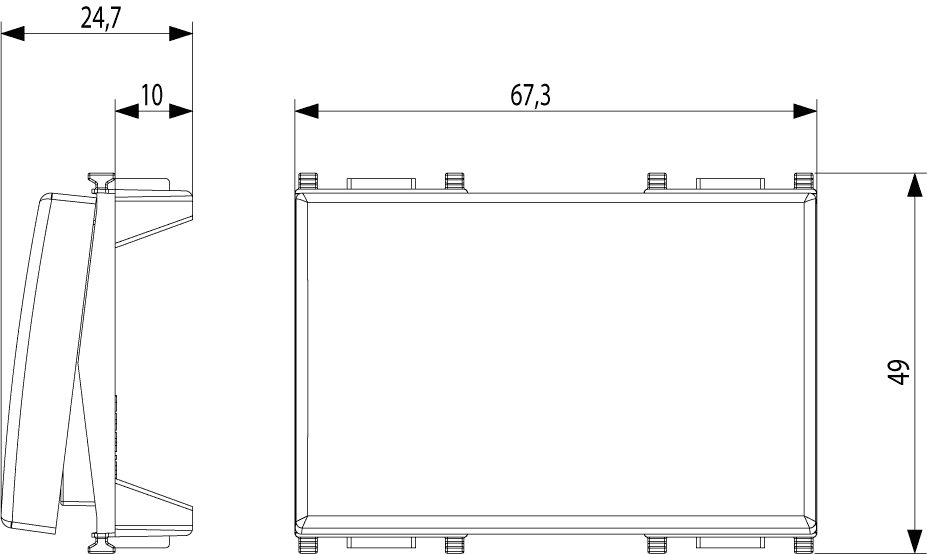

view encumbered art. 14023
PNG DXF

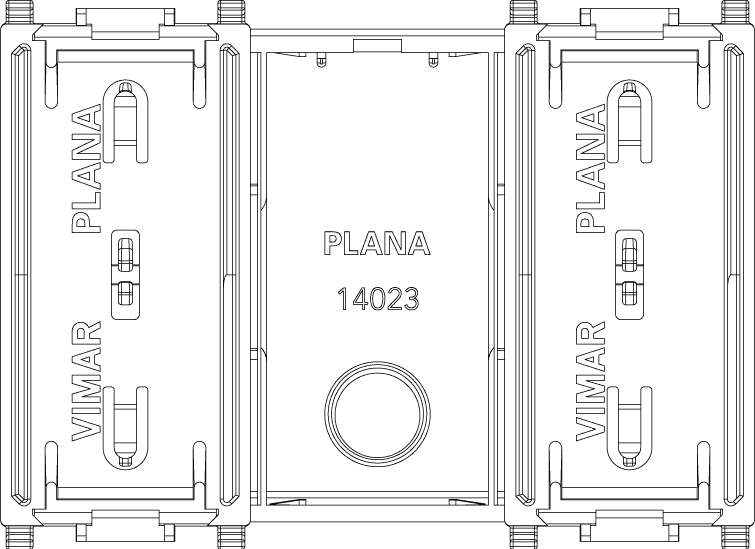

rear view art. 14023
PNG DXF

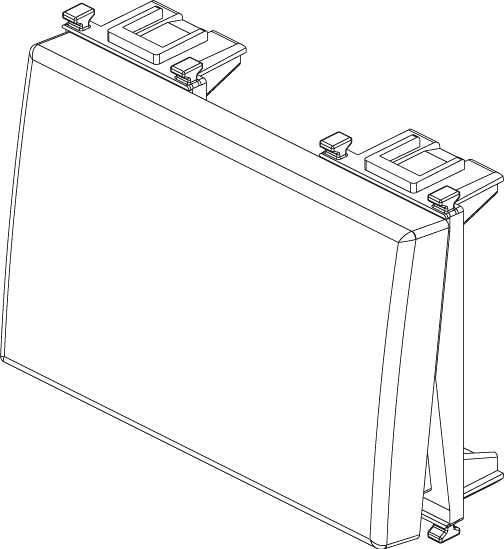

3D view art. 14023
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
None
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
1.430,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352112551
1 NR
6.73x4.9x2.47 [cm]
17.4 [g]
Barcode Qty 2 NR
8007352112568
2 NR
5.3x3.9x7.6 [cm]
40.6 [g]
Barcode Qty 10 NR
8007352112575
10 NR
20.6x8.5x6 [cm]
251.27 [g]
