Button 2M lightable ring pilot white - 14022

14022
Wiring devices / Traditional wiring devices / PLANA / Buttons

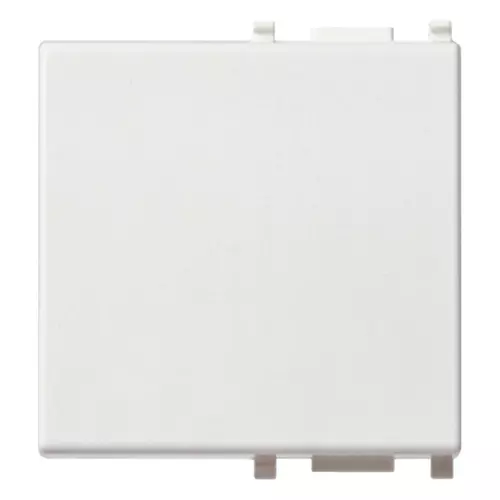

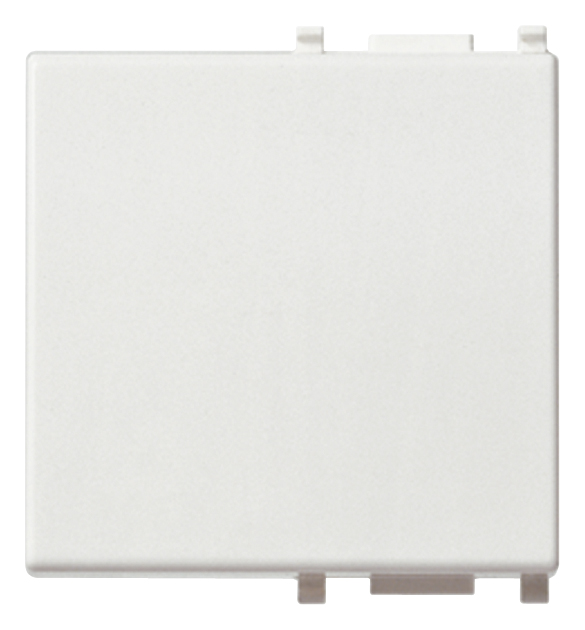

Button 2M lightable ring pilot white
Interchangeable 2-module button, with lightable ring pilot lamp, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

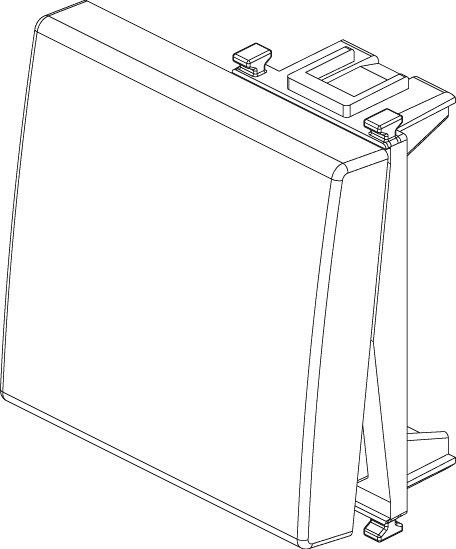

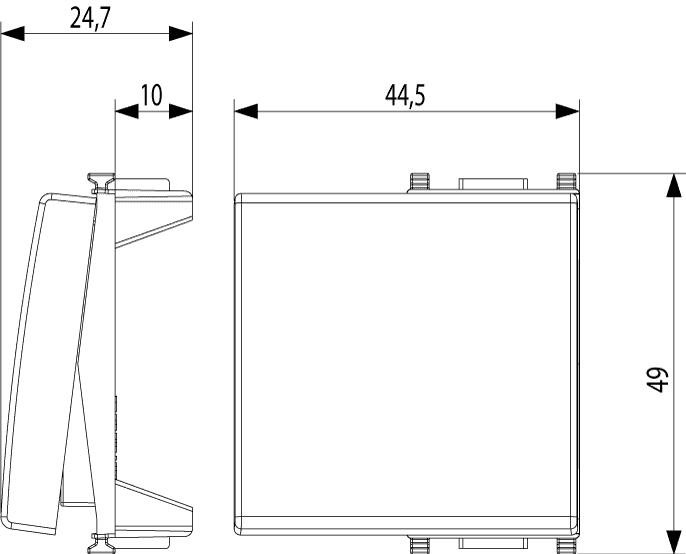

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Control element/cover plate for domestic switching devices

Model
One-part rocker

Imprint/indication
None

Utilization
Switch/push button

Suitable for touch sensor connector for bus system
No

Type of fastening
Clamp mounting

Monitoring window/light outlet
Yes

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

With label area
No

With exchangeable lens/symbol
No

Suitable for degree of protection (IP)
IP40

Depth
1.470,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 20 NR

---

Barcode

8007352112407

1 NR

4.9x4.5x2.5 [cm]

10.4 [g]

8007352112414

2 NR

5.1x2.8x5.3 [cm]

24.87 [g]

8007352112421

20 NR

14.4x11.6x6 [cm]

290.47 [g]

8007352626041

240 NR

36.5x33x13.5 [cm]

3,905 [g]
