2P 32A 1-way switch white - 14020

Pdf
Vimar - 14020 - 2P 32A 1-way switch white
Vimar - 14020 - 2P 32A 1-way switch white

14020
Wiring devices / Traditional wiring devices / PLANA / Devices

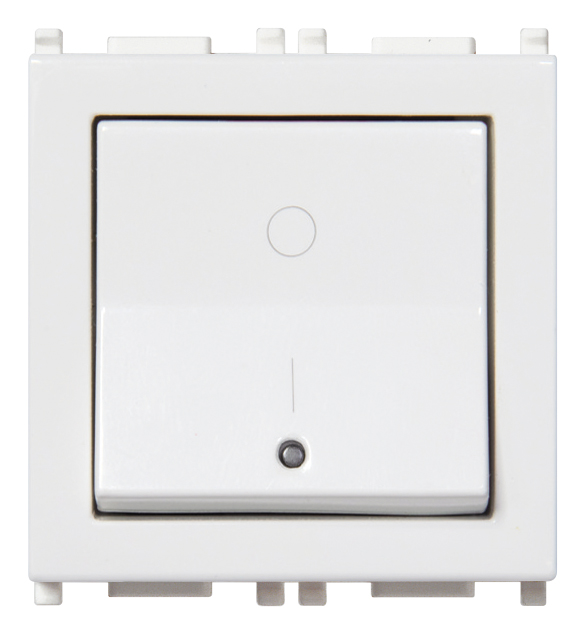

2P 32A 1-way switch white

Product Status
3 - Active

Drawings

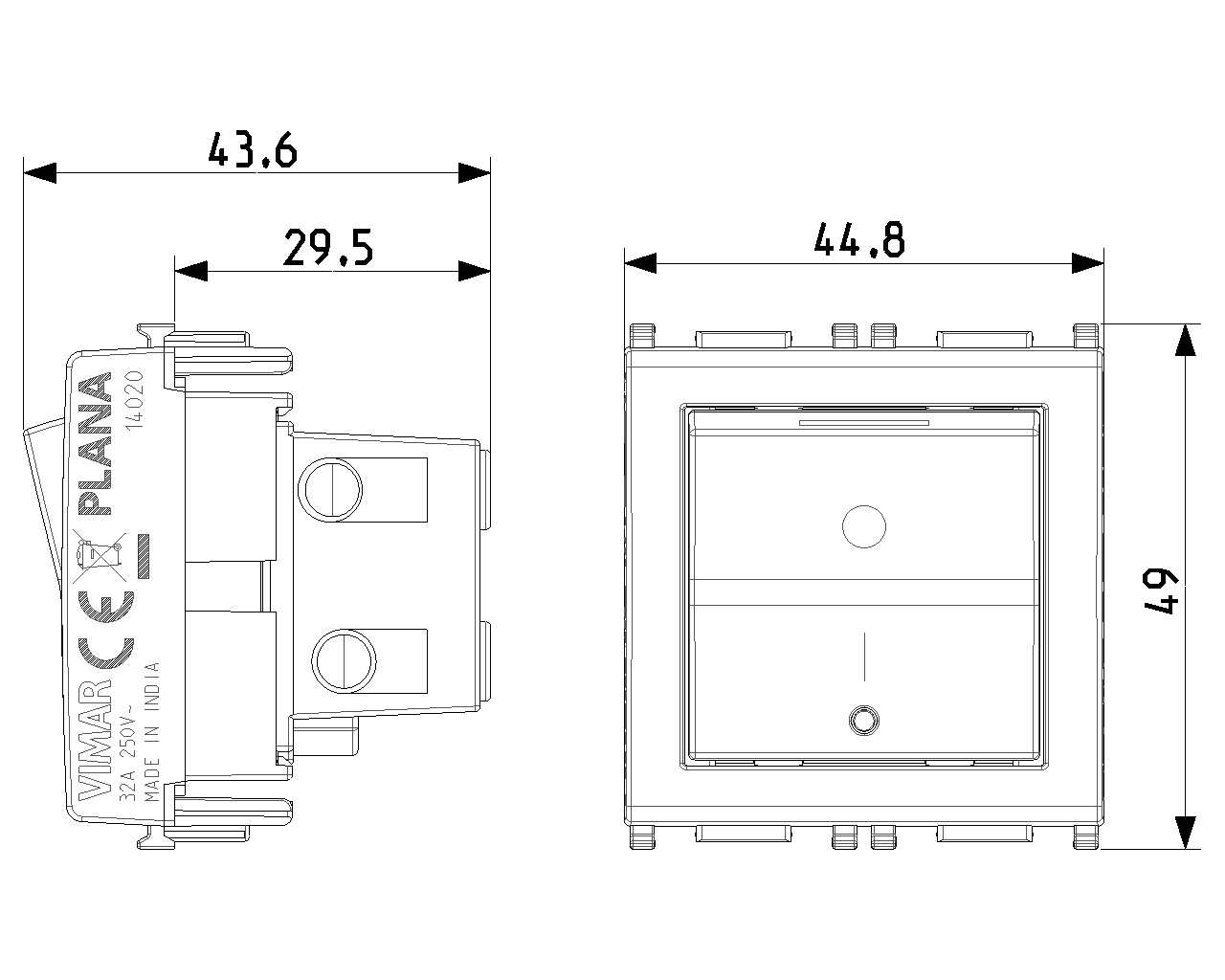

view encumbered art. 14020
PNG DXF

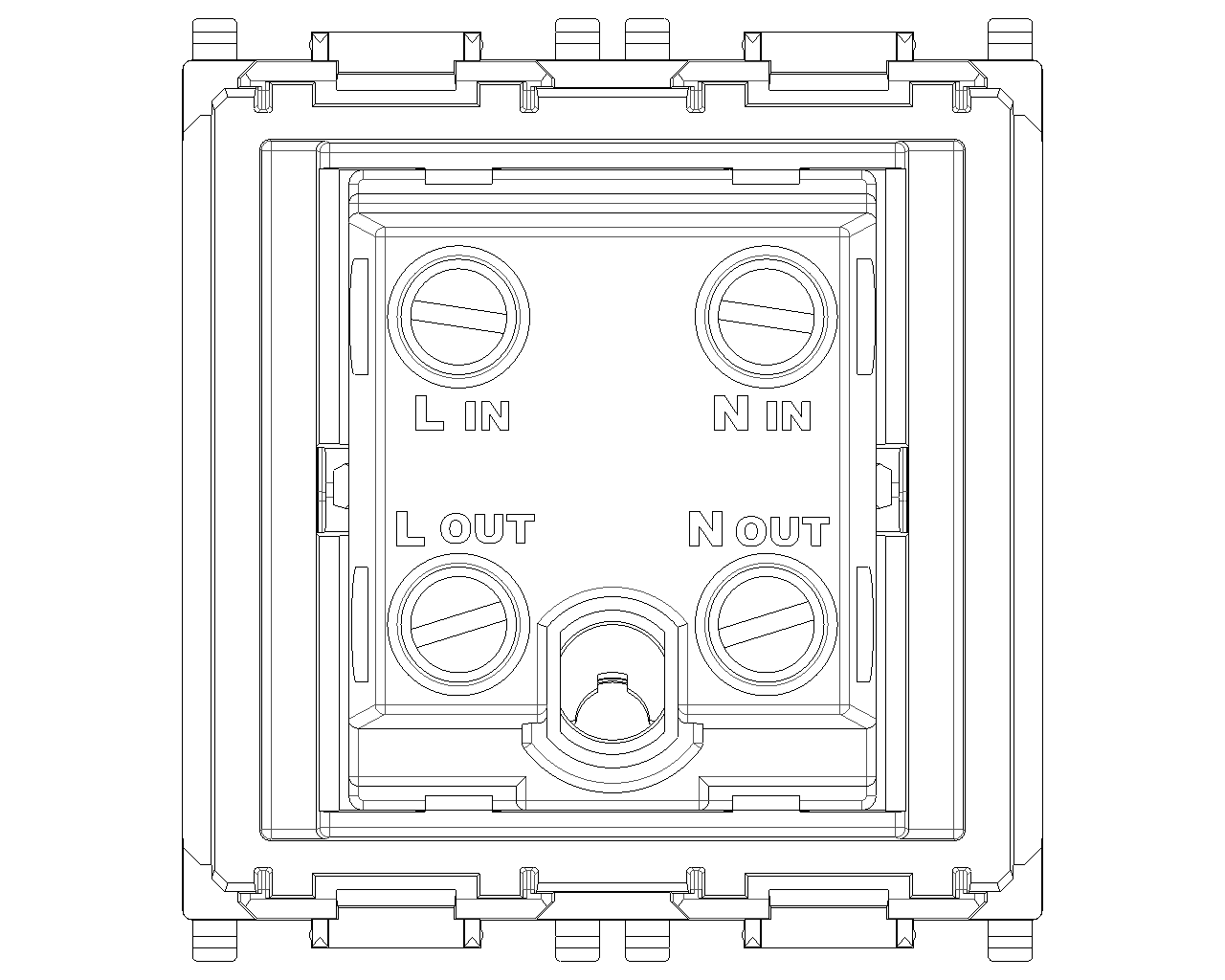

rear view art. 14020
PNG DXF

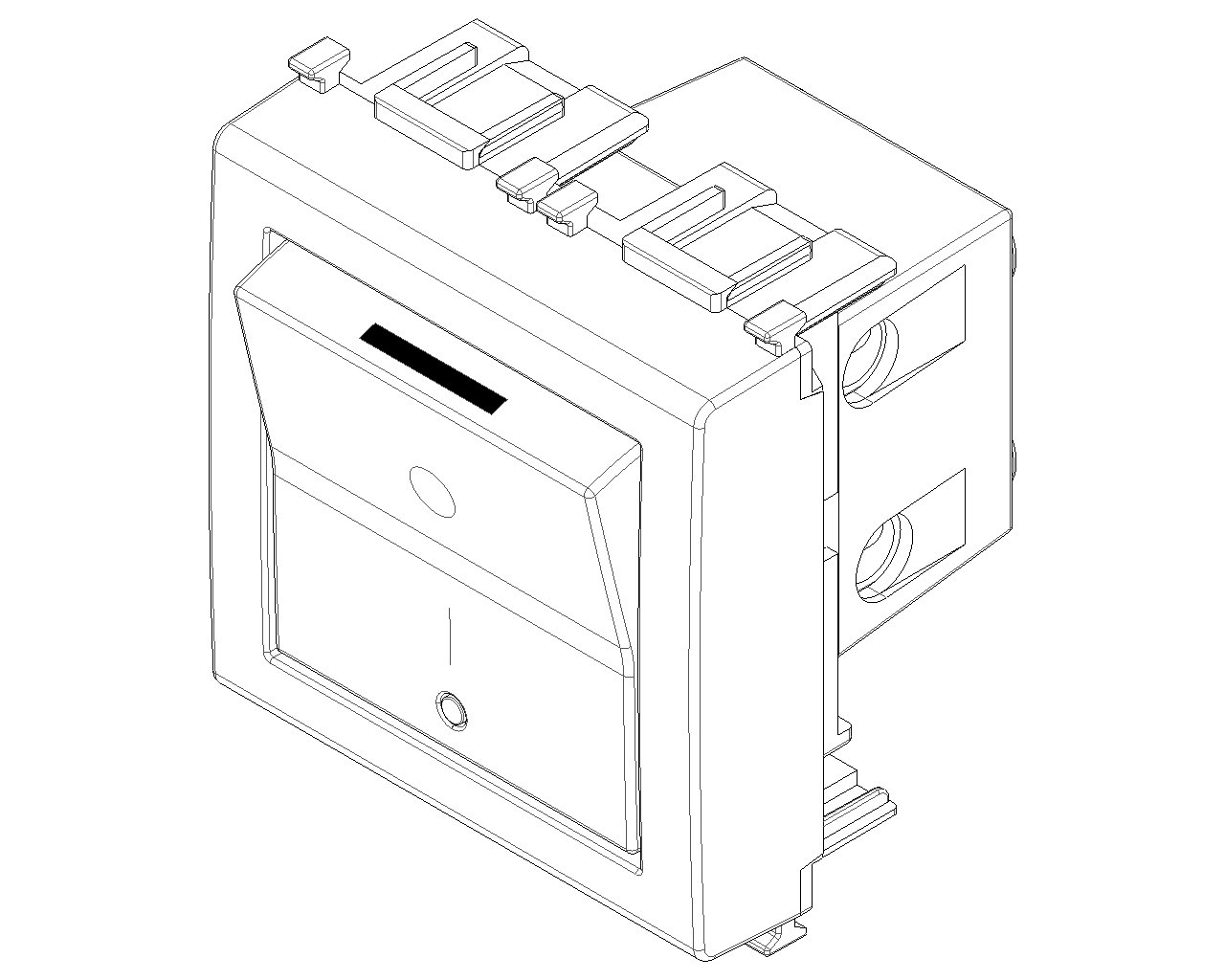

3D view art. 14020
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Illumination
Yes
Function lighting
Other
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
32,00 A
Switching current for fluorescent lamps
0
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
Yes
Washing machine switch
Yes
Device width
44,80 mm
Device height
49,00 mm
Device depth
43,60 mm
Built-in depth
29,50 mm
Min. depth of built-in installation box
35,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352703209
1 NR
5.1x4.3x5.3 [cm]
51.26 [g]
Barcode Qty 10 NR
8007352703216
10 NR
26.9x11.6x4.9 [cm]
586.75 [g]
Barcode Qty 200 NR
8007352703223
200 NR
47.5x27x29 [cm]
12,420 [g]
