2P 45A 1-way switch 5M Silver - 14019.SL

Pdf
Vimar - 14019.SL - 2P 45A 1-way switch 5M Silver
Vimar - 14019.SL - 2P 45A 1-way switch 5M Silver

14019.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

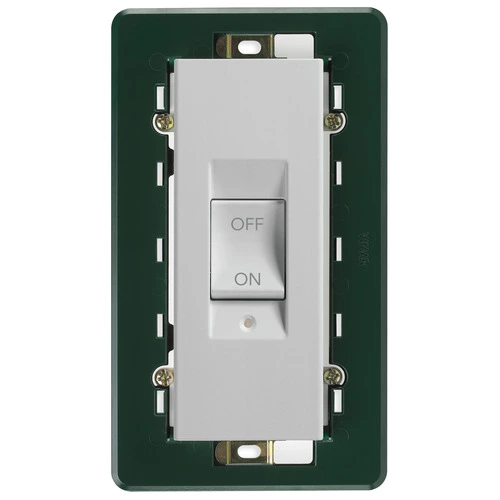

2P 45A 1-way switch 5M Silver
2P 45 A 250 V~ 1-way switch, lightable, with built-in frame for British standard boxes, to complete with 5-module British standard cover plates, Silver. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 14019.SL
PNG DXF
rear view art. 14019.SL
PNG DXF
3D view art. 14019.SL
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
5
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
45,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
82,50 mm
Device height
144,00 mm
Device depth
33,00 mm
Built-in depth
22,50 mm

00. CE Marking - EU

08. ASTA - UK

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352406520
1 NR
8.5x3.5x15 [cm]
144.4 [g]
Barcode Qty 5 NR
8007352406537
5 NR
17.5x16.3x9.8 [cm]
801.4 [g]
