2P 32A 1-way switch WATER/HEATER Silver - 14017.WH.SL

Pdf
Vimar - 14017.WH.SL - 2P 32A 1-way switch WATER/HEATER Silver
Vimar - 14017.WH.SL - 2P 32A 1-way switch WATER/HEATER Silver

14017.WH.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

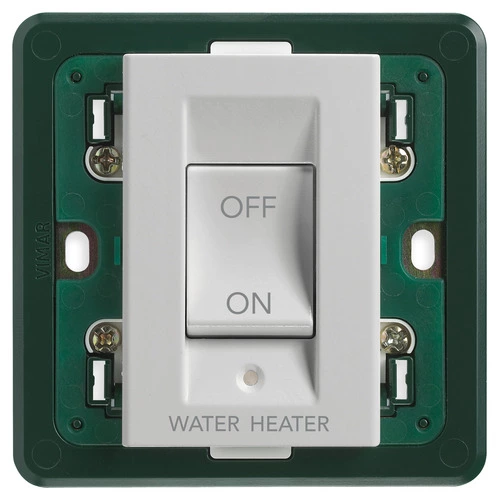

2P 32A 1-way switch WATER/HEATER Silver
2P 32 A 250 V~ 1-way switch, lightable, WATER/HEATER symbol, with built-in frame for British standard square boxes, to complete with British standard cover plates, Silver. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 14017.WH.SL
PNG DXF
rear view art. 14017.WH.SL
PNG DXF
3D view art. 14017.WH.SL
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
3
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
32,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
82,50 mm
Device height
82,50 mm
Device depth
32,50 mm
Built-in depth
22,50 mm

00. CE Marking - EU

08. ASTA - UK

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352406360
1 NR
8.5x3.9x8.6 [cm]
115.9 [g]
Barcode Qty 10 NR
8007352406377
10 NR
20.7x18.5x9.6 [cm]
1,254 [g]
