2P 20AX 1-way switch 2M Silver - 14016.2.SL

Pdf
Vimar - 14016.2.SL - 2P 20AX 1-way switch 2M Silver
Vimar - 14016.2.SL - 2P 20AX 1-way switch 2M Silver

14016.2.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

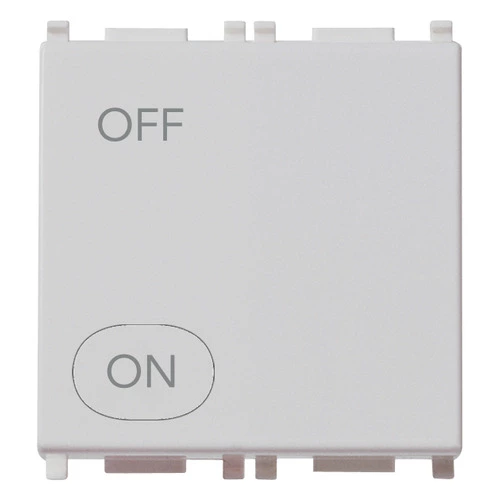

2P 20AX 1-way switch 2M Silver
2P 20 AX 250 V~ 1-way switch, lightable, replaceable button, Silver - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 14016.2.SL
PNG DXF
rear view art. 14016.2.SL
PNG DXF
3D view art. 14016.2.SL
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
44,80 mm
Device height
49,00 mm
Device depth
38,70 mm
Built-in depth
24,00 mm

00. CE Marking - EU

01. IMQ - Italy

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352404786
1 NR
5.1x4.3x5.3 [cm]
44.4 [g]
Barcode Qty 20 NR
8007352404793
20 NR
26.9x11.6x9 [cm]
963 [g]
