1P 10AX 1-way switch white - 14000

Pdf

Vimar - 14000 - 1P 10AX 1-way switch white

14000
Wiring devices / Traditional wiring devices / PLANA / Devices

1P 10AX 1-way switch white
1P 10 AX 250 V~ 1-way switch, lightable, replaceable button, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

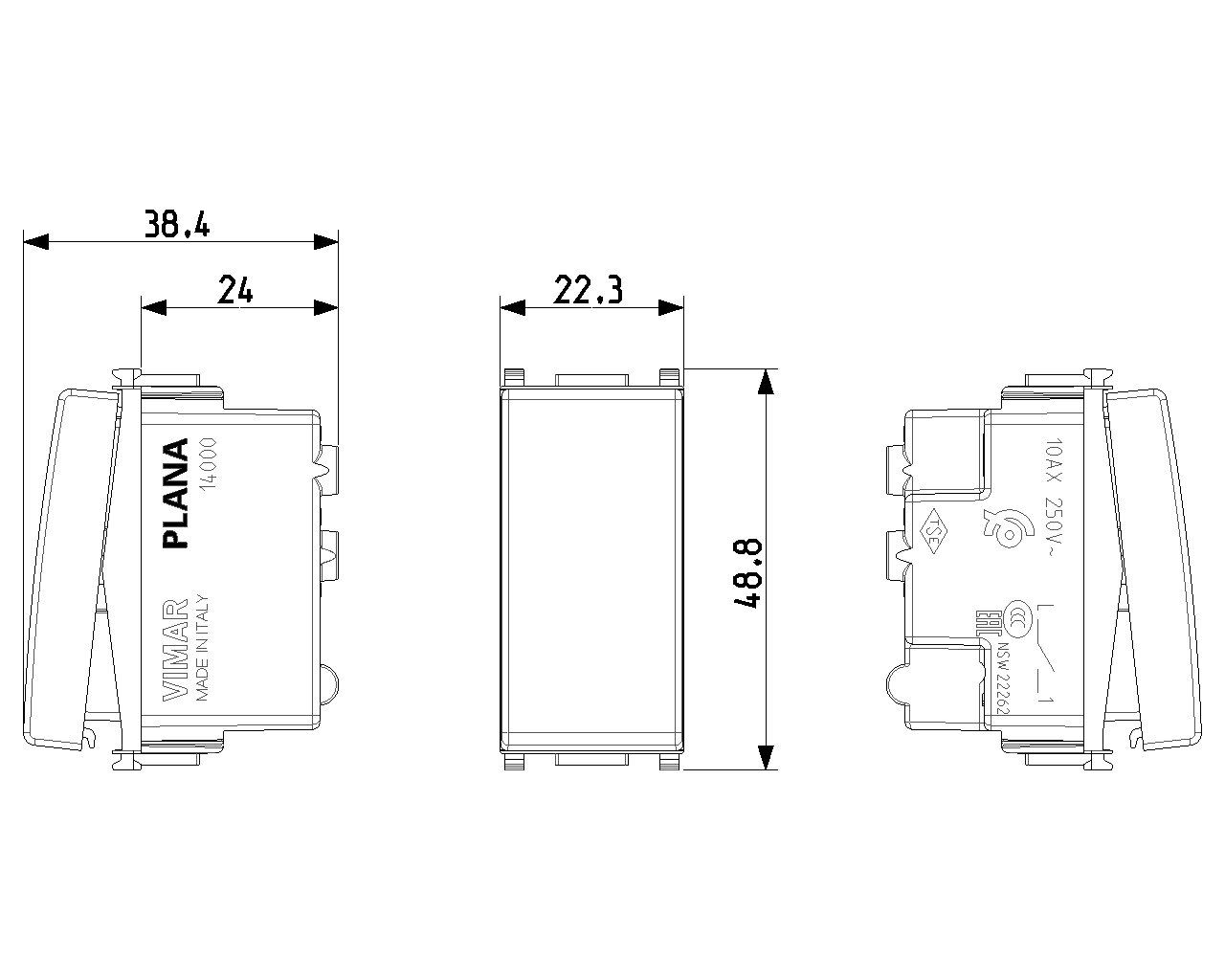

view encumbered art. 14000

PNG DXF

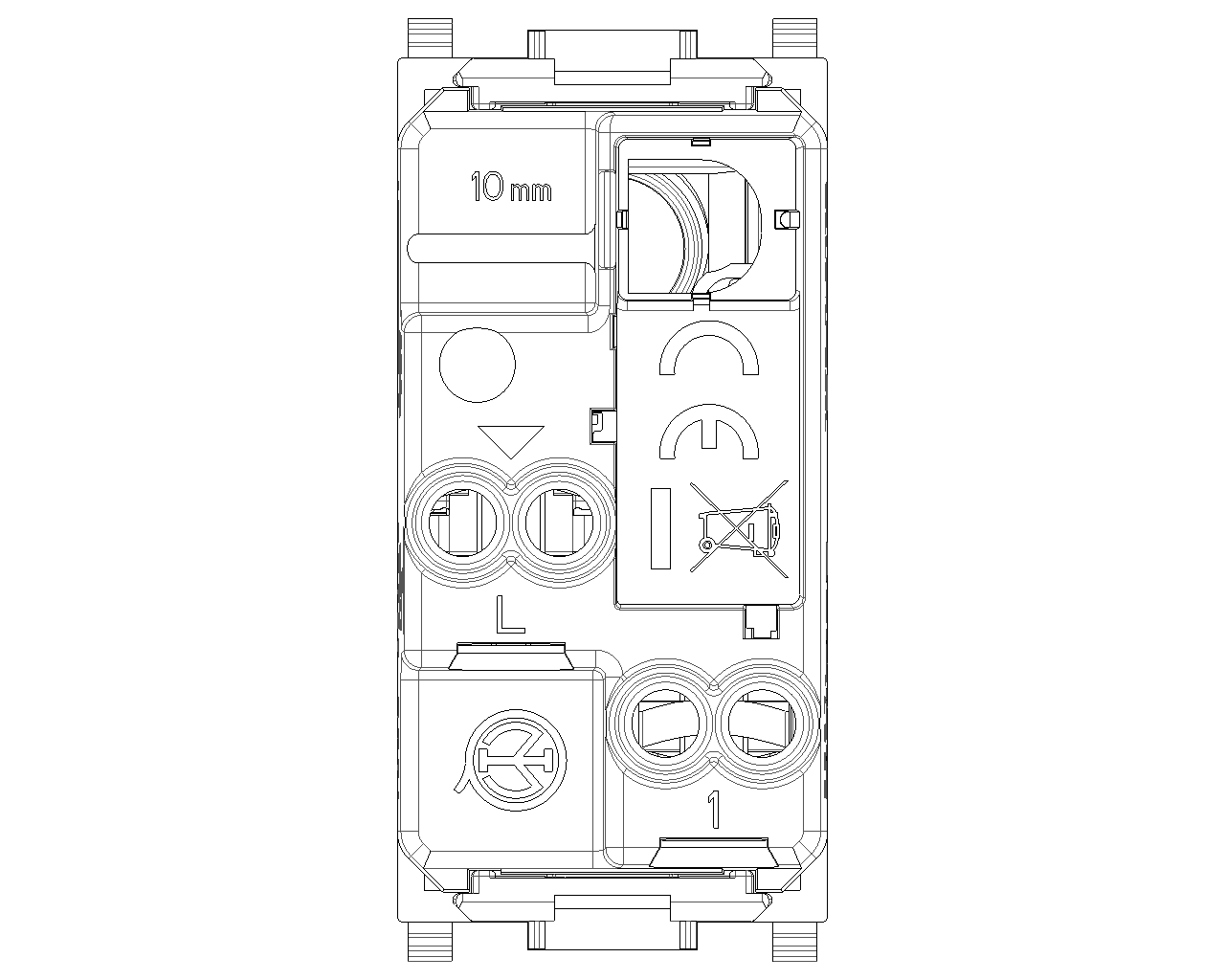

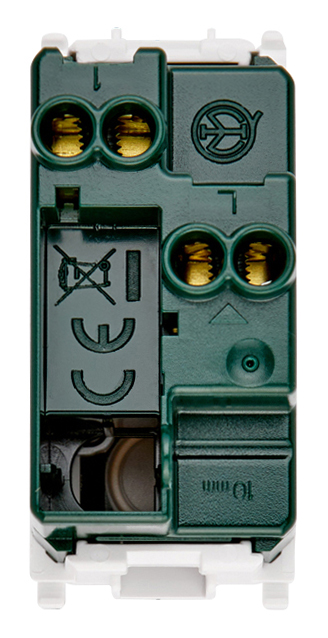

rear view art. 14000

PNG DXF

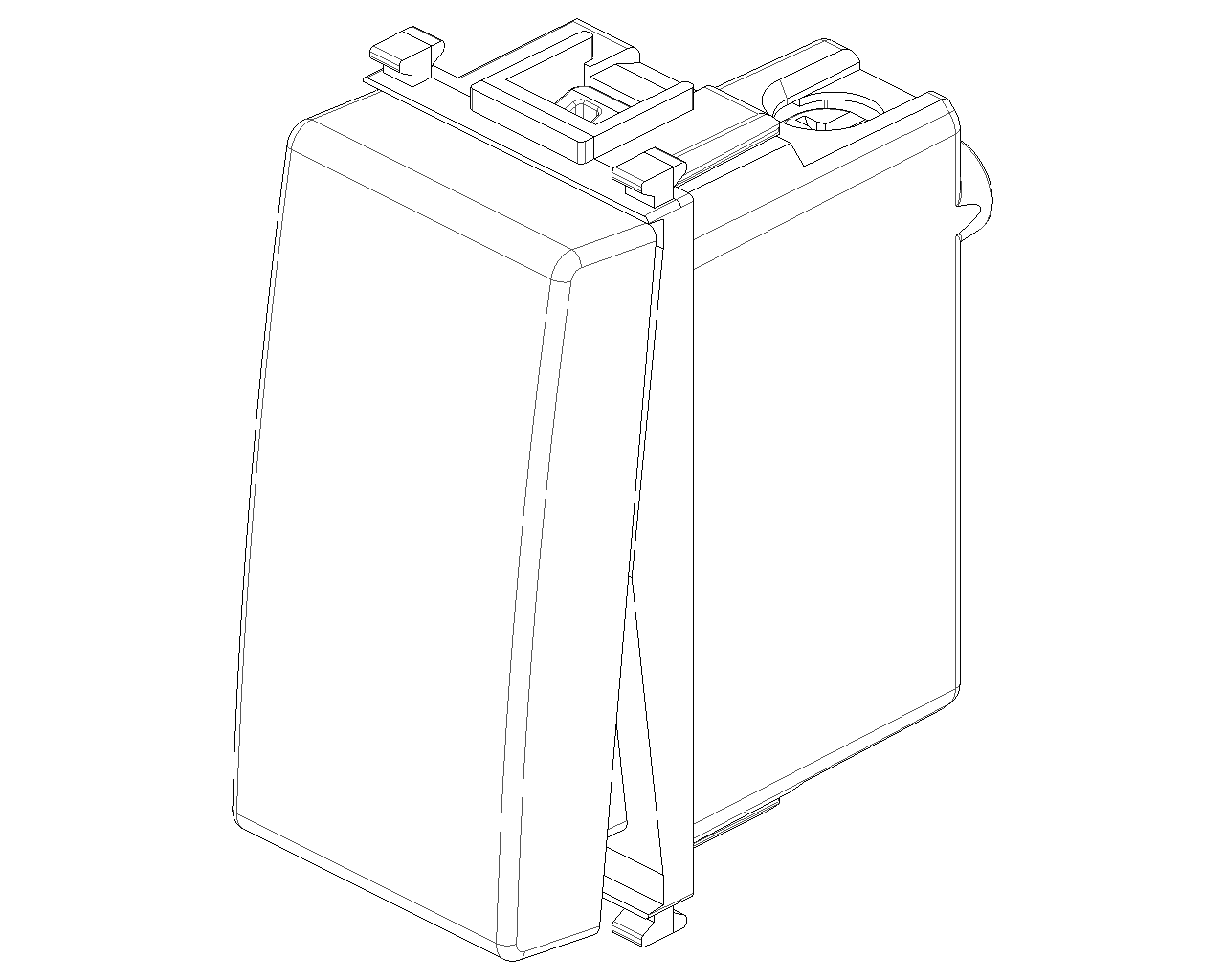

3D view art. 14000

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Off switch 1-pole

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
10,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
49,00 mm

Device depth
38,40 mm

Built-in depth
24,00 mm

00. CE Marking - EU

01. IMQ - Italy

07. INGCER - Chile

13. SNI-MGI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

50. Product Environm. Profile

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352106307

1 NR

4.1x2.8x5.3 [cm]

25 [g]

8007352106314

50 NR

21.6x11.6x14.3 [cm]

1,348 [g]

8007352263116

500 NR

57.5x22.5x30 [cm]

13,960 [g]

8007352750258

10,500 NR

120x80x105 [cm]

293,160 [g]
