IP40 enclosure - 4M Idea/sp.M 8000 grey - 13045

Pdf

13045
System infrastructure / Enclosures and control units / Protected&watertight series / IDEA/8000-watertight&protected

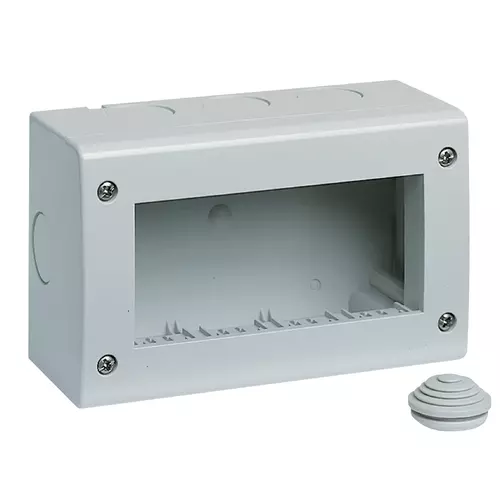

IP40 enclosure - 4M Idea/sp.M 8000 grey
IP40 surface enclosure for 4 Idea modules or 4 8000 special modules, RAL 7035 grey. Provided with 4 adaptors 08491 for 8000 standard module

Product Status
3 - Active

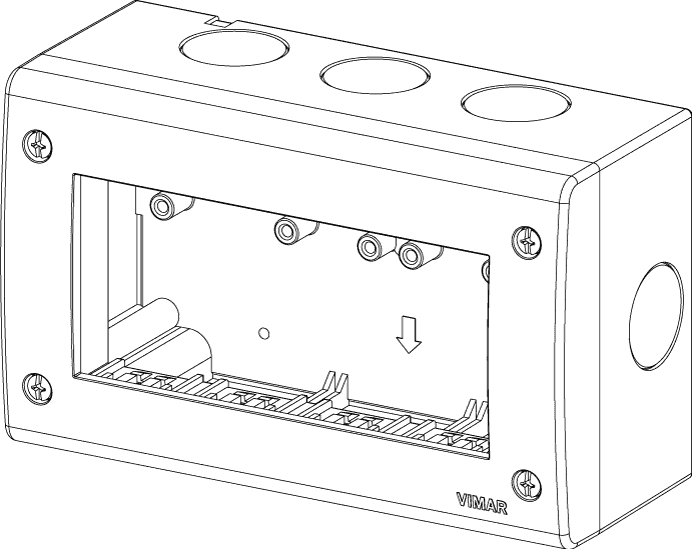

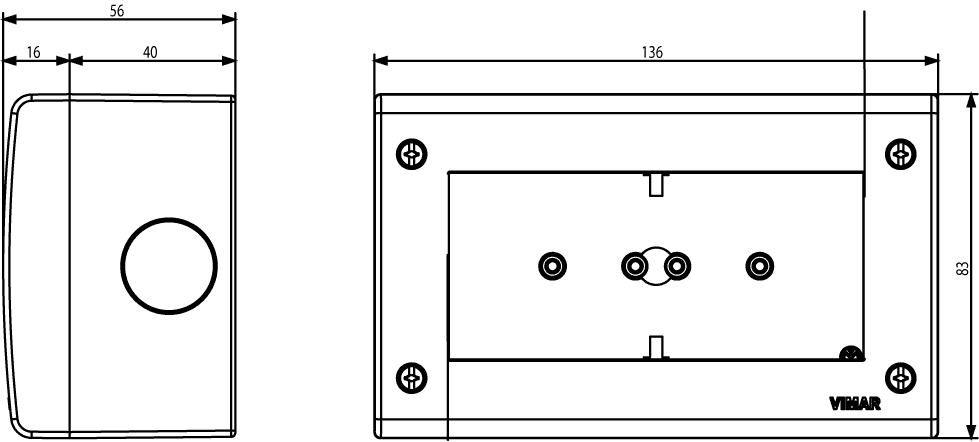

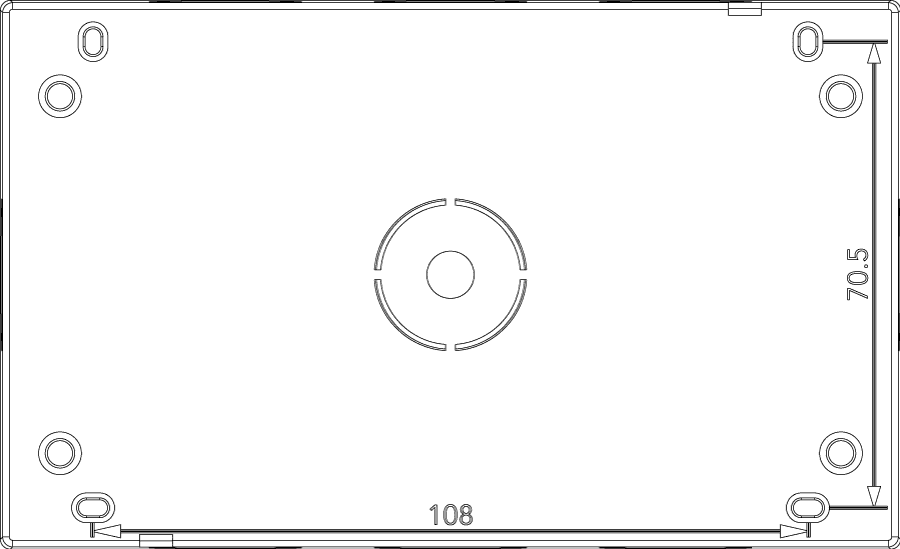

Drawings

Class group
Connection material (electrotechnical)
Class
Equipment carrier for insulated walls
Material
Plastic
Mounting surfaces
Other
With full insulating materials
Yes
Minimum order quantity: 40 NR

Barcode

Barcode Qty 1 NR
8007352091559
1 NR
13.6x8.3x5.6 [cm]
122.6 [g]
Barcode Qty 40 NR
8007352115927
40 NR
38.5x29x30 [cm]
5,421.33 [g]
