2P+E 16A P30 outlet+1M box 3M - 10765

Pdf
Vimar - 10765 - 2P+E 16A P30 outlet+1M box 3M
Vimar - 10765 - 2P+E 16A P30 outlet+1M box 3M

10765
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

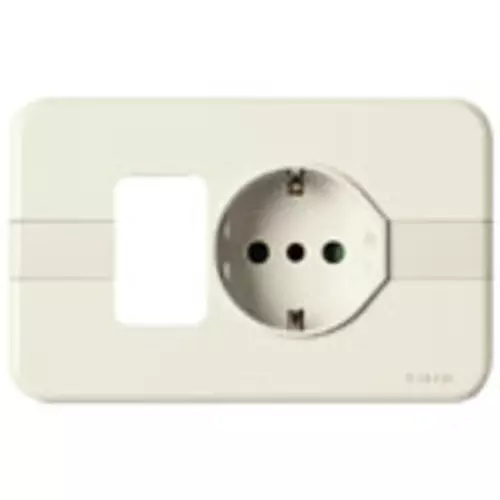

2P+E 16A P30 outlet+1M box 3M
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts) + 1-gang - provided with resin self-bearing cover plate, ivory, for 3-module flush mounting boxes and screw covering strips 10798.01

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Number of units
3
Number of modules (module system)
3
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Device height
76,00 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352064706
1 NR
12x7.6x3.5 [cm]
67.07 [g]
Barcode Qty 10 NR
8007352064737
10 NR
25x18.9x8.4 [cm]
777.53 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
