Self-bearing plate 1M box 3M - 10735

Pdf
Vimar - 10735 - Self-bearing plate 1M box 3M
Vimar - 10735 - Self-bearing plate 1M box 3M

10735
Wiring devices / Traditional wiring devices / LINEA Classica / Cover plates

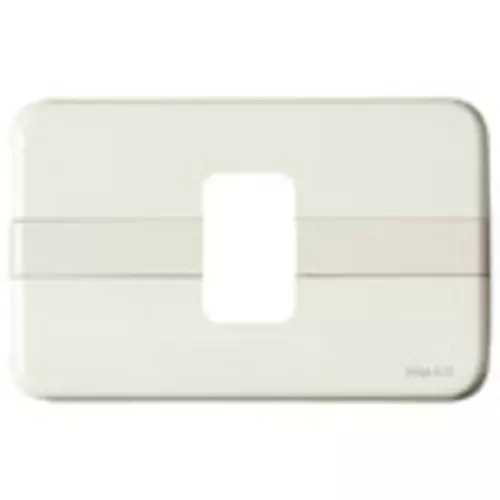

Self-bearing plate 1M box 3M
1-module self-bearing cover plate, resin, with screws, for 3-module flush mounting boxes, ivory. Provided with screw covering strips 10796.01

Product Status
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
76,00 mm
Built-in width
120,00 mm
Built-in height
76,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352044067
1 NR
12x7.8x2 [cm]
31.4 [g]
Barcode Qty 20 NR
8007352001930
20 NR
25x18.9x8.4 [cm]
741.4 [g]
Barcode Qty 280 NR
8007352335547
280 NR
59.5x38.5x26.5 [cm]
11,212.67 [g]
