1P 10A 2-way push button - 10280

Pdf
Vimar - 10280 - 1P 10A 2-way push button
Vimar - 10280 - 1P 10A 2-way push button

10280
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

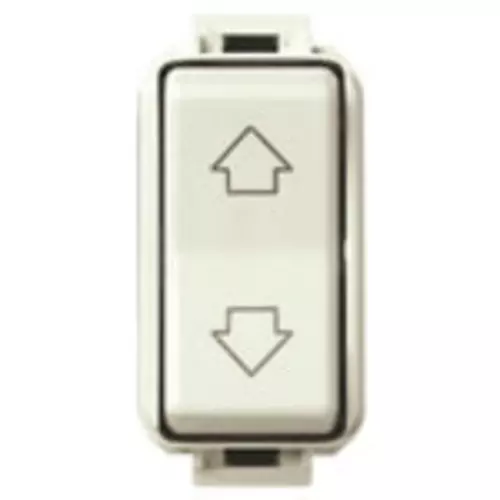

1P 10A 2-way push button
1P 10 A 250 V~ 2-way push button (3 terminals) with directional arrows and central OFF position

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Method of operation
Push button
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Device width
22,00 mm
Device height
36,00 mm
Device depth
43,50 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352005129
1 NR
5.1x2.8x5.3 [cm]
28.13 [g]
Barcode Qty 20 NR
8007352115446
20 NR
27x11.6x6 [cm]
637.2 [g]
