2P 15A USA+EU outlet - ø4,8mm - 10192

Pdf
Vimar - 10192 - 2P 15A USA+EU outlet - ø4,8mm
Vimar - 10192 - 2P 15A USA+EU outlet - ø4,8mm

10192
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

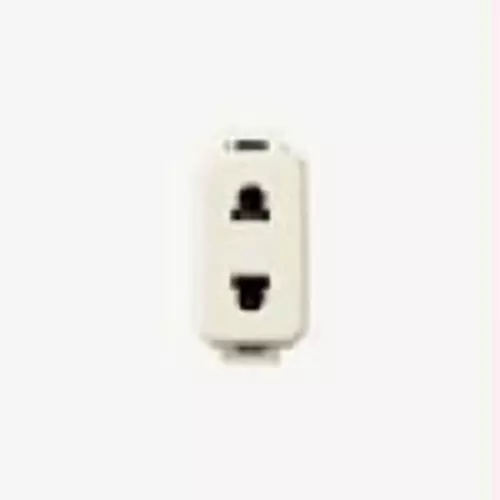

2P 15A USA+EU outlet - ø4,8mm
2P 15 A 250 V~ socket outlet, Euro-American standard (for plugs with parallel flat pins and ø 4,8 mm pins)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Device width
22,00 mm
Device height
36,00 mm
Device depth
32,50 mm

37. Marking - Morocco

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352020337
1 NR
4.1x2.8x5.3 [cm]
20.93 [g]
Barcode Qty 50 NR
8007352019102
50 NR
21.4x11.6x14.2 [cm]
1,133.73 [g]
Barcode Qty 500 NR
8007352335615
500 NR
57.5x22.5x30 [cm]
11,818 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
