2P+E 15A USA+EU outlet - ø4mm - 10191

Pdf
Vimar - 10191 - 2P+E 15A USA+EU outlet - ø4mm
Vimar - 10191 - 2P+E 15A USA+EU outlet - ø4mm

10191
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

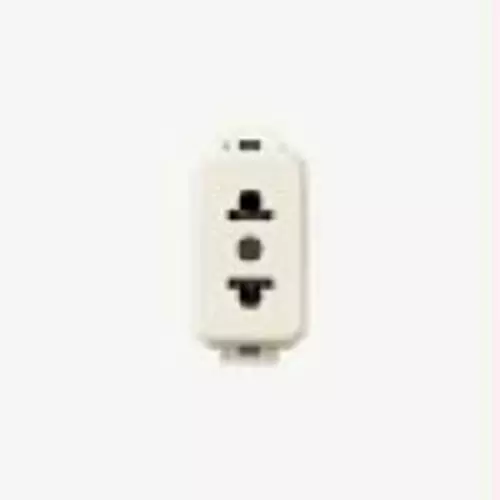

2P+E 15A USA+EU outlet - ø4mm
2P+E 15 A 250 V~ socket outlet, polarised Euro-American standard (for plugs with parallel and in-line flat pins and ø 4 mm pins)

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Socket outlet
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Device width
22,00 mm
Device height
36,00 mm
Device depth
32,50 mm

37. Marking - Morocco

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352086234
1 NR
4.1x2.8x5.3 [cm]
27.93 [g]
Barcode Qty 50 NR
8007352086241
50 NR
21.4x11.6x14.2 [cm]
1,494.53 [g]
