2P+E 10A P11 outlet - 10140

Pdf
Vimar - 10140 - 2P+E 10A P11 outlet
Vimar - 10140 - 2P+E 10A P11 outlet

10140
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

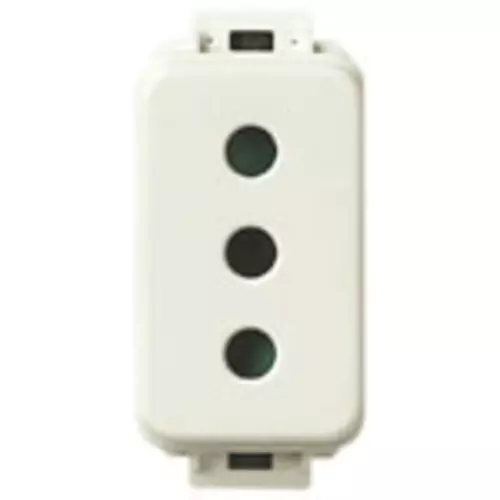

2P+E 10A P11 outlet
2P+E 10 A 250 V~ SICURY socket outlet, Italian standard P11

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 V
Device width
22,00 mm
Device height
36,00 mm
Device depth
32,50 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352020252
1 NR
4.1x2.8x5.3 [cm]
25.13 [g]
Barcode Qty 50 NR
8007352005952
50 NR
21.4x11.6x14.2 [cm]
1,336.8 [g]
Barcode Qty 500 NR
8007352716995
500 NR
57.5x22.5x30 [cm]
13,370 [g]
