1P 10AX 1-way switch - 10000

Pdf
Vimar - 10000 - 1P 10AX 1-way switch
Vimar - 10000 - 1P 10AX 1-way switch

10000
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

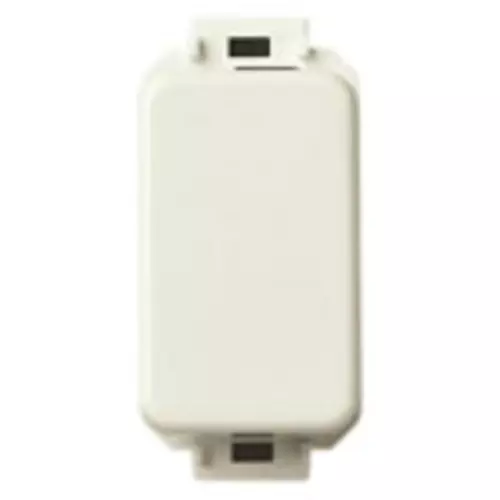

1P 10AX 1-way switch
1P 10 AX 250 V~ 1-way switch. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Push button switch
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
9001
Label space/information surface
Yes
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Washing machine switch
No
Device width
22,00 mm
Device height
36,00 mm
Device depth
35,50 mm
Built-in depth
23,50 mm

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352019997
1 NR
4.1x2.8x5.3 [cm]
22.47 [g]
Barcode Qty 50 NR
8007352005945
50 NR
21.4x11.6x14.2 [cm]
1,203.27 [g]
Barcode Qty 500 NR
8007352335752
500 NR
57.5x22.5x30 [cm]
12,544.67 [g]
