Gateway 2M DIN rail white - 0K14597.01

Pdf
Vimar - 0K14597.01 - Gateway 2M DIN rail white
Vimar - 0K14597.01 - Gateway 2M DIN rail white

0K14597.01
Wiring devices / View Wireless wiring devices / Shared components / DIN devices

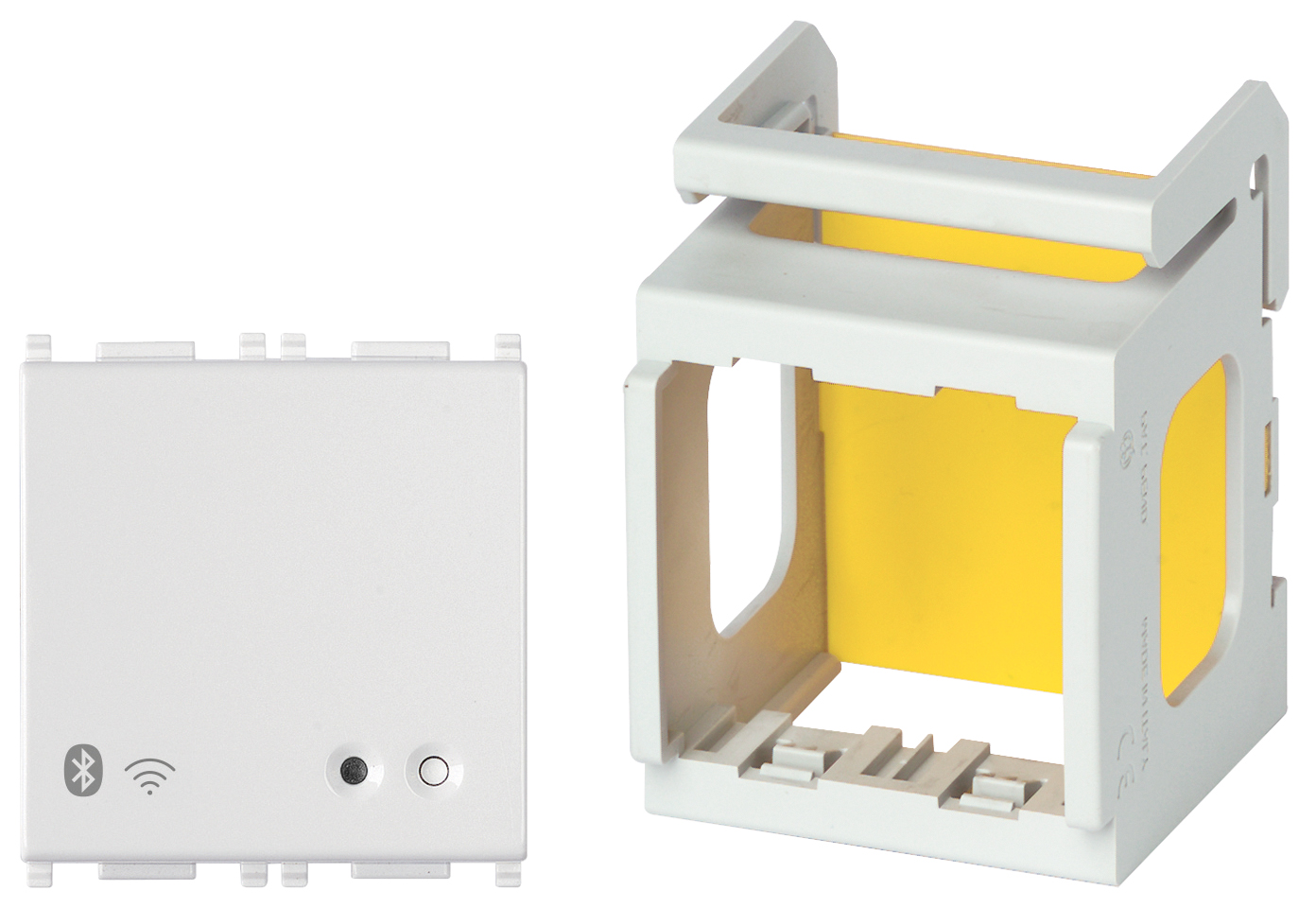

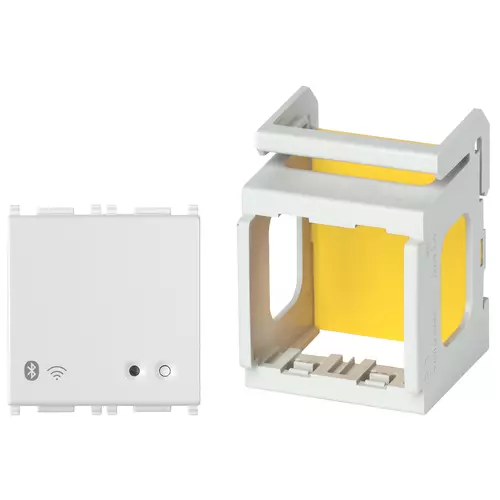

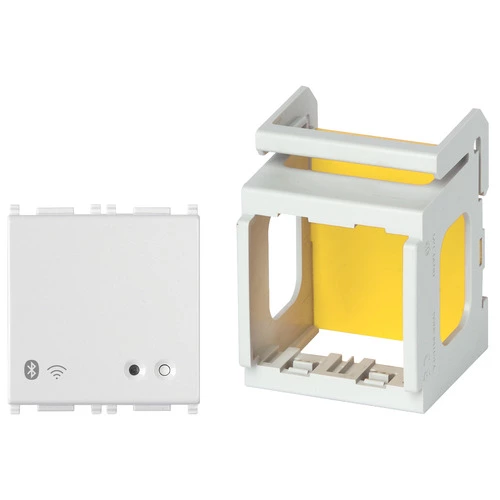

Gateway 2M DIN rail white
˝IoT Bluetooth Wi-Fi Gateway for integration, configuration, supervision of View Wireless, via Cloud and App for smartphone, Tablet, 100-240 V 50/60 Hz power supply, installation on DIN rail (60715 TH35); occupies 2 modules size 17.5 mm˝

Product Status
3 - Active

Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Model
Bluetooth interface
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
Yes
IR interface
No

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

37. Marking - Morocco

40. Bluetooth technology

41. Wi-Fi CERTIFIED

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352668218
1 NR
11.7x10.8x7.1 [cm]
119.2 [g]
