Flush-box 6(3+3)M blue

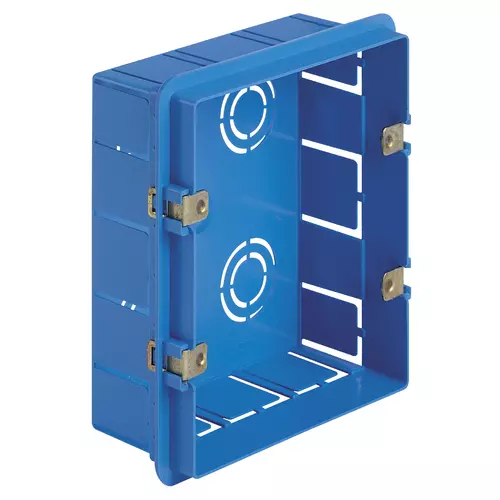

6-module flush mounting box (3 over 3) for masonry, (Glow Wire 650 °C), light blue

  • Knockouts designed for the insertion of pipes with various cross-sections
  • Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing

Product Status
3 - Active

Drawings

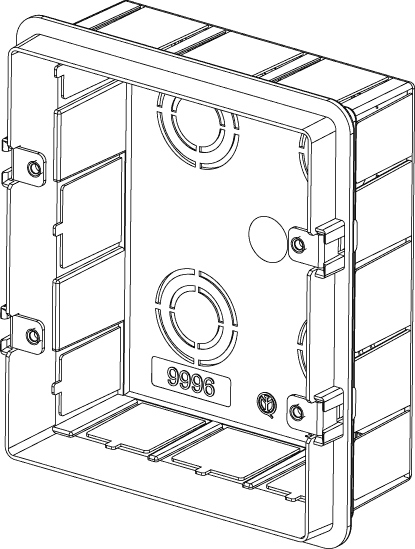

view encumbered art. 09996
PNG DXF

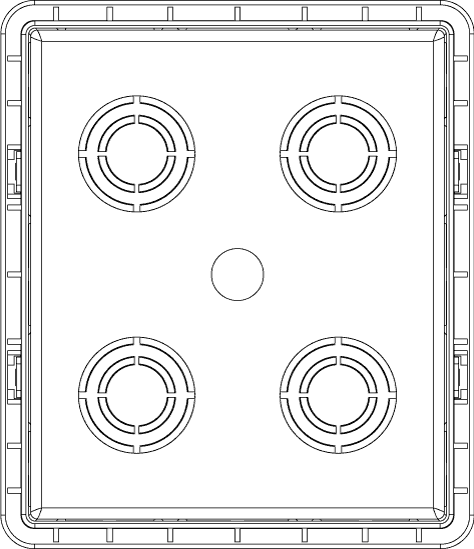

rear view art. 09996
PNG DXF
3D view art. 09996
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm
Length
111,00 mm
Width
94,00 mm
Depth
0,00 - 48,00 mm
Inner depth
50,00 mm
For number of electric fittings
6
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
16
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352043961
1 NR
12.2x10.5x4.8 [cm]
43.8 [g]
Barcode Qty 20 NR
8007352018839
20 NR
37.5x30x13.5 [cm]
1,237.6 [g]
