Surface-box 3M grey

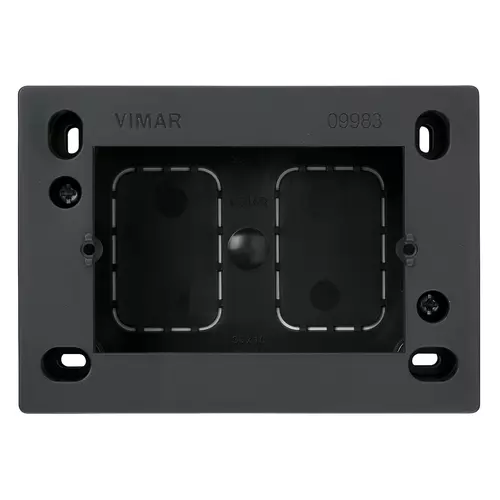

3-module surface mounting box, 35/45 mm depth<(>,<)> for Eikon, Idea and Plana devices with relevants mounting frame and cover plates, grey. Eikon series: suitable only for Eikon Chrome cover plates

Product Status
3 - Active

Drawings

view encumbered art. 09983
PNG DXF
rear view art. 09983
PNG DXF
3D view art. 09983
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for surface mounting on the wall/ceiling
Max. conductor cross section
0
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
For tube diameter
20/25 mm
Inlet from the rear
Yes
Length
87,10 mm
Width
122,10 mm
Depth
46,00 mm
Diameter
0 mm
Tackable
No
Number of inlets
4
Type of housing feed-through
None
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
Other
Transparent cover
No
Cover attachment
Screwed
Castable
No
With casting compound
No
Sealable
No
Rated insulation voltage Ui
450 V
Circuit integrity
None
With screening
No
Weatherproof
No
Operating temperature
0 - 60 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352265103
1 NR
12.1x8.4x4.5 [cm]
77.57 [g]
Barcode Qty 10 NR
8007352265110
10 NR
28.6x24.8x9.6 [cm]
921.4 [g]
Barcode Qty 60 NR
8007352641679
60 NR
62x26x30 [cm]
6,140 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
