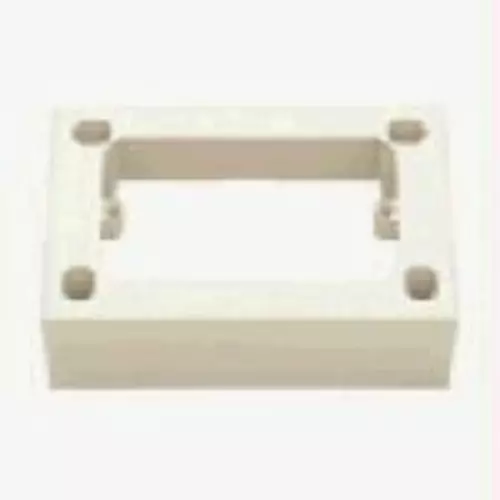

Surface-box 3M 40mm depth ivory
3-module surface mounting box, 40 mm depth, for 8000, Linea and 7000 with relevants mounting frame, cover plates or self-bearing cover plates, RAL 9001 ivory. Not suitable for 08065..., 08081..., 08341, 08342, 08440, 08441, 08443, 08445, 08446, 08450, 08470, 08480, 08481, 10064..., 10065..., 10081.... To be installed on insulating non-perforated or metallic with earth connection surfaces.

Product Status
3 - Active

Drawings

view encumbered art. 09973.A
PNG DXF
rear view art. 09973.A
PNG DXF
3D view art. 09973.A
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for surface mounting on the wall/ceiling
Max. conductor cross section
0
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
For tube diameter
20/25 mm
Inlet from the rear
Yes
Length
80,00 mm
Width
124,00 mm
Depth
40,00 mm
Diameter
0 mm
Tackable
No
Number of inlets
4
Type of housing feed-through
None
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
White
Degree of protection (IP)
IP20
Cover model
Other
Transparent cover
No
Cover attachment
Screwed
Castable
No
With casting compound
No
Sealable
No
Rated insulation voltage Ui
450 V
Circuit integrity
None
With screening
No
Weatherproof
No
Operating temperature
0 - 60 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352043855
1 NR
12x8x4 [cm]
53.27 [g]
Barcode Qty 20 NR
8007352003439
20 NR
28.4x24.4x17.9 [cm]
1,287.73 [g]

Share

Codice QR scheda articolo
