TORCIA hand lamp for DIN rail - 09963

09963
Wiring devices / Traditional wiring devices / 8000 / Devices

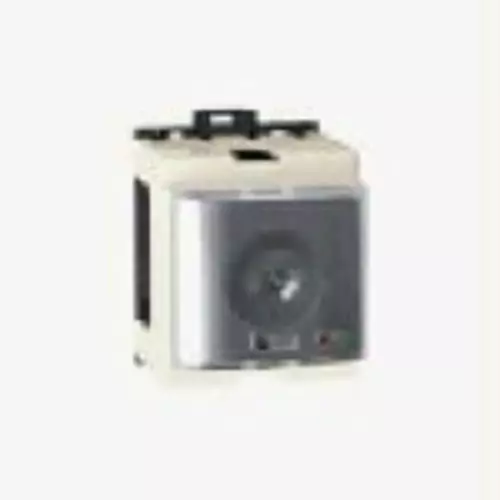

TORCIA hand lamp for DIN rail
TORCIA, electronic hand lamp with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, automatic emergency device, rechargeable and replaceable Ni-MH battery, 2 hours of operating range, ø 4 mm pins, 19 mm distance between centres + charging socket outlet provided with mounting frame for DIN (60715 TH35) rail installation, 3 17,5 mm modules sized, 53 mm depth, RAL 7035 grey

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (484 kb)

Class group
Luminaires

Class
Emergency luminaire

Mounting method
Built-in

Monitoring equipment
None

With remote switch connection
No

Power supply system
Peripheral (individual battery)

Battery quality
NiMH

Lamp type
LED not exchangeable

With light source
Yes

Housing colour
White

Voltage type
AC

Nominal voltage
230,00 - 230,01 V

Degree of protection (IP)
IP40

Protection class
II

Max. system power
1,00 W

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352017474

1 NR

11.2x9.6x9.8 [cm]

164.07 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
