Surface-cover 45mm depth ivory - 1M - 09951.A

Pdf
Vimar - 09951.A - Surface-cover 45mm depth ivory - 1M
Vimar - 09951.A - Surface-cover 45mm depth ivory - 1M

09951.A
System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

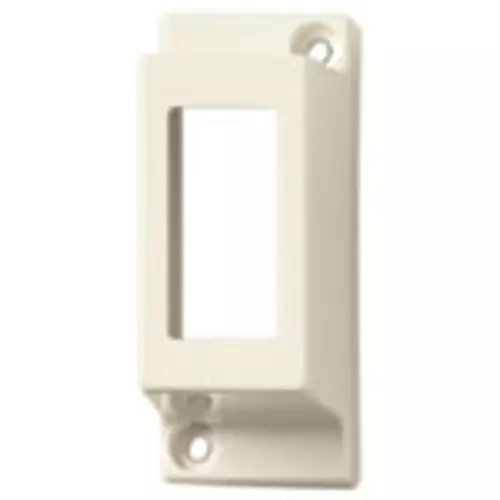

Surface-cover 45mm depth ivory - 1M
Monobloc surface cover, 45 mm depth, for 1 8000 standard module, ivory RAL 9001. Not suitable for 08064, 08065, 08388, 08389, 08390

Product Status
3 - Active

Class group
Connection material (electrotechnical)
Class
Box/housing for surface mounting on the wall/ceiling
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Inlet from the rear
Yes
Length
78,50 mm
Width
32,00 mm
Depth
45,00 mm
Material
Plastic
Halogen free
Yes
Colour
White
Degree of protection (IP)
IP40
Cover model
None
Transparent cover
No
Cover attachment
Other
Sealable
No
With screening
No

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352043718
1 NR
3.2x7.8x4 [cm]
22.81 [g]
Barcode Qty 20 NR
8007352003491
20 NR
24.4x13.9x8.4 [cm]
556.07 [g]
Barcode Qty 200 NR
8007352642287
200 NR
47.5x27x29 [cm]
6,640 [g]
