Table-box 50mm depth ivory - 3M - 09933

Pdf
Vimar - 09933 - Table-box 50mm depth ivory - 3M
Vimar - 09933 - Table-box 50mm depth ivory - 3M

09933
System infrastructure / Enclosures and control units / Connector block boxes / Desktop

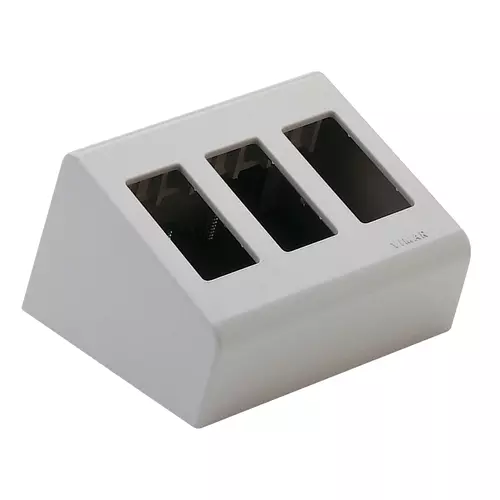

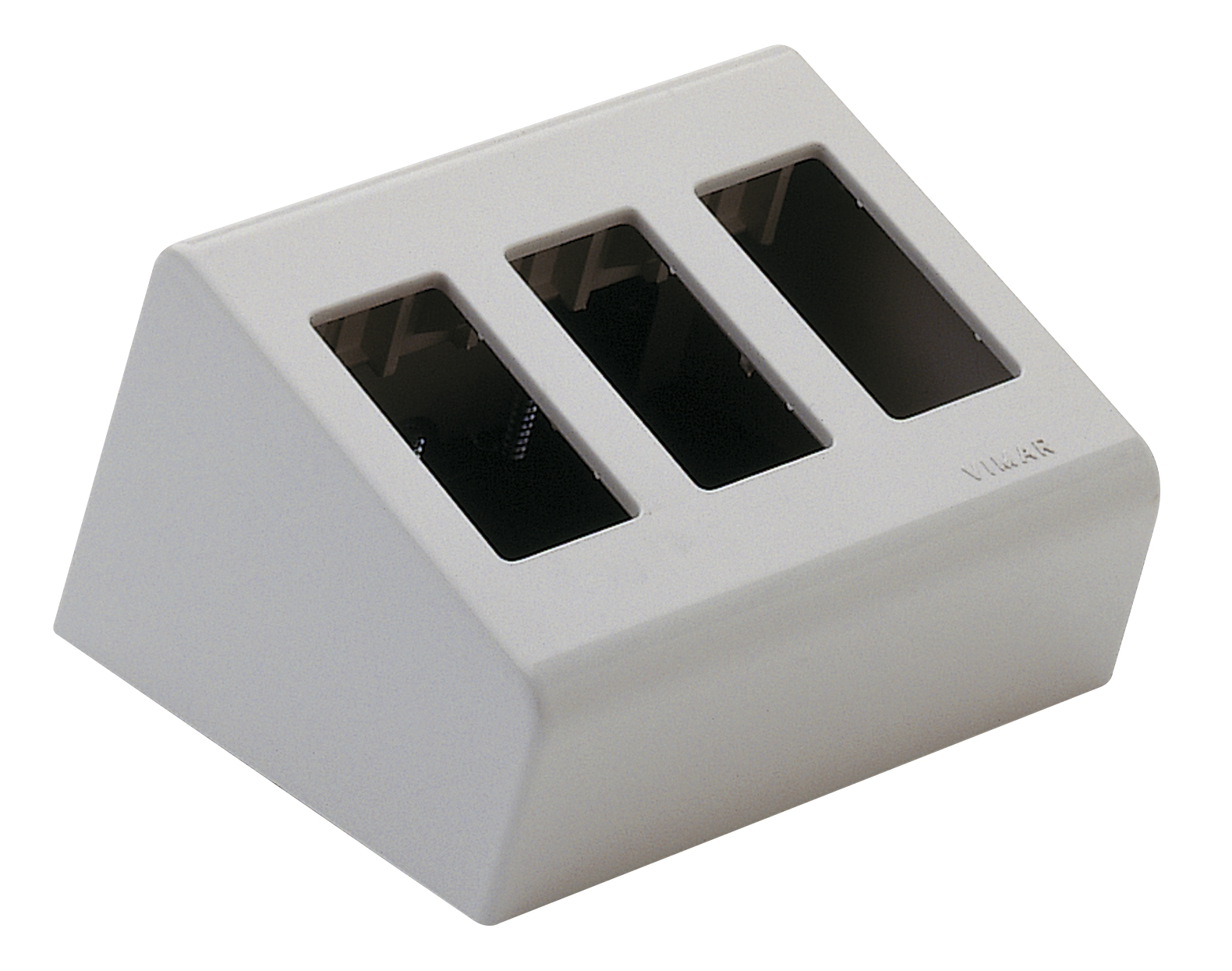

Table-box 50mm depth ivory - 3M
Table mounting box with backplate, 50 mm depth, for 3 8000 standard modules, cable entry with cord-grip, ivory. Not suitable for 08064, 08065, 08081, 08336, 08340, 08341, 08342, 08388, 08389, 08390

Product Status
3 - Active

Class group
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
3
Number of units
3
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
With cover frame
Yes
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Device width
82,00 mm
Device height
77,00 mm
Device depth
50,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352043671
1 NR
8.2x5x7.7 [cm]
64.2 [g]
Barcode Qty 20 NR
8007352010024
20 NR
28.4x24.4x13.4 [cm]
1,492 [g]
