Surface-box 12-14M Silver - 09920.SL

Pdf
Vimar - 09920.SL - Surface-box 12-14M Silver
Vimar - 09920.SL - Surface-box 12-14M Silver

09920.SL
System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

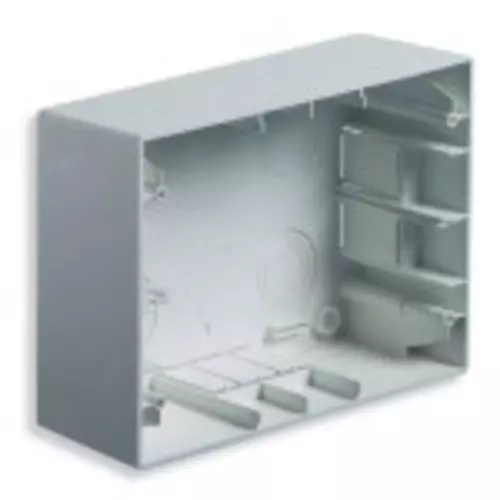

Surface-box 12-14M Silver
Surface mounting box for 12 (6+6)-module Idea and 14 (7+7)-module Eikon or Plana with relevants mounting frames and cover plates, Silver

Product Status
2 - Will be discontinued

Class group
Connection material (electrotechnical)
Class
Box/housing for surface mounting on the wall/ceiling
Max. conductor cross section
0
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
For tube diameter
20/25 mm
Inlet from the rear
Yes
Length
152,00 mm
Width
206,00 mm
Depth
70,00 mm
Diameter
0 mm
Tackable
No
Number of inlets
8
Type of housing feed-through
None
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
Other
Transparent cover
No
Cover attachment
Screwed
Castable
No
With casting compound
No
Sealable
No
Rated insulation voltage Ui
450 V
Circuit integrity
None
With screening
No
Weatherproof
No
Operating temperature
0 - 60 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
Minimum order quantity: 25 NR

Barcode

Barcode Qty 1 NR
8007352321250
1 NR
24.8x14.6x7.5 [cm]
247.2 [g]
Barcode Qty 25 NR
8007352321267
25 NR
59x38.5x30 [cm]
7,036 [g]
