Frame 6M (3+3) +screws - 09619

Pdf
Vimar - 09619 - Frame 6M (3+3) +screws
Vimar - 09619 - Frame 6M (3+3) +screws

09619
Wiring devices / Traditional wiring devices / NEVE UP / Mounting frames

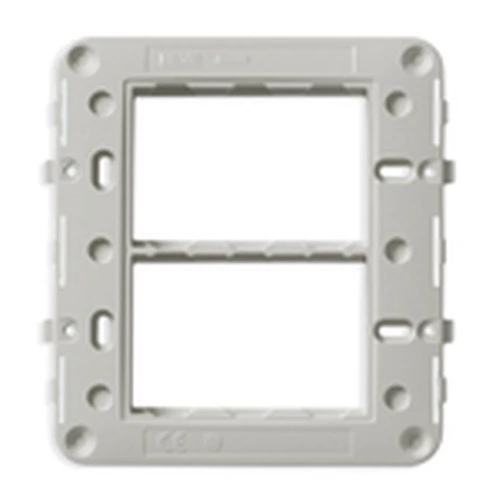

Frame 6M (3+3) +screws
4x4 in (6-module 3+3) mounting frame, with screws, for 09996 flush mounting boxes

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 09619
PNG DXF
rear view art. 09619
PNG DXF
3D view art. 09619
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
2
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

96. Electrotechnical expert

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352305212
1 NR
11.8x12.4x1.7 [cm]
38 [g]
Barcode Qty 10 NR
8007352305229
10 NR
24.4x13.9x10.1 [cm]
467.67 [g]
Barcode Qty 120 NR
8007352305236
120 NR
60x33x27.5 [cm]
6,360 [g]
