TORCIA hand lamp 230V white - 09395

Pdf
Vimar - 09395 - TORCIA hand lamp 230V white
Vimar - 09395 - TORCIA hand lamp 230V white

09395
Wiring devices / Traditional wiring devices / NEVE UP / Devices

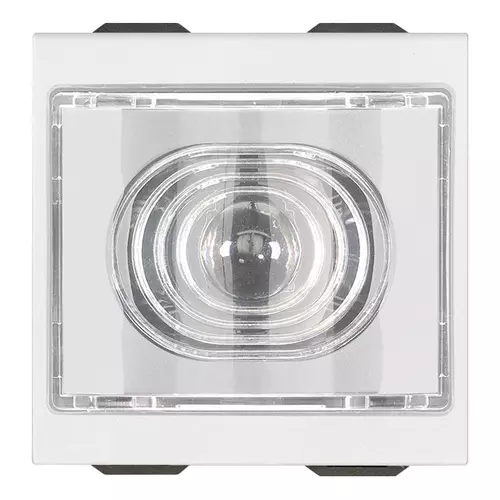

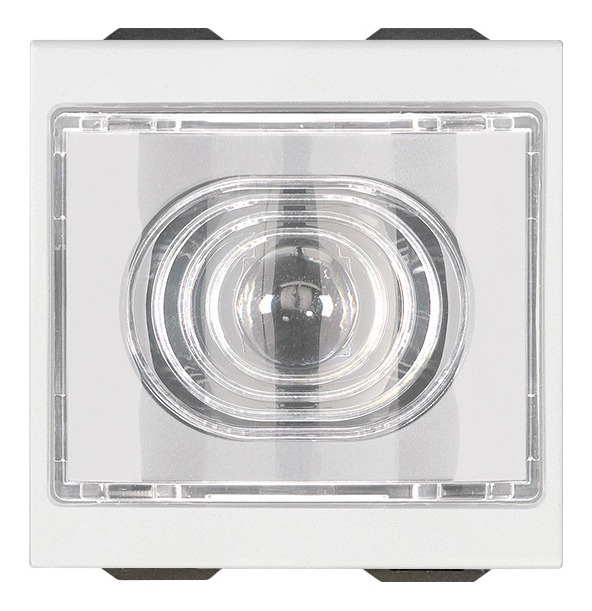

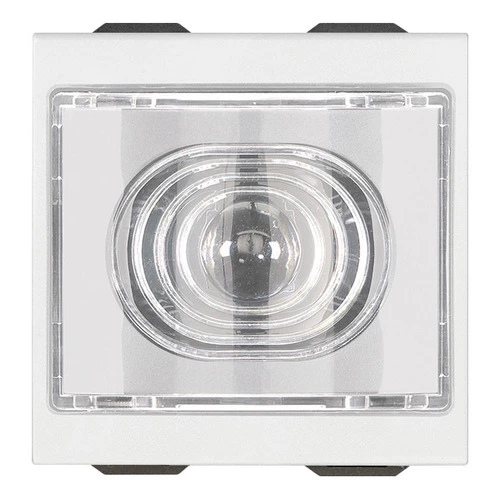

TORCIA hand lamp 230V white
TORCIA, porTable electronic hand lamp with high-efficiency LEDs 230 V~ 50-60 Hz, automatic emergency device, replaceable and rechargeable Ni-MH battery, 2 hours’ autonomy, ø 4 mm pin, distance between centres 19 mm + charging socket, white - 2 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 09395
PNG DXF
rear view art. 09395
PNG DXF
3D view art. 09395
PNG DXF
Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Plastic
Housing colour
White
Material cover
Without cover
Voltage type
AC
Nominal voltage
230,00 - 230,01 V
Max. system power
1,00 W
Width
44,80 mm
Height/depth
58,00 mm
Length
47,00 mm
Built-in width
44,80 mm
Built-in height/depth
41,30 mm
Built-in length
47,00 mm
Connection type
Other

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352664579
1 NR
6x5.4x5.3 [cm]
83.4 [g]
Barcode Qty 10 NR
8007352664586
10 NR
28.1x13.1x6 [cm]
910.8 [g]
Barcode Qty 50 NR
8007352667198
50 NR
37.5x30x13.5 [cm]
4,914 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
