Neutral double indicator unit white - 09388

Pdf
Vimar - 09388 - Neutral double indicator unit white
Vimar - 09388 - Neutral double indicator unit white

09388
Wiring devices / Traditional wiring devices / NEVE UP / Devices

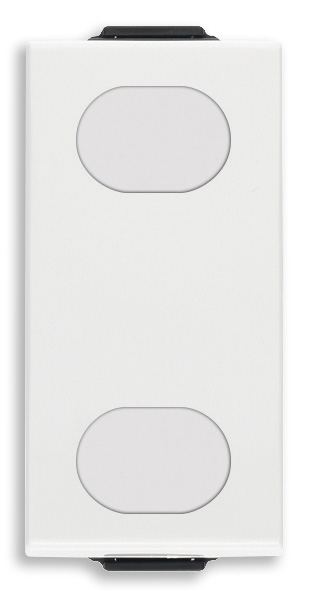

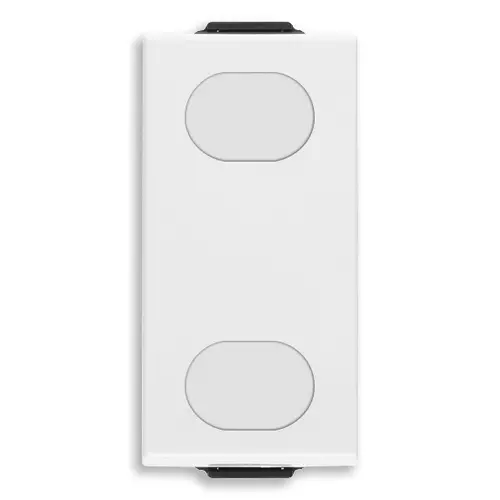

Neutral double indicator unit white

Product Status
3 - Active

Drawings

view encumbered art. 09388
PNG DXF

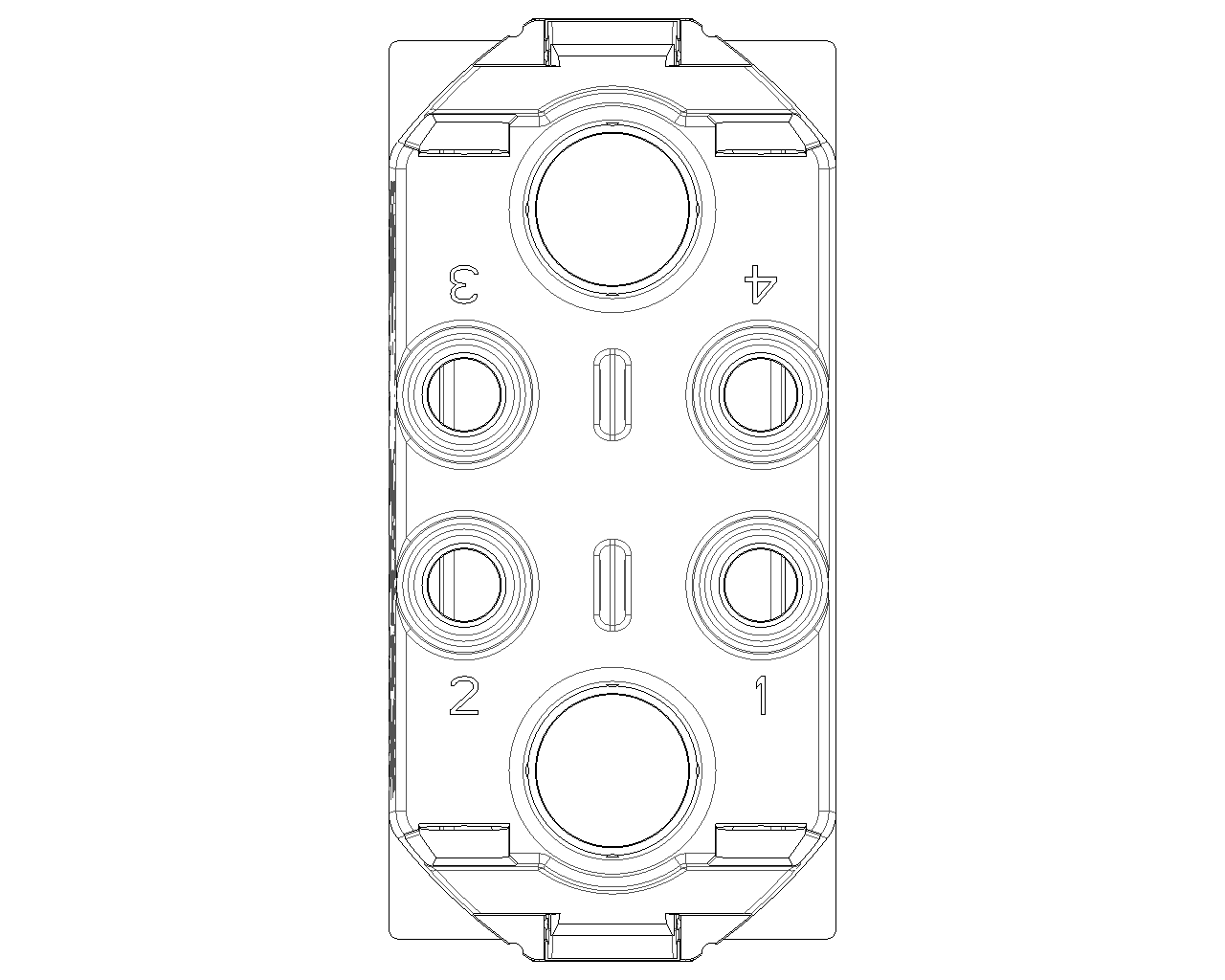

rear view art. 09388
PNG DXF

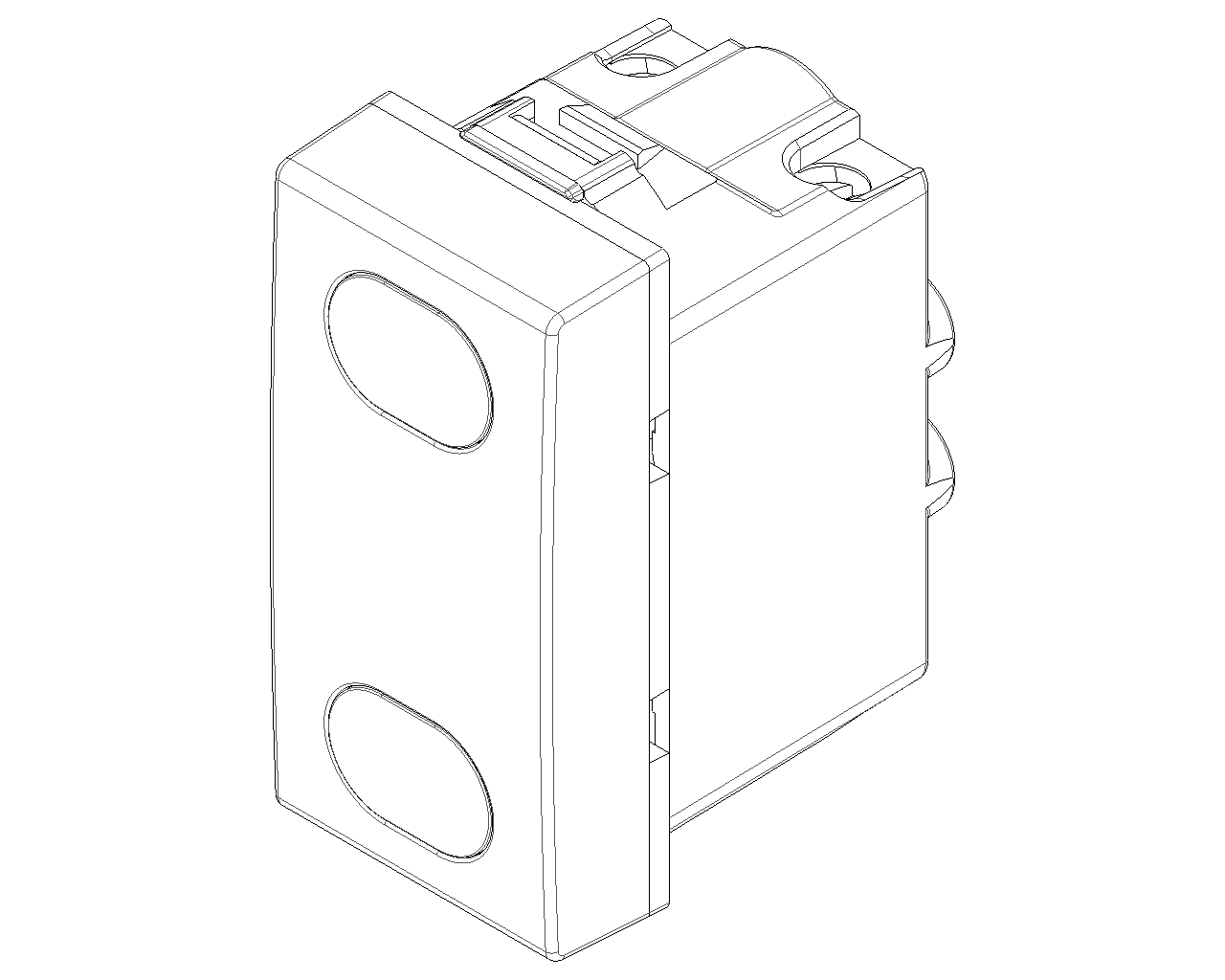

3D view art. 09388
PNG DXF
Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Lamp holder
Other
With light source
No
Lamp type
LED exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Application as button
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Colour light source
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V

00. CE Marking - EU

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352712706
1 NR
4.1x2.8x5.3 [cm]
24.38 [g]
Barcode Qty 20 NR
8007352712713
20 NR
21.4x11.6x6 [cm]
497.6 [g]
Barcode Qty 200 NR
8007352712720
200 NR
30.5x25.5x22.5 [cm]
5,476 [g]
