Sound System interphone power supp. 230V - 0931

0931
ELVOX Door entry system / Multi-wire video entry system / Shared A/V components / System components

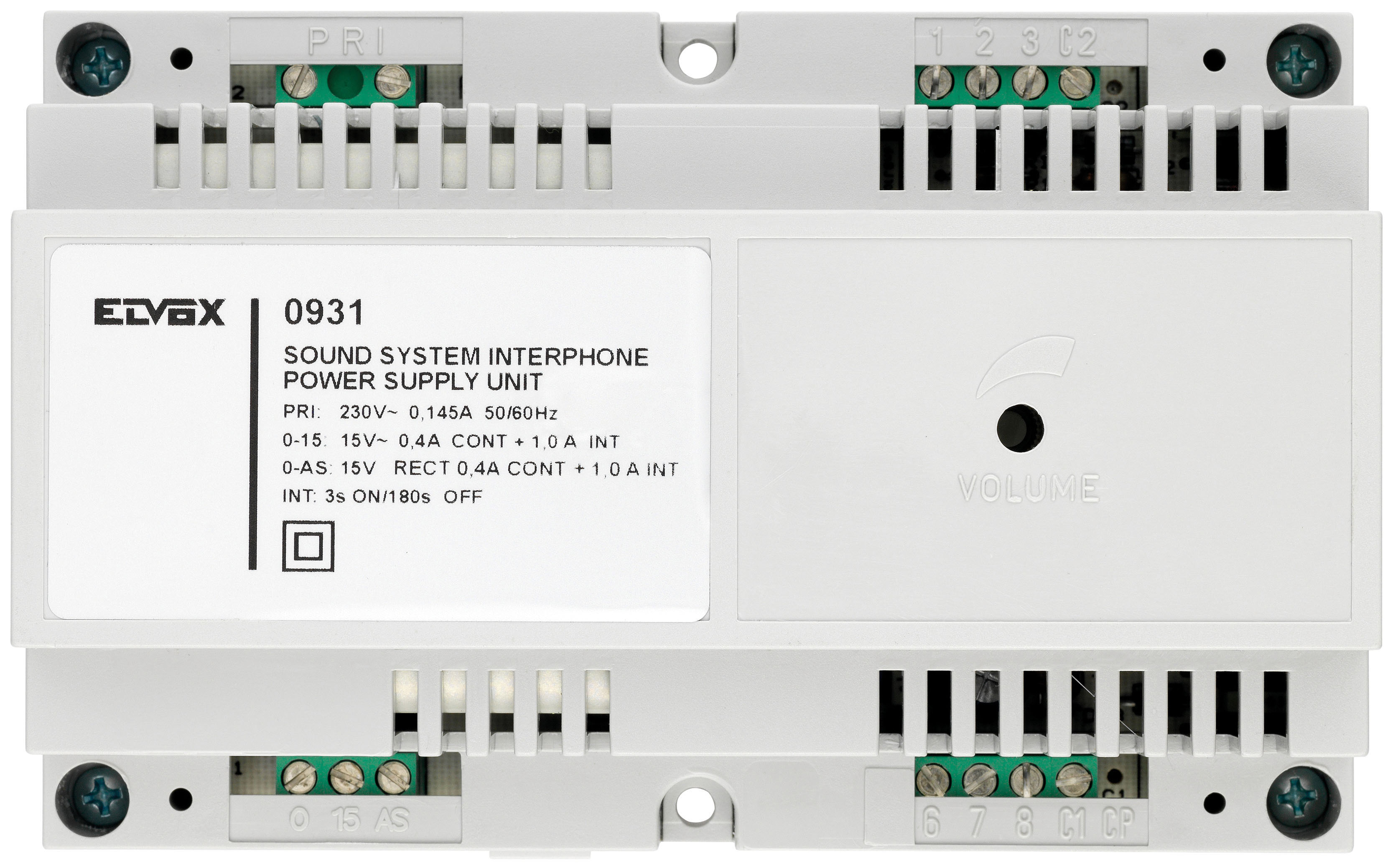

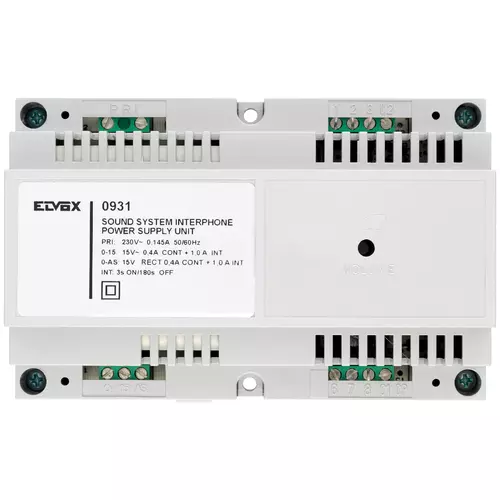

Sound System interphone power supp. 230V
Power supply unit for Sound System interphone with 15 V output, power supply 230 V~ 50/60 Hz 55 VA, for electronic units 0930/000.04 and 930A, installation on DIN rail (60715 TH35), occupies 8 modules size 17.5 mm

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1312 kb)
• Installation diagrams (1355 kb)

---

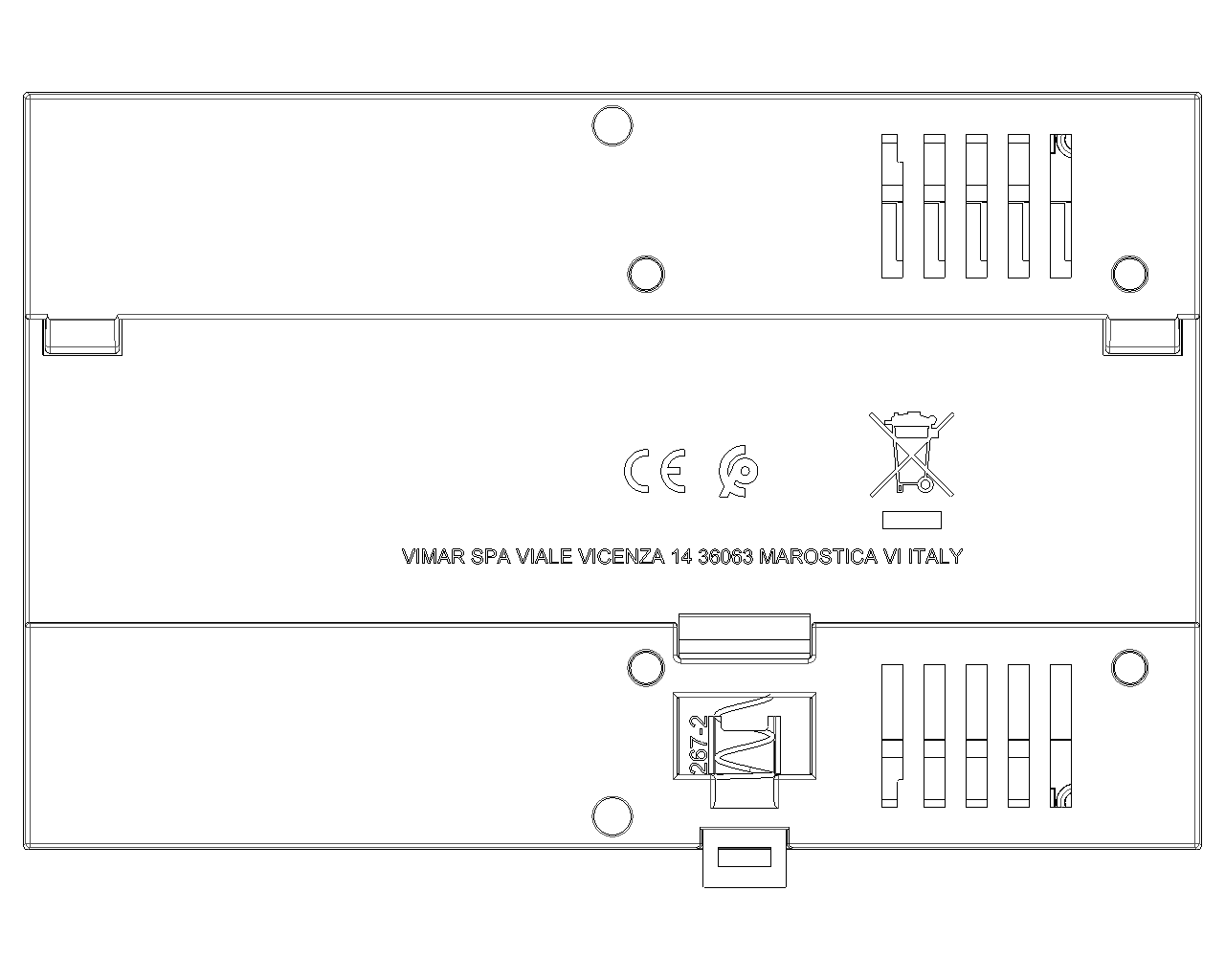

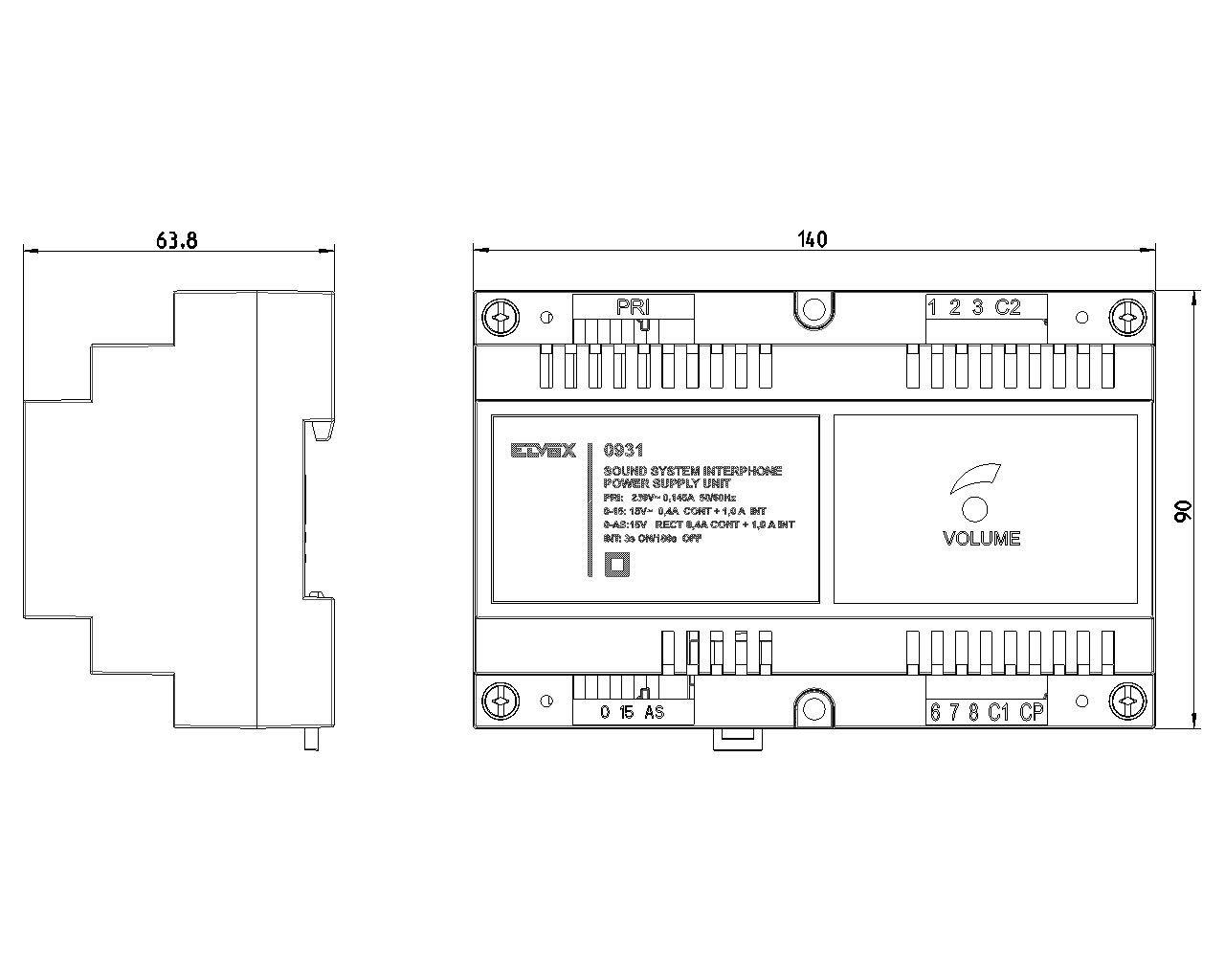

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Power supply door communication

Application
Other

Input voltage
230 V

Type of current
AC

Output voltage
15,00 V

Degree of protection (IP)
IP20

Installation technique
Multi-wire system

Integrated door opening circuit
Yes

Control function
No

Evaluation function
No

Service indication
No

Mounting method
Other

Programming lock
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406120632

1 NR

14.5x10x7 [cm]

939.6 [g]

8013406224224

20 NR

37x32x21.5 [cm]

19,382 [g]
