TV-FM-SAT single conn. 3outs white - 09303

Pdf

09303
Wiring devices / Traditional wiring devices / NEVE UP / Devices

TV-FM-SAT single conn. 3outs white
TV-Radio FM-SAT coaxial socket outlet, 5-2400 Mhz, single connection, demixed, 3 outputs with male connector (TV) and female connector (FM Radio) and type F (SAT), 1 dB connection attenuation, white - 2 modules. Allows the passage of DC current and control signals (24 V 500 mA max)

Product Status
3 - Active

You may also be interested in

Sheets, Manuals, Documentation

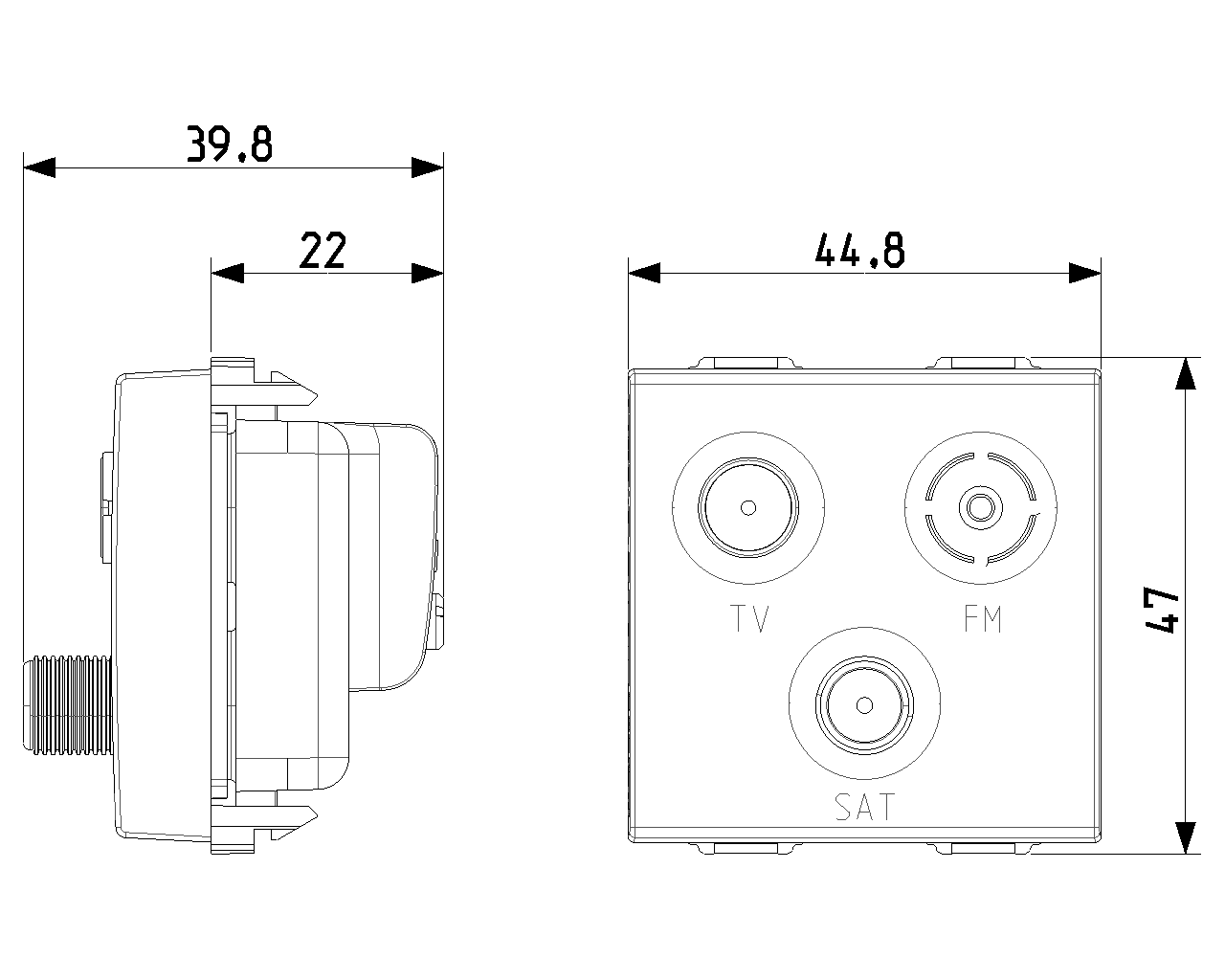

Drawings

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Mounting method
Flush-mounted
Cover
None
Number of outlets
3
Suitable for remote power supply
Yes
Colour
White
RAL-number (similar)
9003
Surface protection
Untreated
Surface finishing
Glossy
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352655041
1 NR
5.1x4.3x5.3 [cm]
85.8 [g]
Barcode Qty 5 NR
8007352655058
5 NR
14.4x11.6x6 [cm]
476.8 [g]
Barcode Qty 60 NR
8007352664067
60 NR
36.5x33x13.5 [cm]
6,098 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
