2P+E13ASICURY multistandard outlet white - 09257

Pdf
Vimar - 09257 - 2P+E13ASICURY multistandard outlet white
Vimar - 09257 - 2P+E13ASICURY multistandard outlet white

09257
Wiring devices / Traditional wiring devices / NEVE UP / Devices

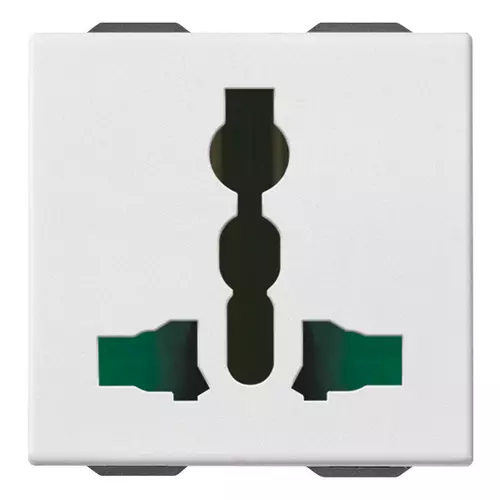

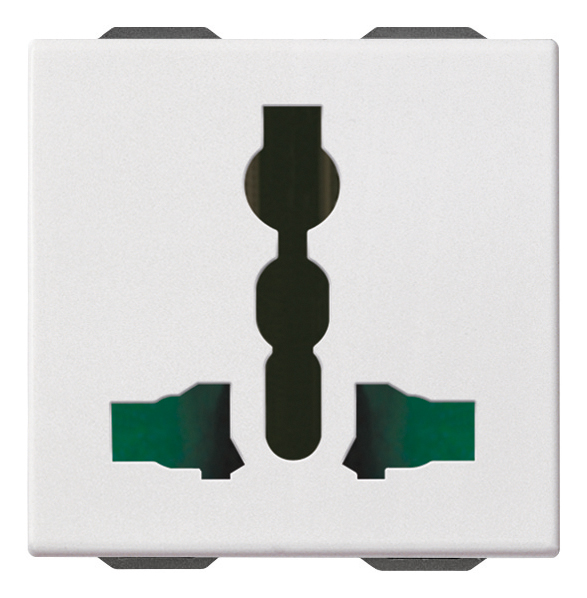

2P+E13ASICURY multistandard outlet white
2P+T 13 A 250 V~ multi-standard socket outlet, white - 2 modules

Product Status
3 - Active

You may also be interested in

09470
09470 - Dial thermostat 100-240V 2M white
09026.PLS
09026.PLS - Button 1M +diffuser PLS symb.white
09026.DND
09026.DND - Button 1M +diffuser DND symb.white
09463
09463 - Vertical badge switch 2M white
09290
09290 - Shaver supply unit 230V white
09465
09465 - Vertical pocket badge switch white
09052
09052 - 1P NO 10A cord-operated push white
09181
09181 - IR relay-switch 230V white

Sheets, Manuals, Documentation

Drawings

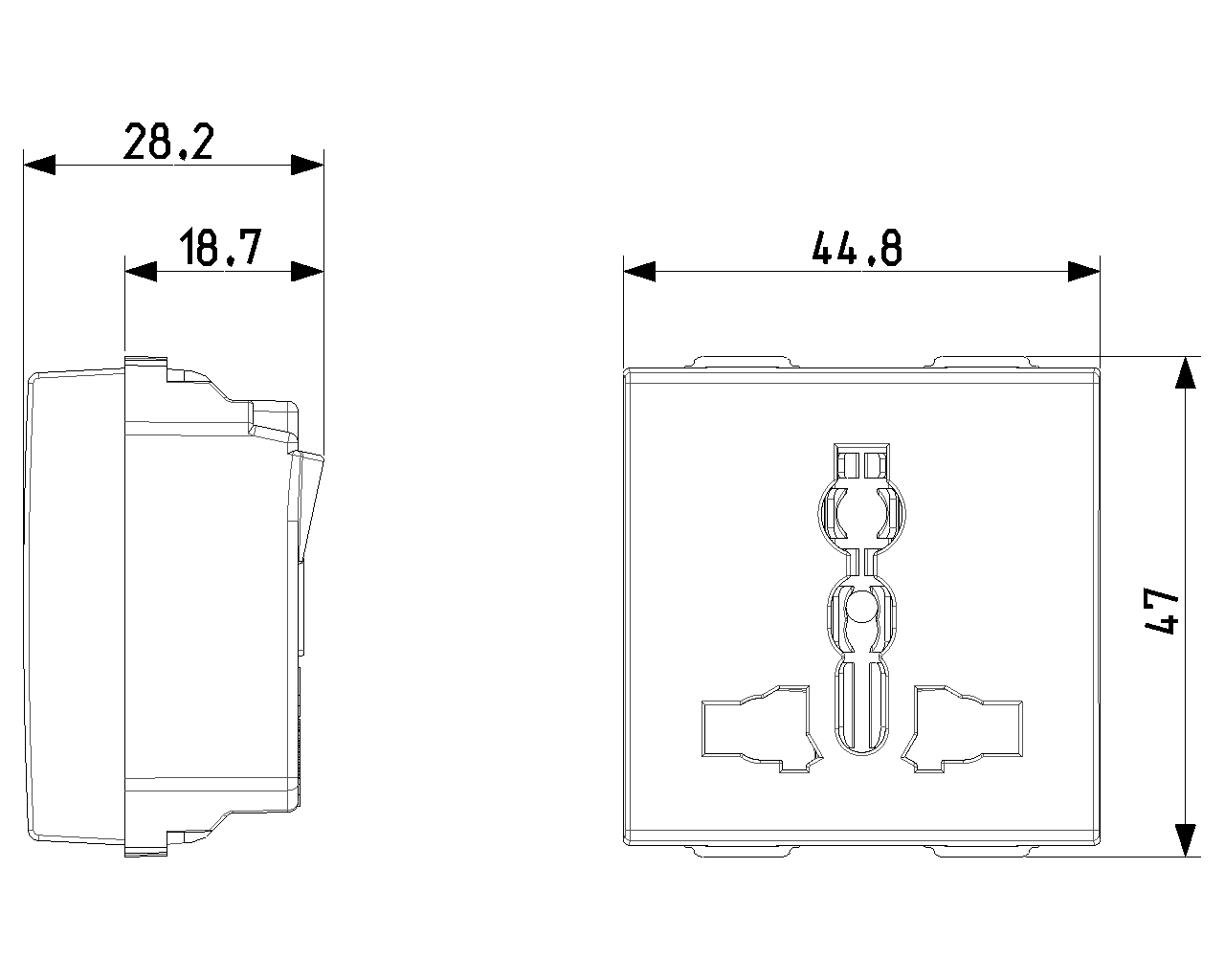

view encumbered art. 09257
PNG DXF

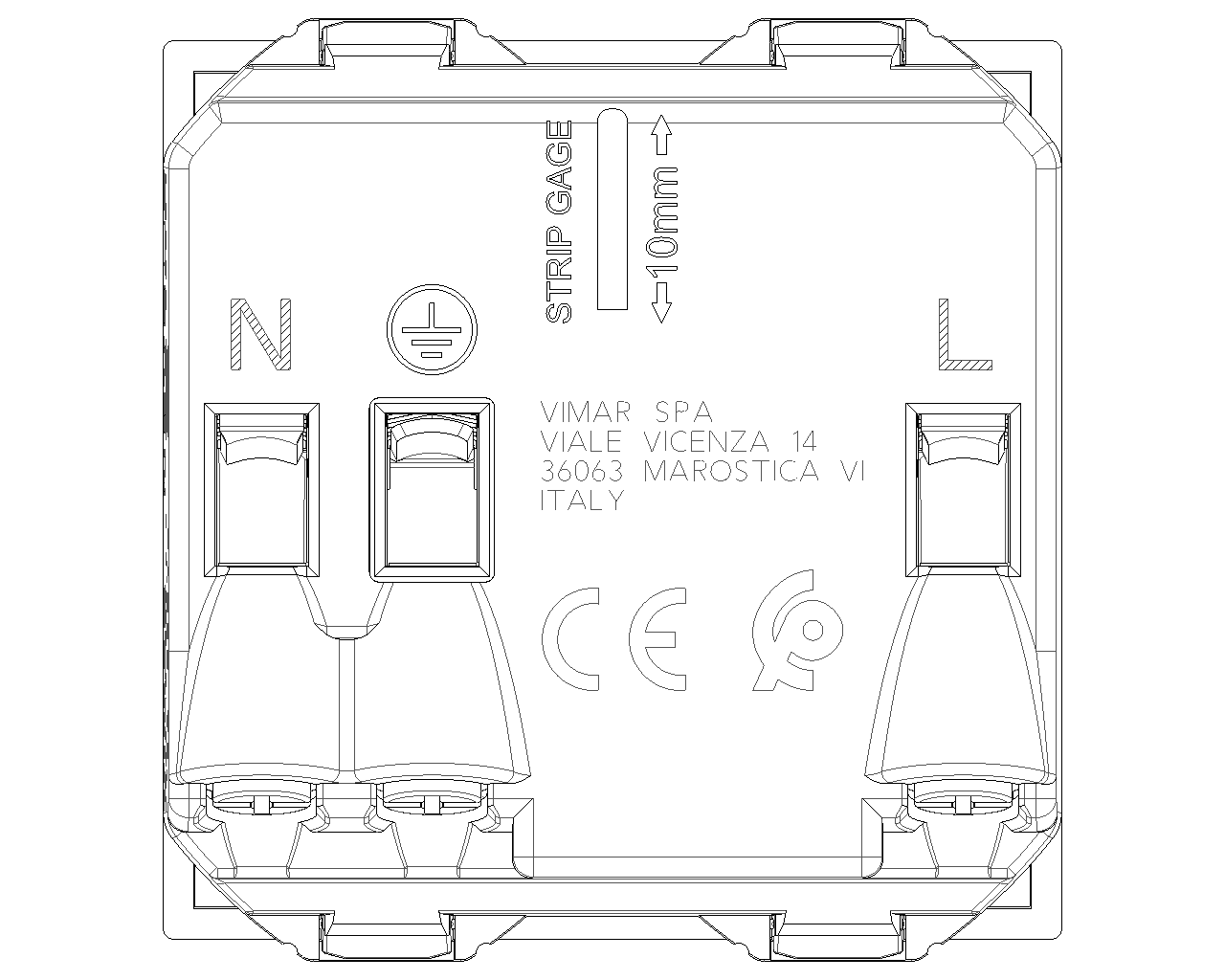

rear view art. 09257
PNG DXF

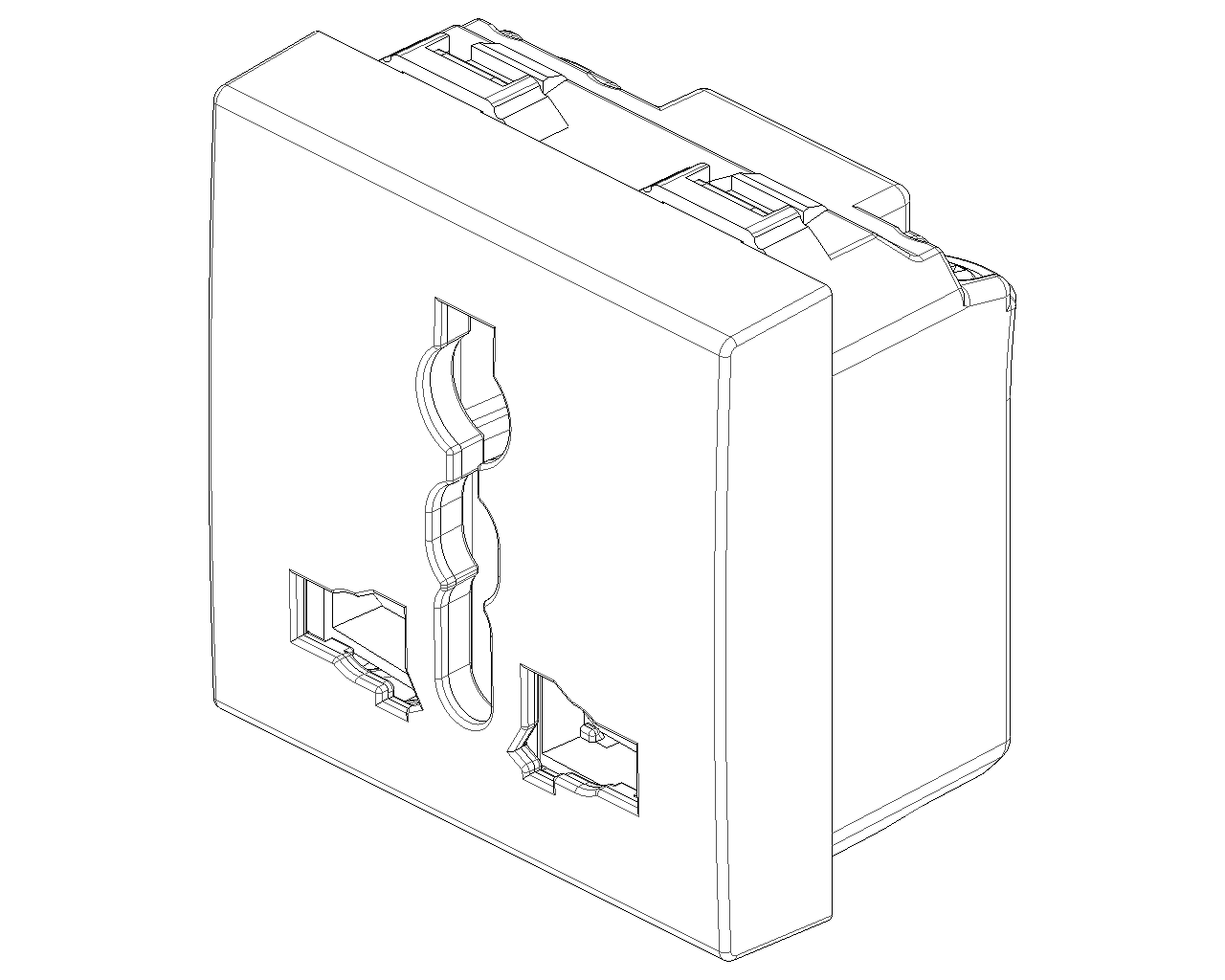

3D view art. 09257
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of modules (module system)
2
Number of socket outlets switchable
0
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
13 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Device width
44,80 mm
Device height
47,00 mm
Device depth
28,20 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352655102
1 NR
5.1x4.3x5.3 [cm]
50.5 [g]
Barcode Qty 20 NR
8007352655119
20 NR
26.9x11.6x9 [cm]
1,092 [g]
Barcode Qty 240 NR
8007352655126
240 NR
38x28.5x35.5 [cm]
13,524 [g]
