Dimmer 230V 100-500W push-push white - 09153

Pdf
Vimar - 09153 - Dimmer 230V 100-500W push-push white
Vimar - 09153 - Dimmer 230V 100-500W push-push white

09153
Wiring devices / Traditional wiring devices / NEVE UP / Devices

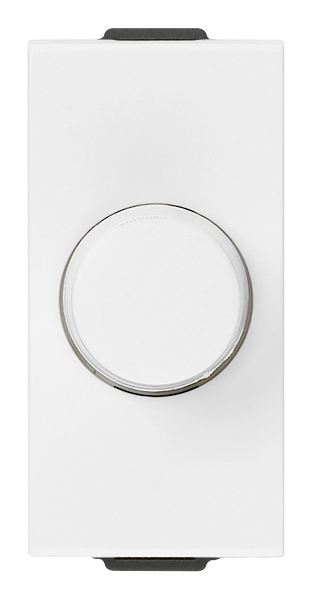

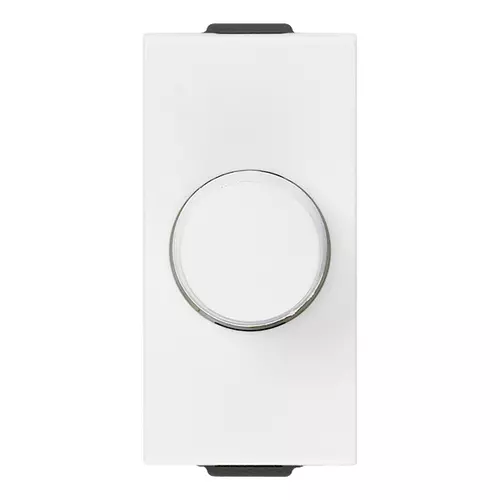

Dimmer 230V 100-500W push-push white
Dimmer 230 V~ 50 Hz for 100-500 W incandescent lamps, control via push-push 2-way switch and regulation via rotary potentiometer, visible in darkness, white

Product Status
3 - Active

You may also be interested in

09135.1
09135.1 - Dimmer MASTER 230V universal white
09146
09146 - Dimmer 230V 60-900W/60-300VA white

Sheets, Manuals, Documentation

Drawings

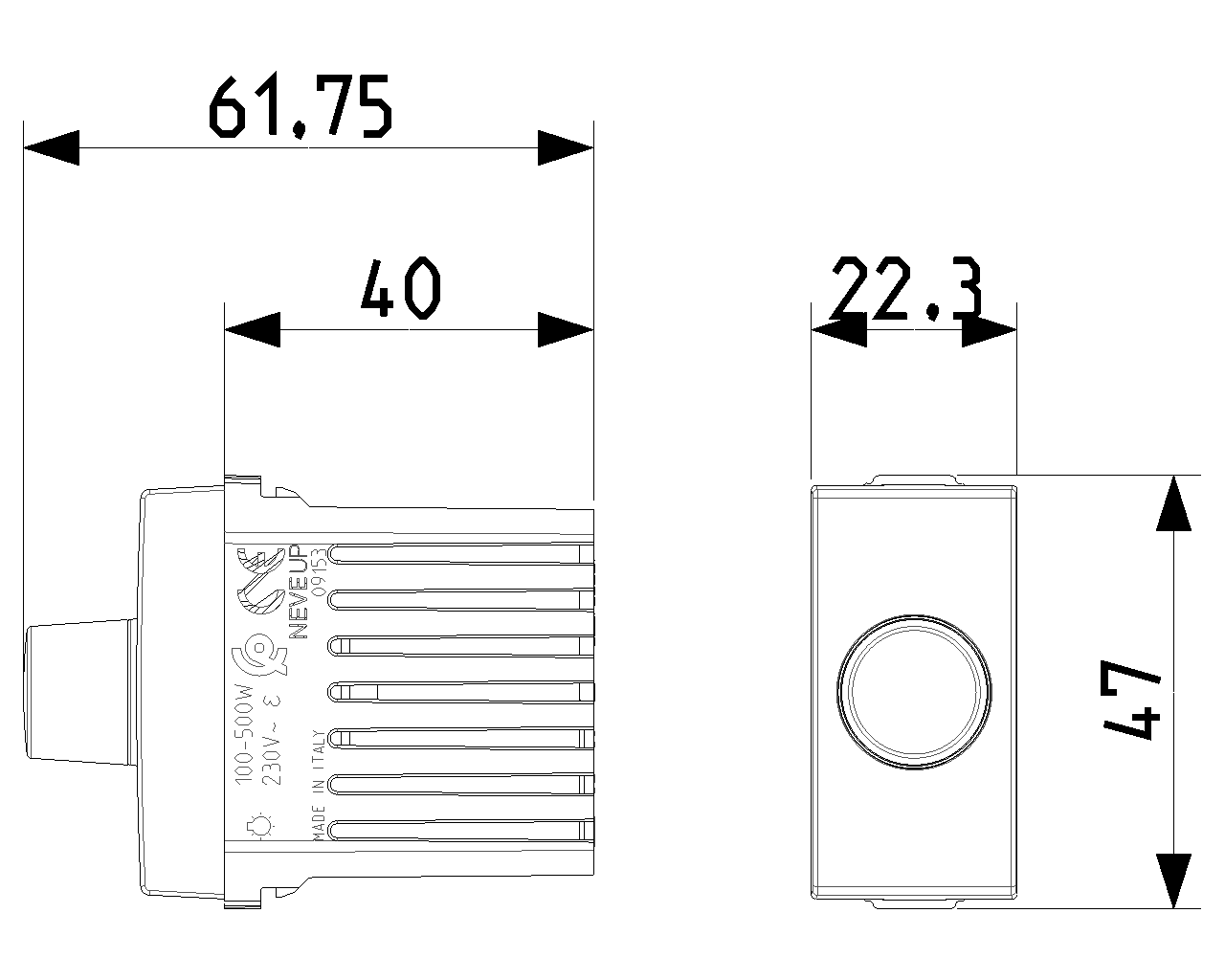

view encumbered art. 09153
PNG DXF

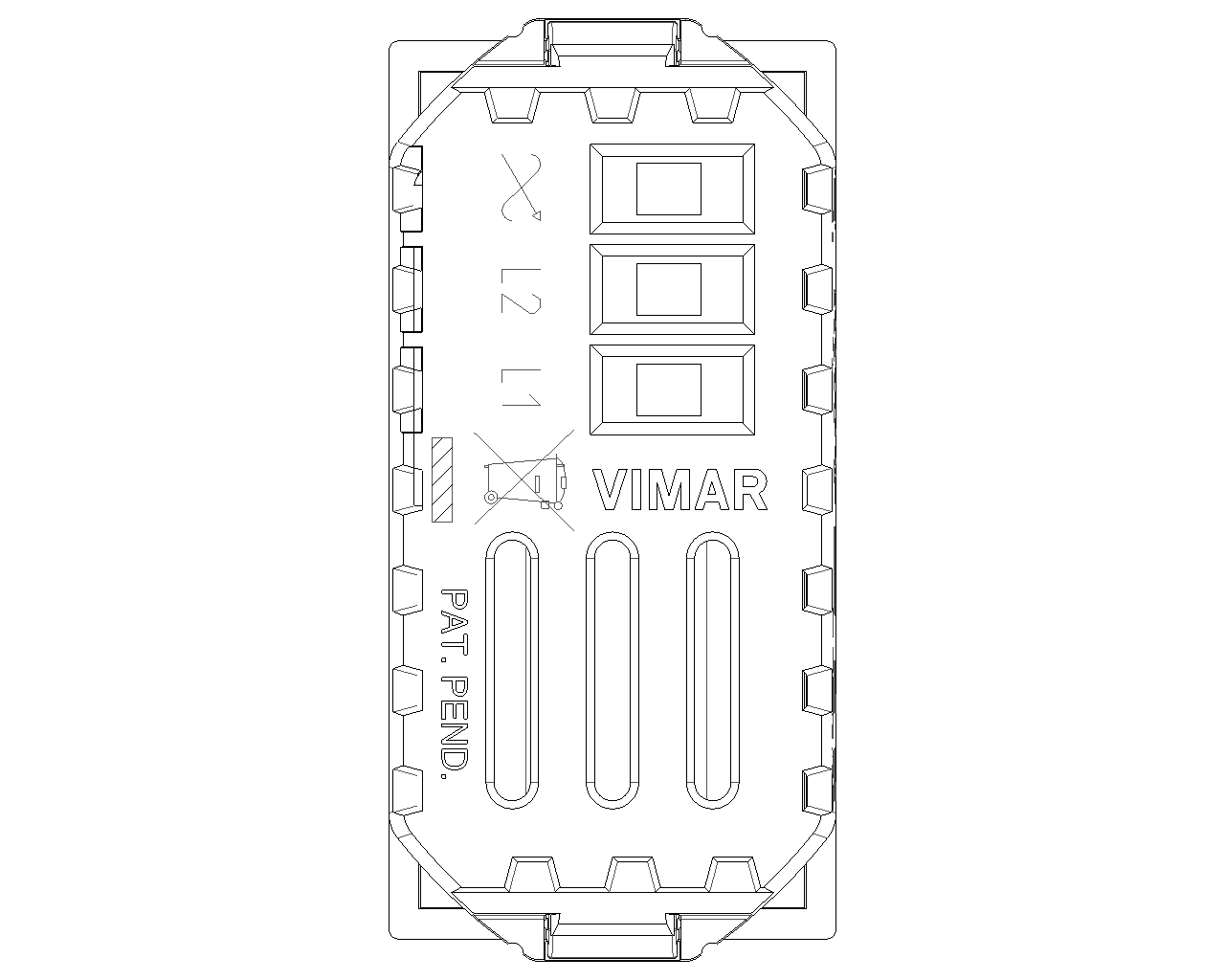

rear view art. 09153
PNG DXF

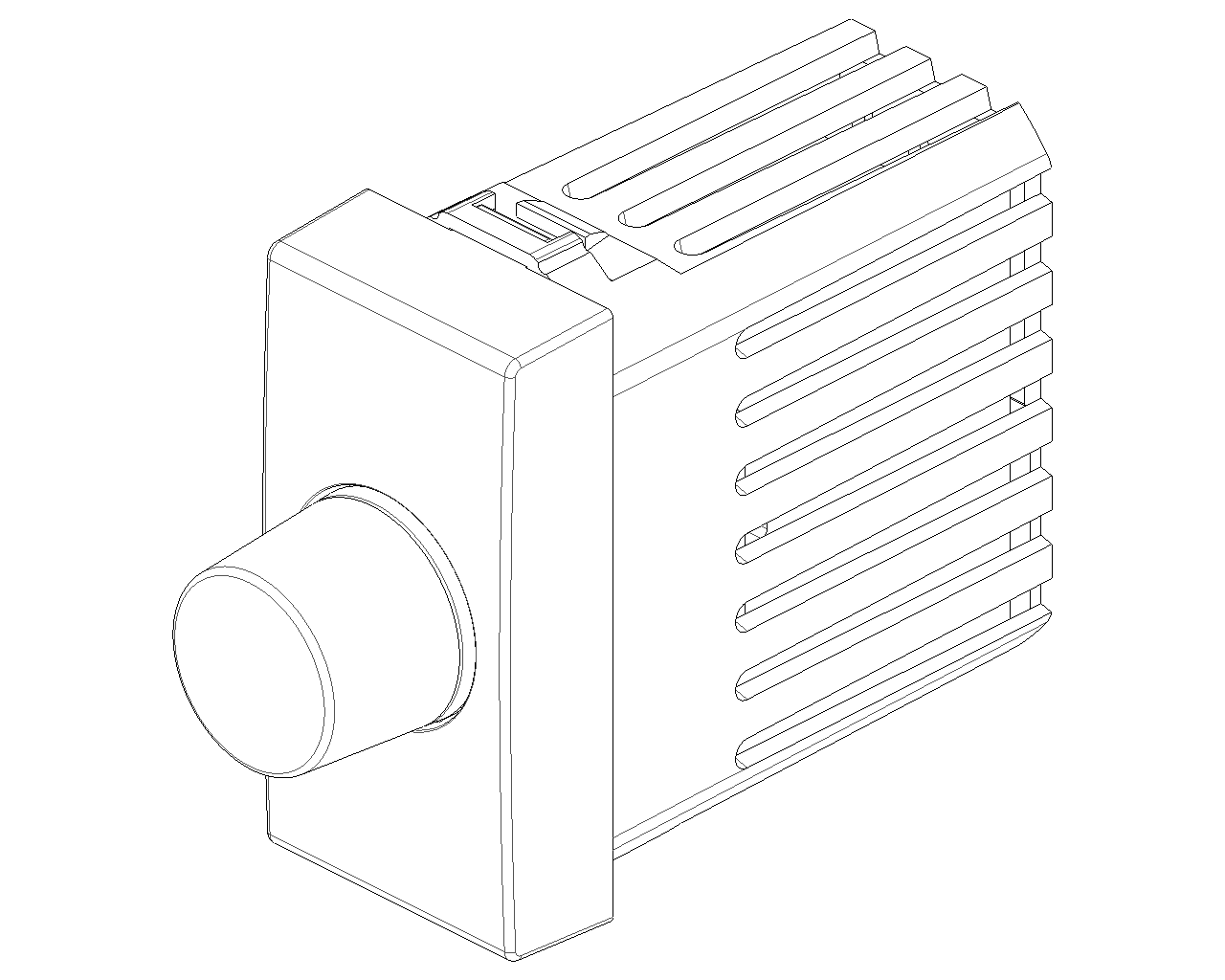

3D view art. 09153
PNG DXF
Class group
Domestic switching devices
Class
Push button
Method of operation
Turn button
Nominal voltage
230 V
Feedback-signal contact
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Device width
22,30 mm
Device height
47,00 mm
Device depth
61,75 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352297036
1 NR
5.3x3.9x7.6 [cm]
63.48 [g]
Barcode Qty 10 NR
8007352297043
10 NR
28.1x13.1x6 [cm]
711.4 [g]
Barcode Qty 120 NR
8007352297050
120 NR
38.5x29x30 [cm]
9,016.8 [g]
