Pushbutton +2 Hotel indicators 230V - 09097

Pdf
Vimar - 09097 - Pushbutton +2 Hotel indicators 230V
Vimar - 09097 - Pushbutton +2 Hotel indicators 230V

09097
Wiring devices / Traditional wiring devices / NEVE UP / Devices

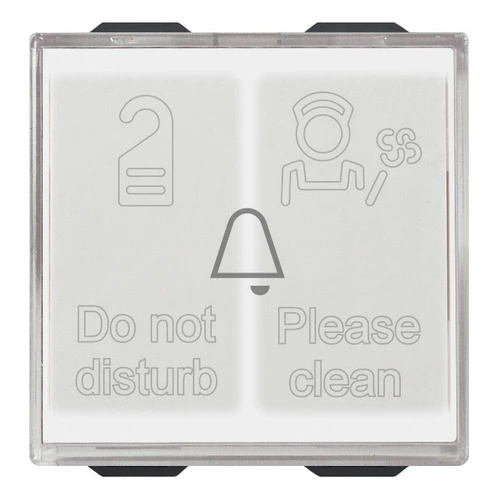

Pushbutton +2 Hotel indicators 230V
1P NO 10 A 250 V~ push button with two pilot lights for hotel Do Not Disturb and Please Clean 230V~, white - 2 modules

Product Status
3 - Active

You may also be interested in

09026.PLS
09026.PLS - Button 1M +diffuser PLS symb.white
09026.PLS.CM
09026.PLS.CM - Button 1M +diffuser PLS symb.carbon matt
09026.DND
09026.DND - Button 1M +diffuser DND symb.white
09026.DND.CM
09026.DND.CM - Button 1M +diffuser DND symb. carbon m

Drawings

view encumbered art. 09097
PNG DXF
rear view art. 09097
PNG DXF
3D view art. 09097
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
200
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Device width
44,80 mm
Device height
47,00 mm
Device depth
36,70 mm

00. CE Marking - EU

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352655157
1 NR
5.1x4.3x5.3 [cm]
48.8 [g]
Barcode Qty 10 NR
8007352655164
10 NR
26.9x11.6x4.9 [cm]
566 [g]
Barcode Qty 120 NR
8007352664050
120 NR
38.5x29x30 [cm]
7,280 [g]
