1P NO 10A name-plate push button white - 09050

Pdf

09050
Wiring devices / Traditional wiring devices / NEVE UP / Devices

1P NO 10A name-plate push button white
1P NO 10 A 250 V~ lightable name-plate push button, for E10 10x28 mm 1 W max lamp, white - 2 modules

Product Status
3 - Active

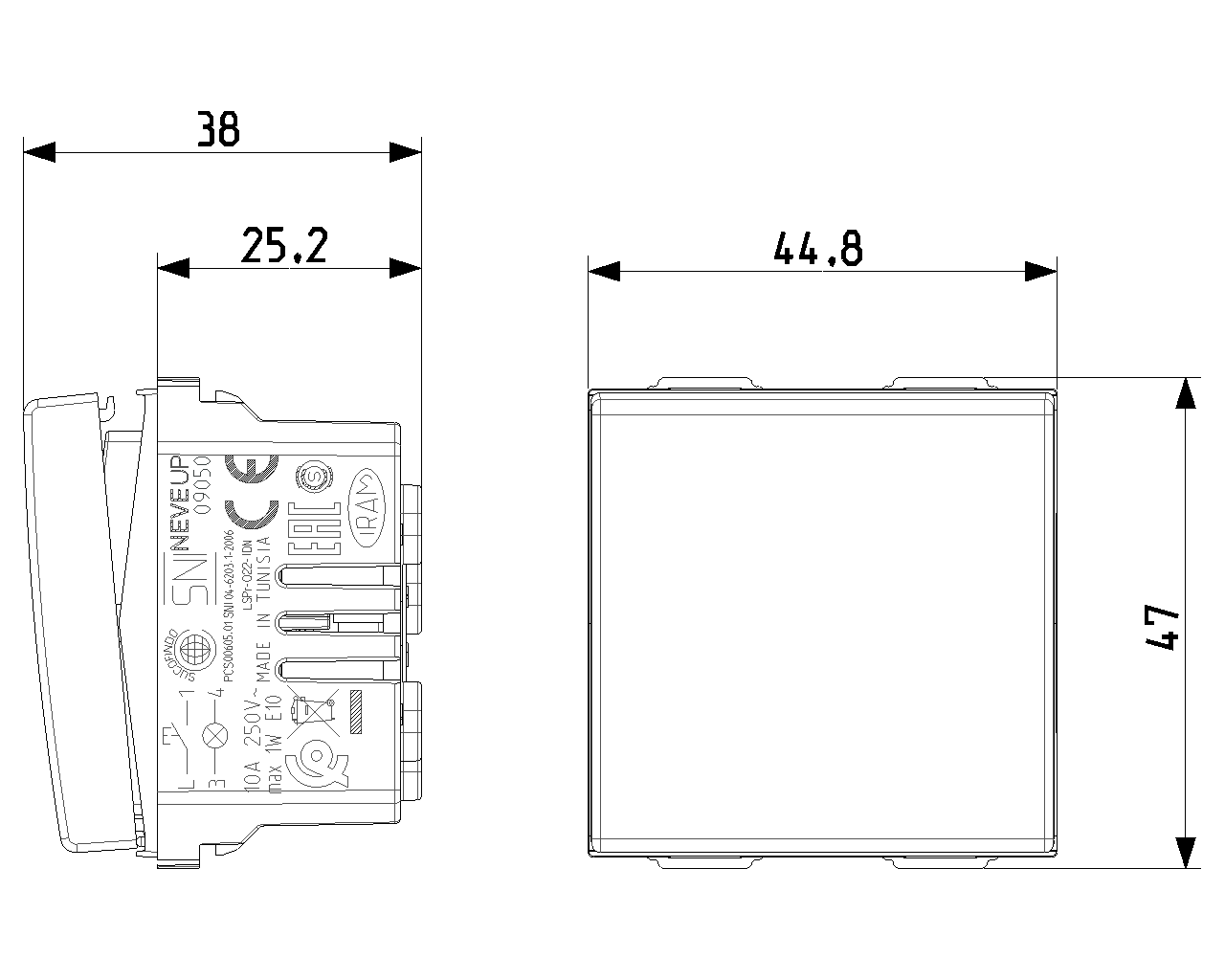

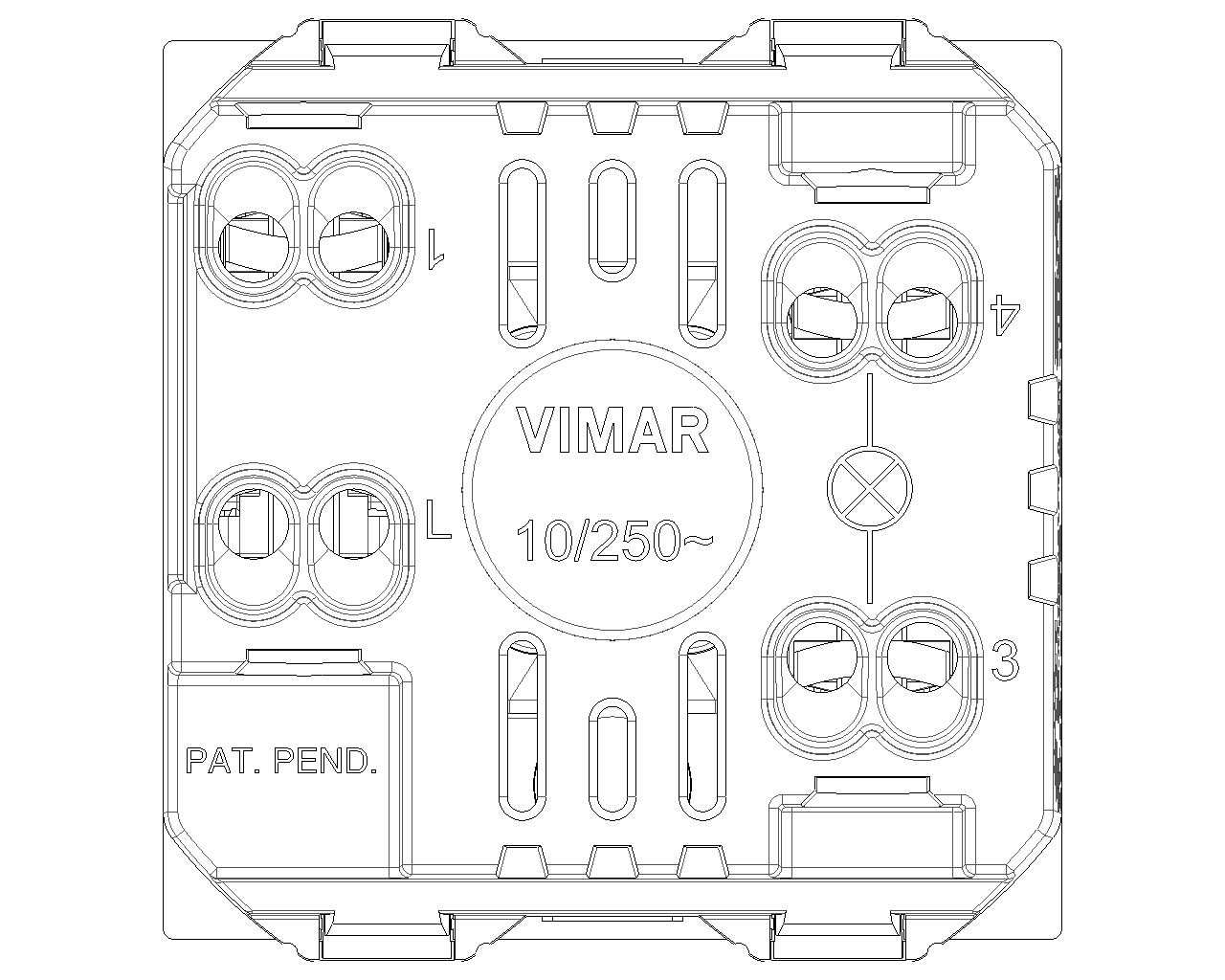

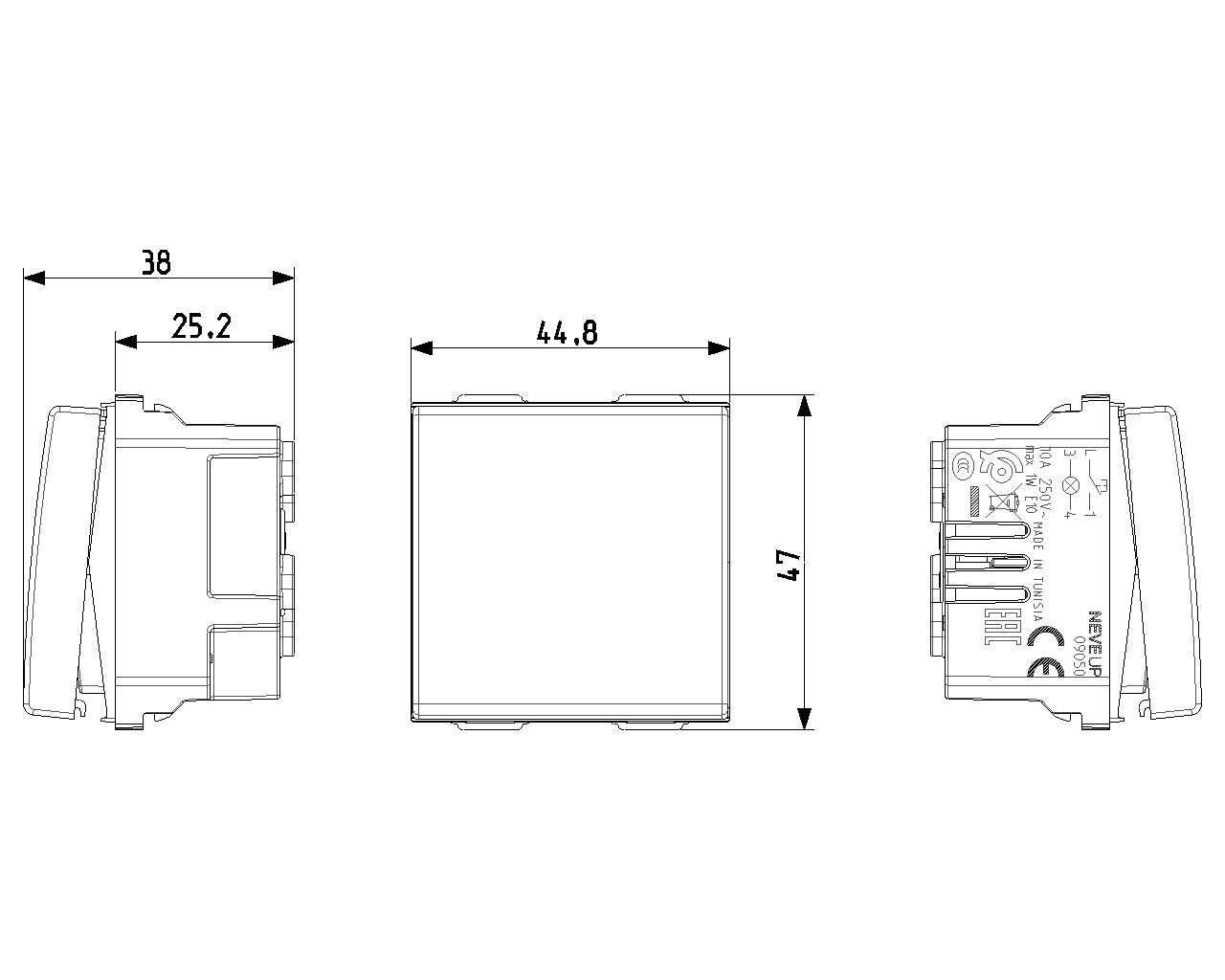

Drawings

Class group
Communication technique
Class
Doorbell
With lighting
Yes
Material
Plastic
Mounting method
Flush-mounted
Colour
White
Wireless
No
Built-in depth
25,20 mm

00. CE Marking - EU

13. SNI-MGI - Indonesia

19. NOM - Mexico

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352305069
1 NR
5.1x4.3x5.3 [cm]
46.33 [g]
Barcode Qty 20 NR
8007352305076
20 NR
26.9x11.6x9 [cm]
1,016.53 [g]
Barcode Qty 240 NR
8007352305083
240 NR
38x28.5x35.5 [cm]
12,752 [g]
