Blank module white - 09041

Pdf
Vimar - 09041 - Blank module white
Vimar - 09041 - Blank module white

09041
Wiring devices / Traditional wiring devices / NEVE UP / Blank module

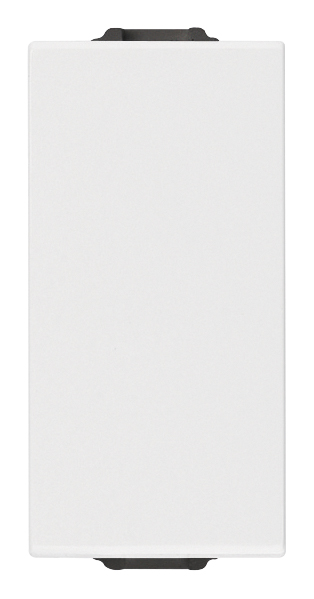

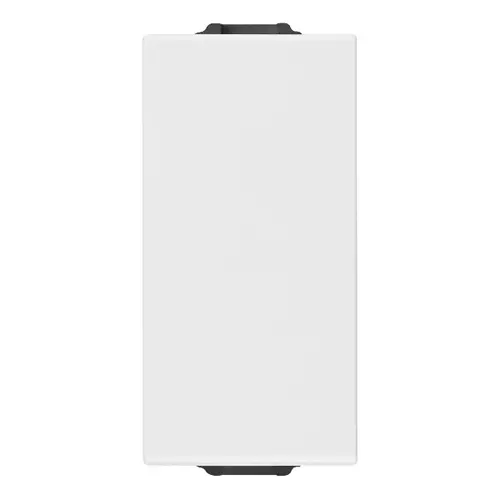

Blank module white
Blank module, white

Product Status
3 - Active

You may also be interested in

09044
09044 - Cable outlet with cord grip white

Drawings

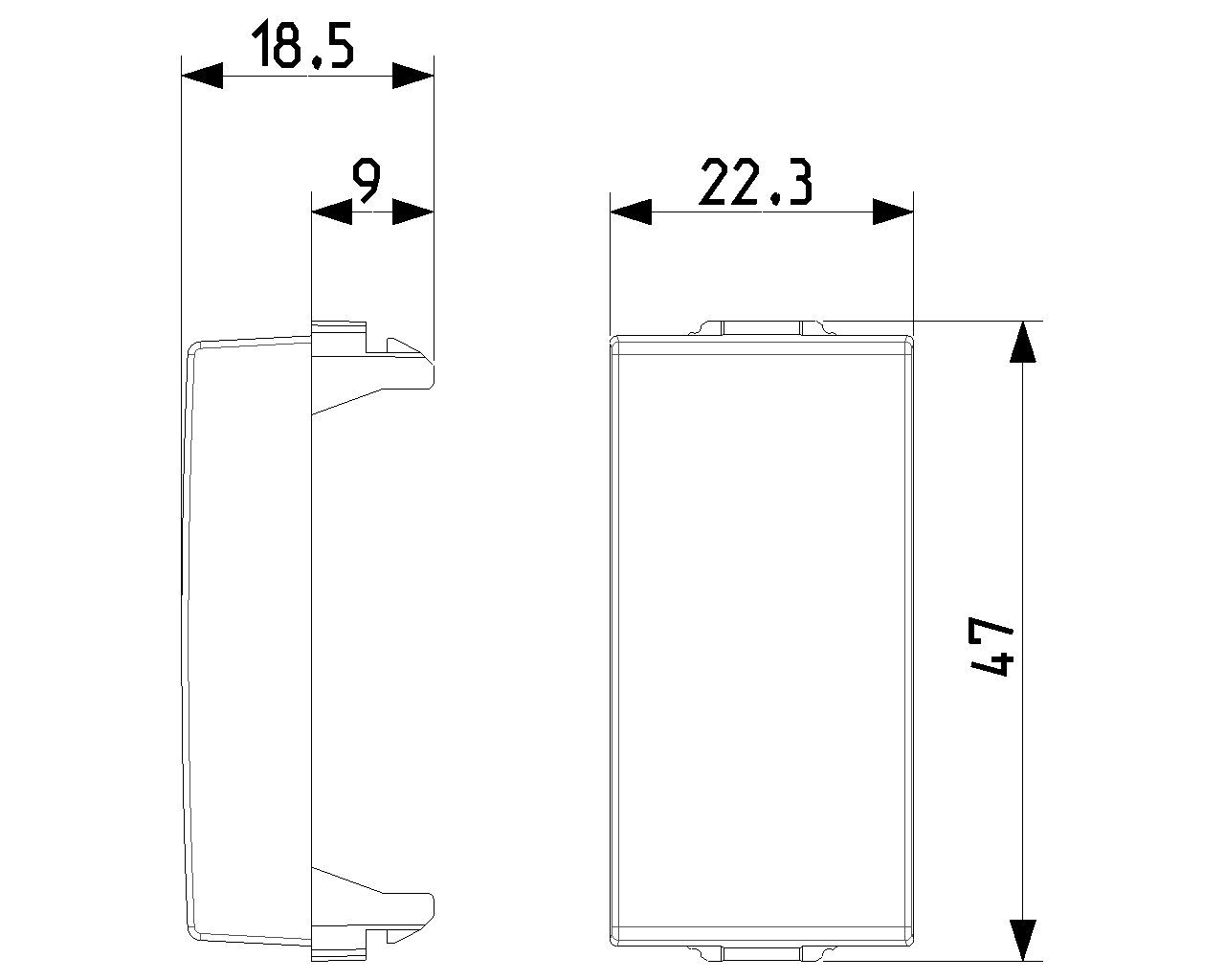

view encumbered art. 09041
PNG DXF
rear view art. 09041
PNG DXF

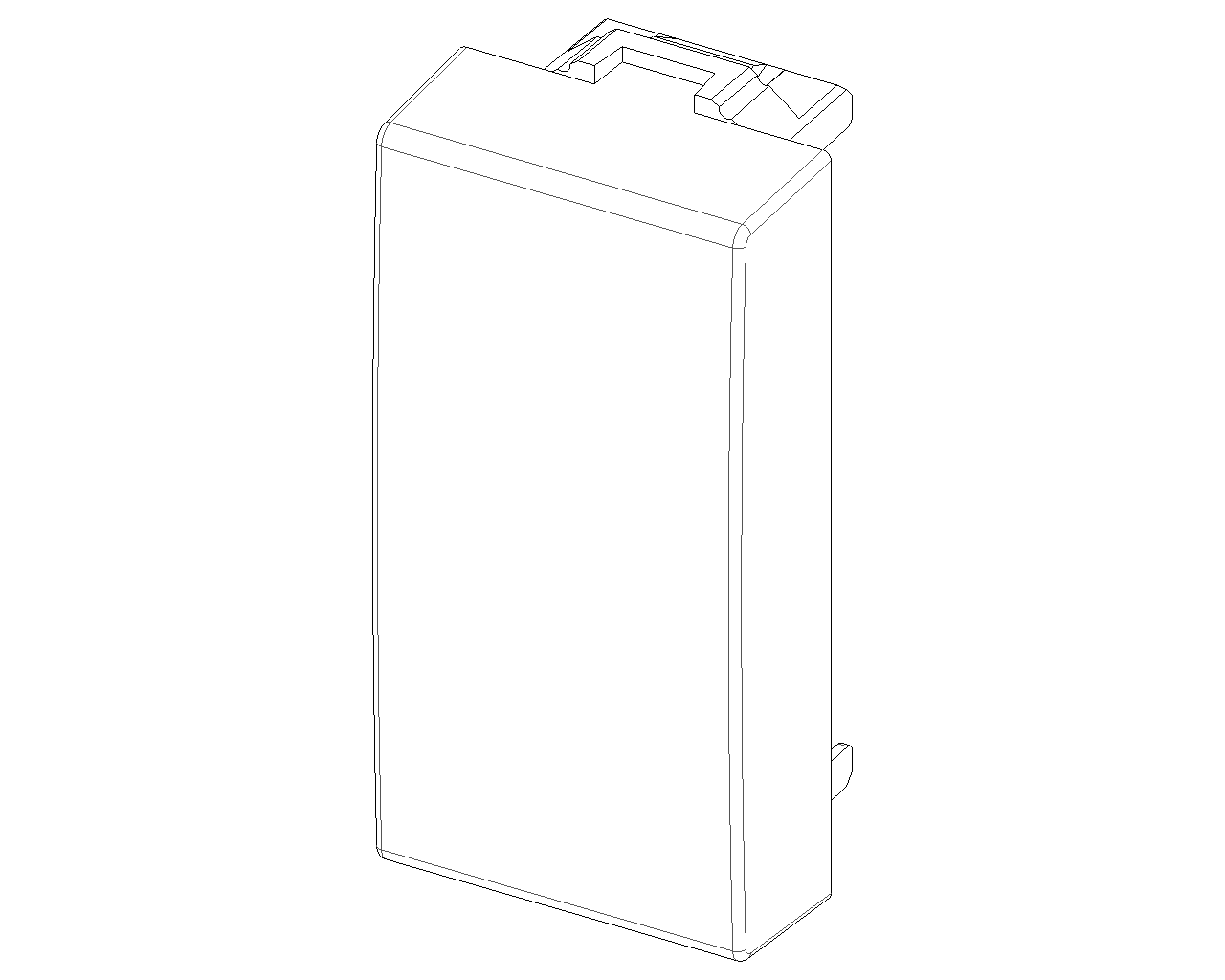

3D view art. 09041
PNG DXF
Class group
Domestic switching devices
Class
Push button
Method of operation
Other
Nominal voltage
0 V
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Device width
22,30 mm
Device height
47,00 mm
Device depth
18,50 mm

00. CE Marking - EU

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352295100
1 NR
2.23x4.7x1.85 [cm]
4.07 [g]
Barcode Qty 10 NR
8007352295117
10 NR
22.3x4.7x1.85 [cm]
42.13 [g]
Barcode Qty 100 NR
8007352295643
100 NR
28.2x11.1x10 [cm]
519 [g]
Barcode Qty 1,000 NR
8007352295940
1,000 NR
57.5x22.5x30 [cm]
5,480 [g]
