Button 2M not lightable white - 09022

Pdf
Vimar - 09022 - Button 2M not lightable white
Vimar - 09022 - Button 2M not lightable white

09022
Wiring devices / Traditional wiring devices / NEVE UP / Devices

Button 2M not lightable white
2-module interchangeable button, non-lighTable, white

Product Status
3 - Active

Drawings

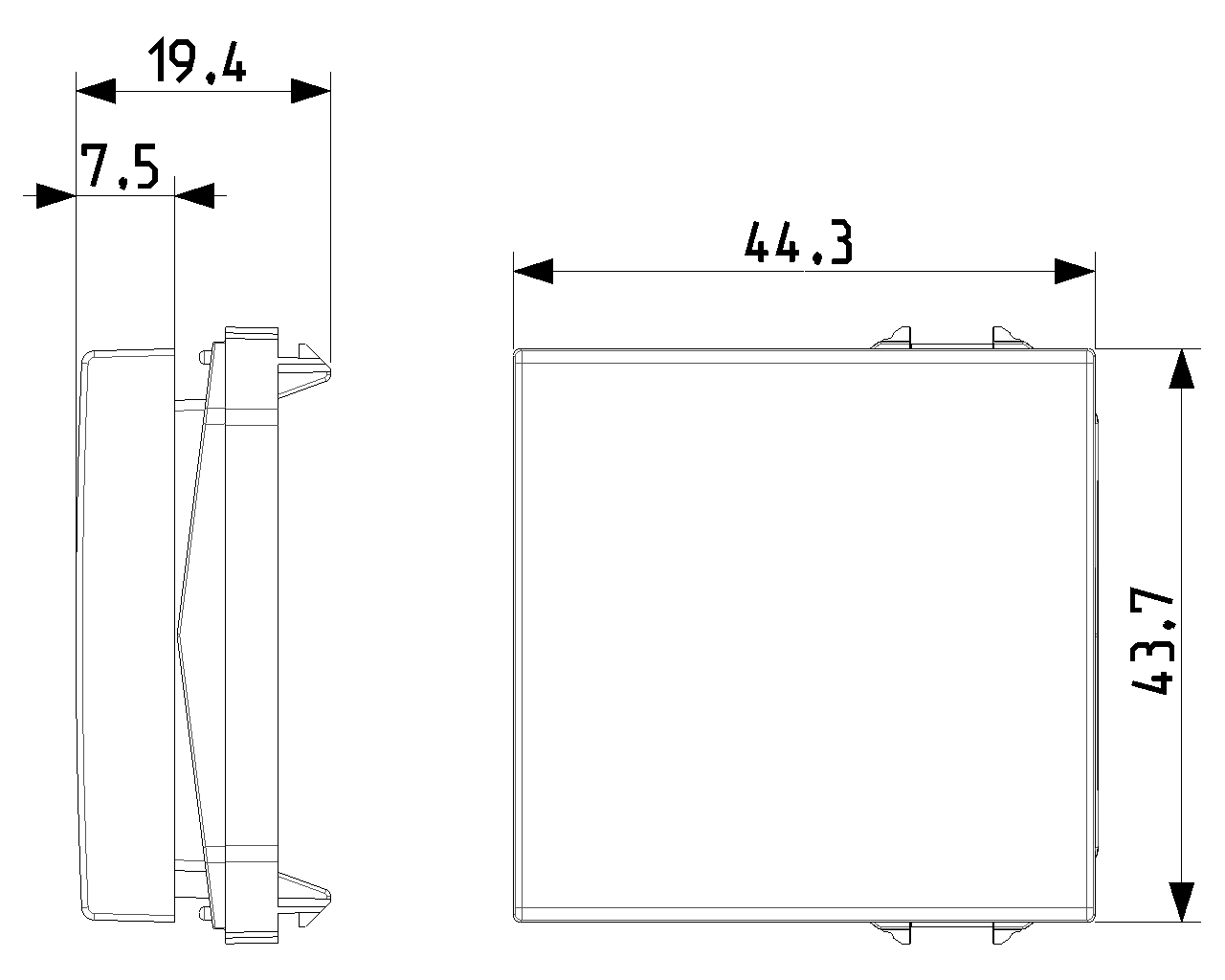

view encumbered art. 09022
PNG DXF

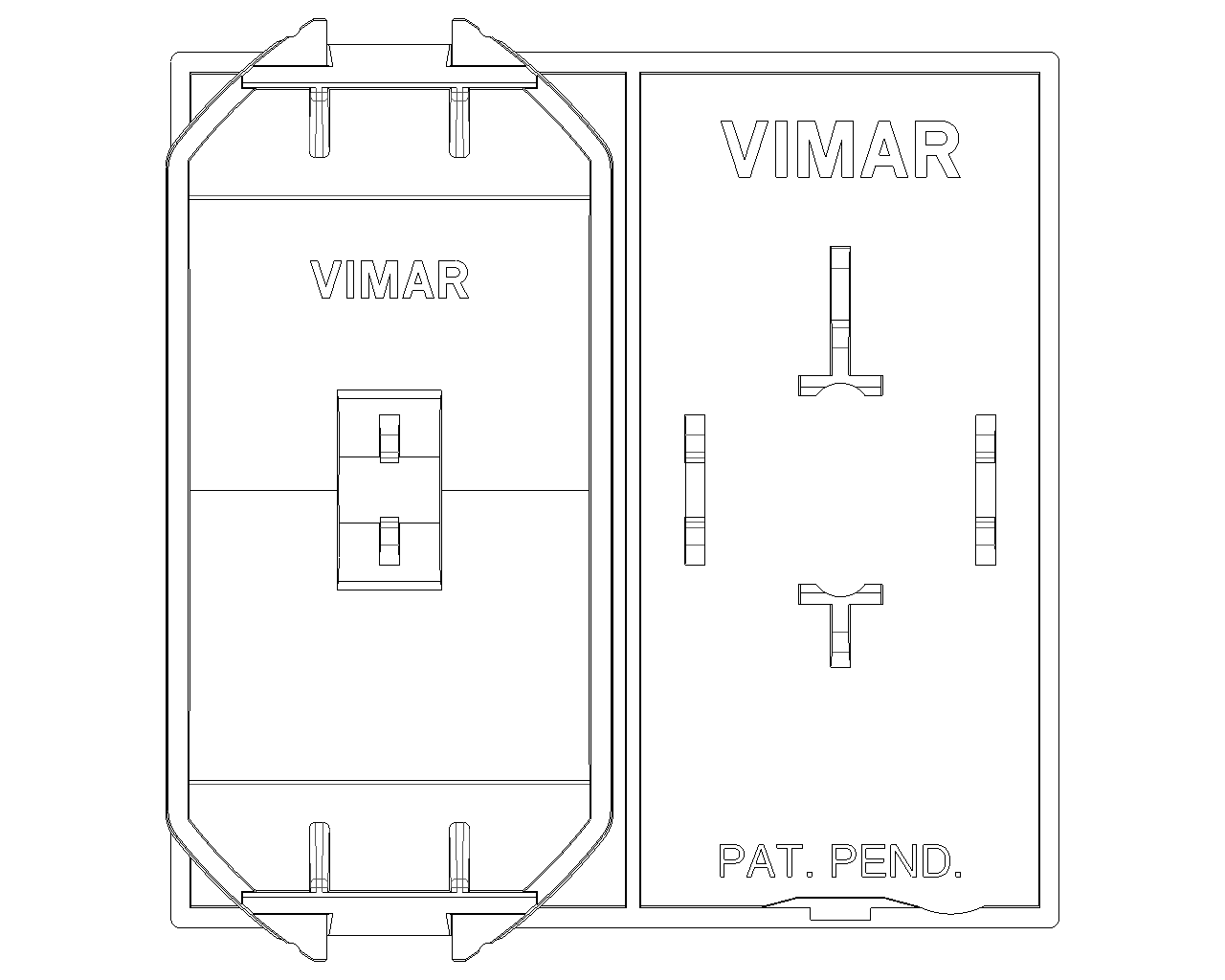

rear view art. 09022
PNG DXF

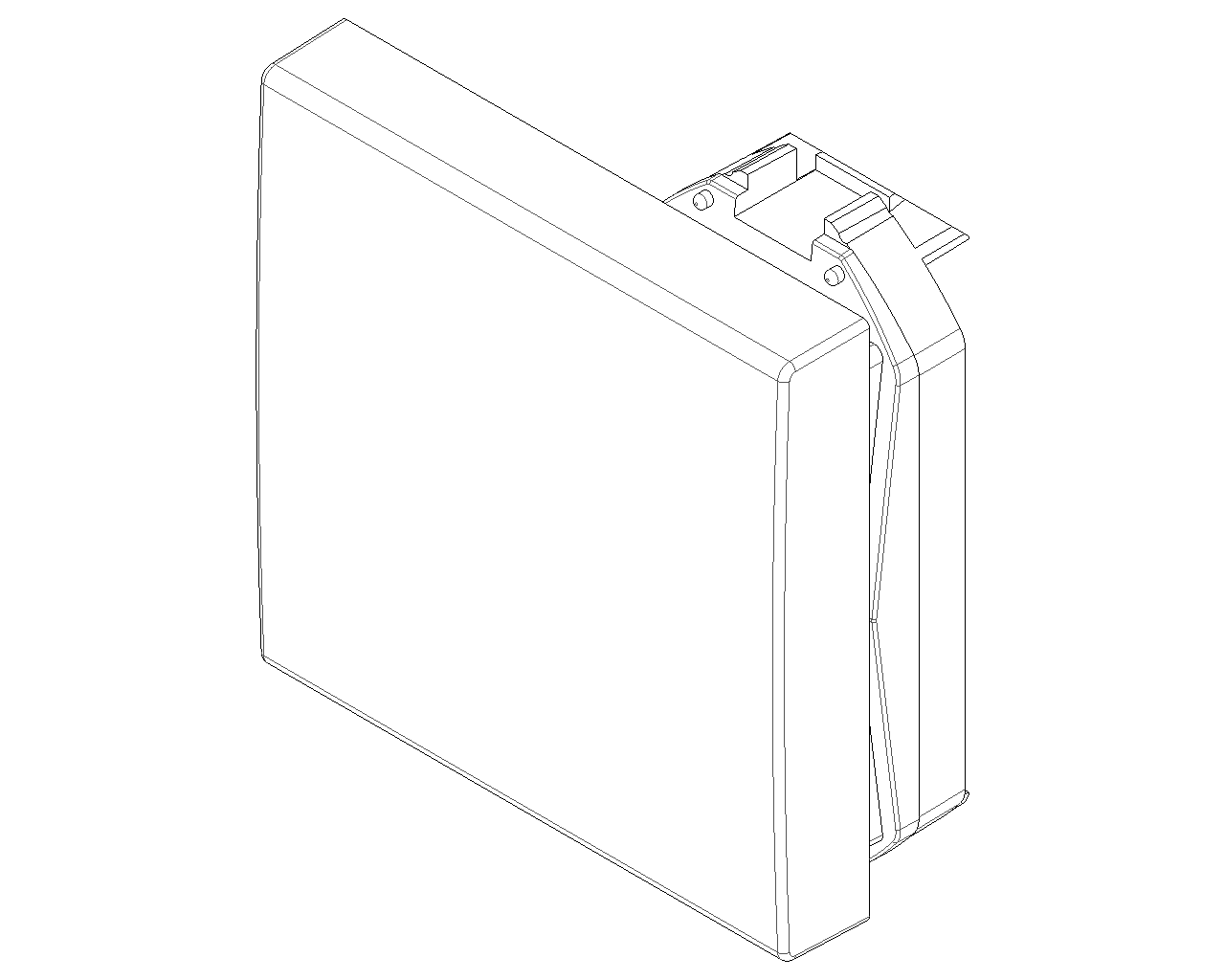

3D view art. 09022
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
With exchangeable lens/symbol
No
Depth
750,00 mm

00. CE Marking - EU

29. QCERT - Colombia

29. QCERT - Colombia

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352659674
1 NR
4.4x4.3x1.1 [cm]
14.605 [g]
Barcode Qty 2 NR
8007352659681
2 NR
5.1x2.8x5.3 [cm]
21.58 [g]
Barcode Qty 20 NR
8007352659698
20 NR
14.4x11.6x6 [cm]
257.2 [g]
Barcode Qty 240 NR
8007352659704
240 NR
36.5x33x13.5 [cm]
3,505.2 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
