Plate 1M aluminium screw fix. bronze - 08505.BR

Pdf
Vimar - 08505.BR - Plate 1M aluminium screw fix. bronze
Vimar - 08505.BR - Plate 1M aluminium screw fix. bronze

08505.BR
Wiring devices / Traditional wiring devices / 8000 / Cover plates

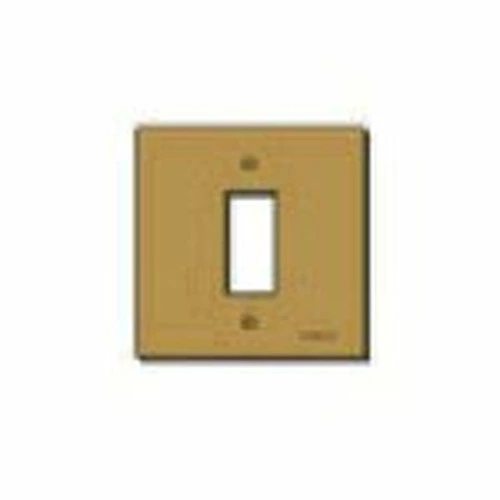

Plate 1M aluminium screw fix. bronze
1-module cover plate for ø 60 mm round mounting boxes, anodized aluminium, screw fixing, bronze. For mounting frame 08501

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Screw mounting
Width
79,50 mm
Height
79,50 mm
Depth
6,00 mm
Built-in width
79,50 mm
Built-in height
79,50 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352040977
1 NR
8x8x0.6 [cm]
14.87 [g]
Barcode Qty 20 NR
8007352004979
20 NR
14.2x9.8x9.1 [cm]
342.33 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
