2P+E 16A P30 outlet+C16 CB - 08443

Pdf
Vimar - 08443 - 2P+E 16A P30 outlet+C16 CB
Vimar - 08443 - 2P+E 16A P30 outlet+C16 CB

08443
Wiring devices / Traditional wiring devices / 8000 / Devices

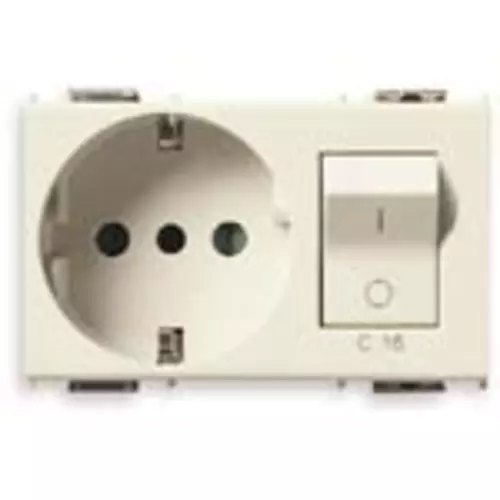

2P+E 16A P30 outlet+C16 CB
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts) interlocked with 1P+N C 16 circuit breaker, supply voltage 230 V~ 50 Hz, breaking capacity 3000 A - 3 special modules

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P30
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Special power supply
No special power supply
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Device height
45,00 mm
Device depth
56,30 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352112940
1 NR
5.2x5.7x7.6 [cm]
121.4 [g]
Barcode Qty 5 NR
8007352112957
5 NR
21.4x11.6x6 [cm]
664.87 [g]
