1P NO 10A 12-24V name-plate push button - 08420

Pdf
Vimar - 08420 - 1P NO 10A 12-24V name-plate push button
Vimar - 08420 - 1P NO 10A 12-24V name-plate push button

08420
Wiring devices / Traditional wiring devices / 8000 / Devices

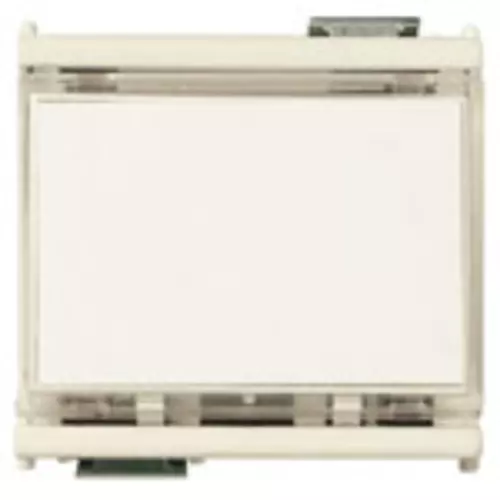

1P NO 10A 12-24V name-plate push button
1P NO 10 A 12-24 V (SELV) push button with lightable name plate for 12 or 24 V 3 W ø 7x31 mm lamp - 2 special modules. Provided without lamp

Product Status
3 - Active

You may also be interested in

14771
14771 - E10 10x28mm 24V 2W incand.lamp white
14777
14777 - E10 10x28mm 220V 3W incand.lamp white
Class group
Communication technique
Class
Doorbell
With lighting
Yes
Material
Plastic
Mounting method
Flush-mounted
Colour
White
Wireless
No
Built-in depth
26,50 mm
Height
45,00 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352090521
1 NR
5.1x4.3x5.3 [cm]
50.67 [g]
Barcode Qty 20 NR
8007352090538
20 NR
26.9x11.6x9 [cm]
1,093 [g]
Barcode Qty 240 NR
8007352644786
240 NR
38x28.5x35.5 [cm]
13,644 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
