2P+E 16A P30 outlet - 08409

Pdf
Vimar - 08409 - 2P+E 16A P30 outlet
Vimar - 08409 - 2P+E 16A P30 outlet

08409
Wiring devices / Traditional wiring devices / 8000 / Devices

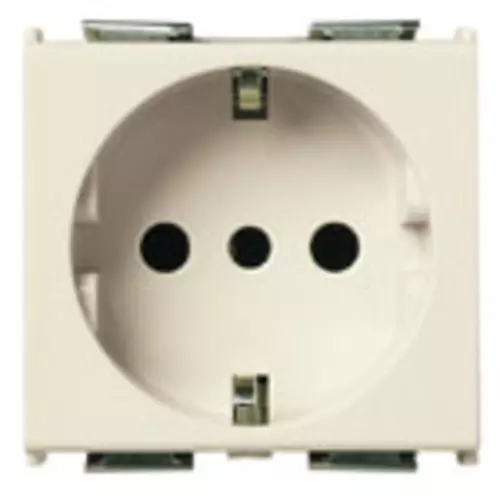

2P+E 16A P30 outlet
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts) - 2 special modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P30
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device height
45,00 mm
Device depth
39,50 mm

00. CE Marking - EU

07. INGCER - Chile

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352090460
1 NR
5.1x4.3x5.3 [cm]
52.7 [g]
Barcode Qty 20 NR
8007352090477
20 NR
26.9x11.6x9 [cm]
1,135.27 [g]
Barcode Qty 240 NR
8007352641723
240 NR
38x28.5x35.5 [cm]
14,148 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
