Green indicator unit - 08305

Pdf

08305
Wiring devices / Traditional wiring devices / 8000 / Devices

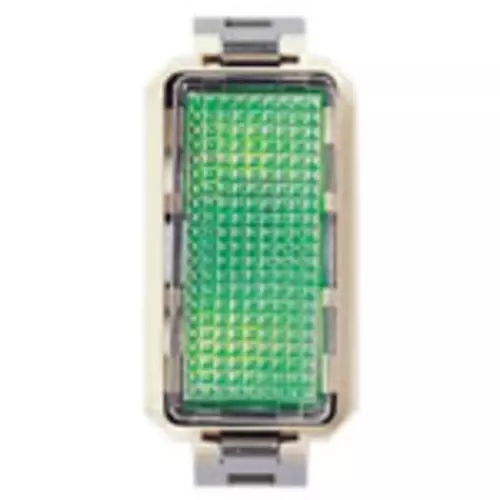

Green indicator unit
Indicator unit for ø 6,3x28 mm or ø 7x31 mm lamp, green diffuser. Provided without lamp

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Lamp holder
Other
With light source
No
Lamp type
Other
With flashlight
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
6029
Transparent
No
Colour light source
Green
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352014664
1 NR
4.1x2.8x5.3 [cm]
23.67 [g]
Barcode Qty 50 NR
8007352009288
50 NR
21.4x11.6x14.2 [cm]
1,301.53 [g]
