2P 10AX 2-way switch - 08286

Pdf
Vimar - 08286 - 2P 10AX 2-way switch
Vimar - 08286 - 2P 10AX 2-way switch

08286
Wiring devices / Traditional wiring devices / 8000 / Devices

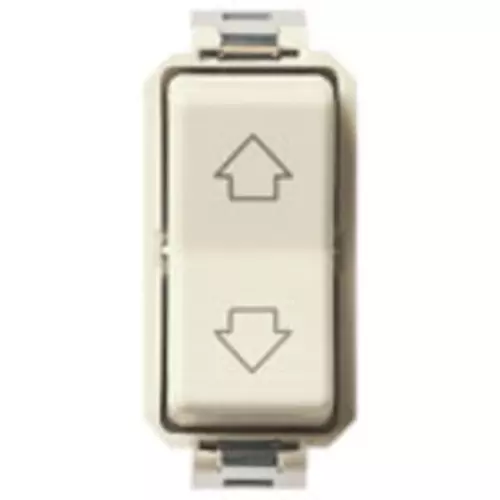

2P 10AX 2-way switch
2P 10 AX 250 V~ 2-way switch (6 terminals), with directional arrows and central OFF position. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Rocker
Number of rockers
1
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device height
45,00 mm
Device depth
43,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352014527
1 NR
5.1x2.8x5.3 [cm]
37.82 [g]
Barcode Qty 50 NR
8007352009271
50 NR
26.9x11.6x14.2 [cm]
2,014.2 [g]
