2P 10A 2-way push button - 08281

Pdf
Vimar - 08281 - 2P 10A 2-way push button
Vimar - 08281 - 2P 10A 2-way push button

08281
Wiring devices / Traditional wiring devices / 8000 / Devices

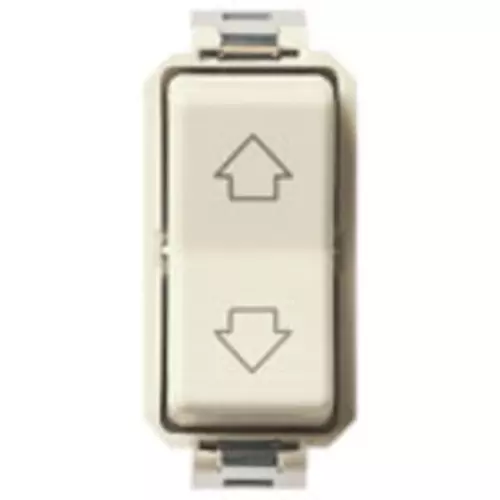

2P 10A 2-way push button
2P 10 A 250 V~ 2-way push button (6 terminals), with directional arrows and central OFF position

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device height
45,00 mm
Device depth
43,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352014503
1 NR
5.1x2.8x5.3 [cm]
38.5 [g]
Barcode Qty 50 NR
8007352006461
50 NR
26.9x11.6x14.2 [cm]
2,029.27 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
