1P NC 10A push button - 08272

Pdf
Vimar - 08272 - 1P NC 10A push button
Vimar - 08272 - 1P NC 10A push button

08272
Wiring devices / Traditional wiring devices / 8000 / Devices

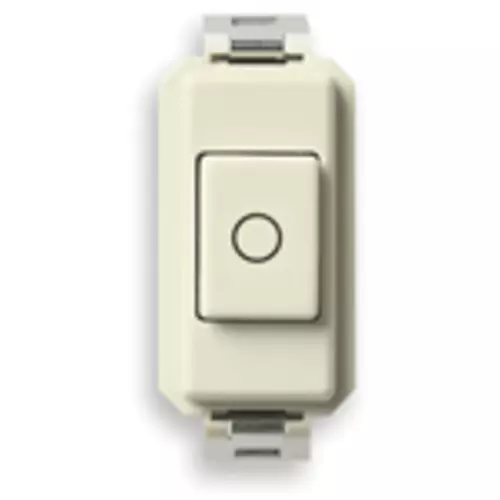

1P NC 10A push button
1P NC 10 A 250 V~ push button (OFF)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device height
45,00 mm
Device depth
35,50 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352014459
1 NR
4.1x2.8x5.3 [cm]
21.73 [g]
Barcode Qty 50 NR
8007352009240
50 NR
21.4x11.6x14.2 [cm]
1,173.87 [g]
