1P NO 10A push button general symb.lums - 08268

Pdf
Vimar - 08268 - 1P NO 10A push button general symb.lums
Vimar - 08268 - 1P NO 10A push button general symb.lums

08268
Wiring devices / Traditional wiring devices / 8000 / Devices

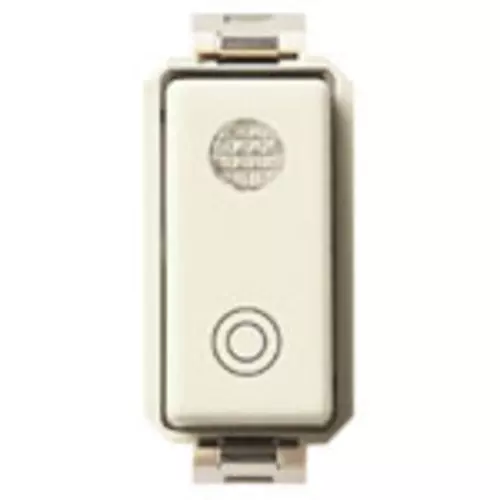

1P NO 10A push button general symb.lums
1P NO 10 A 250 V~ push button, general symbol, luminous, for signalling unit. Provided without signalling unit

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,00 mm
Device height
50,10 mm
Device depth
35,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352078123
1 NR
4.1x2.8x5.3 [cm]
21.7 [g]
Barcode Qty 50 NR
8007352078130
50 NR
21.4x11.6x14.2 [cm]
1,172.93 [g]
Barcode Qty 500 NR
8007352641426
500 NR
57.5x22.5x30 [cm]
12,240 [g]
