By-alarm Plus keypad with display - 03817

03817
Safety / By-alarm Plus / Surface mounting components / Non-modular components

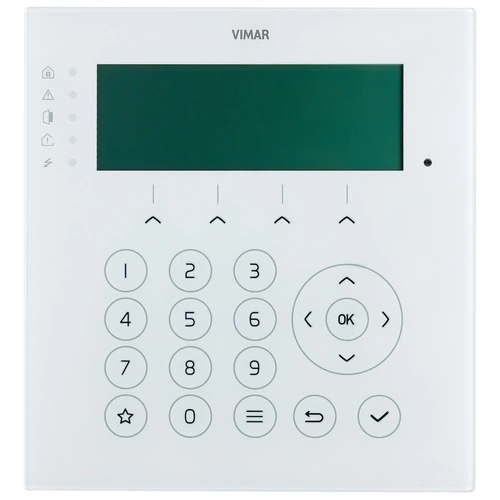

By-alarm Plus keypad with display
By-alarm Plus keypad with monochrome LCD display, 12 VDC power supply, 23 backlit keys, 5 status LEDs, surface mounting

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (754 kb)
• Feuille d’instructions (534 kb)
• Anwendungshinweise (535 kb)
• Multilanguage user manual (5054 kb)
• Manuel de l'utilisateur (2821 kb)
• Bedienungsanleitung (2823 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Switchgear for danger detection system

Engaging electronically
No

Engaging mental
No

Engaging mechanical
Yes

Engaging biometrical
No

Engaging indication
Yes

Radio system
No

Degree of protection (IP)
IP20

Material
Plastic

With contact
Yes

Width
14.030,00 mm

Height
15.030,00 mm

Depth
2.160,00 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

VdS class
None

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352707917

1 NR

15.2x3.4x16 [cm]

315.55 [g]

8007352707924

12 NR

32x23.5x18 [cm]

4,062 [g]
