Vimar - 03303.3 - 10 in organizer tray 12 RJ45 Cat6 UTP 1u
Vimar - 03303.3 - 10 in organizer tray 12 RJ45 Cat6 UTP 1u

03303.3
System infrastructure / Netsafe structured wiring / Surface mounting components / Carpentry

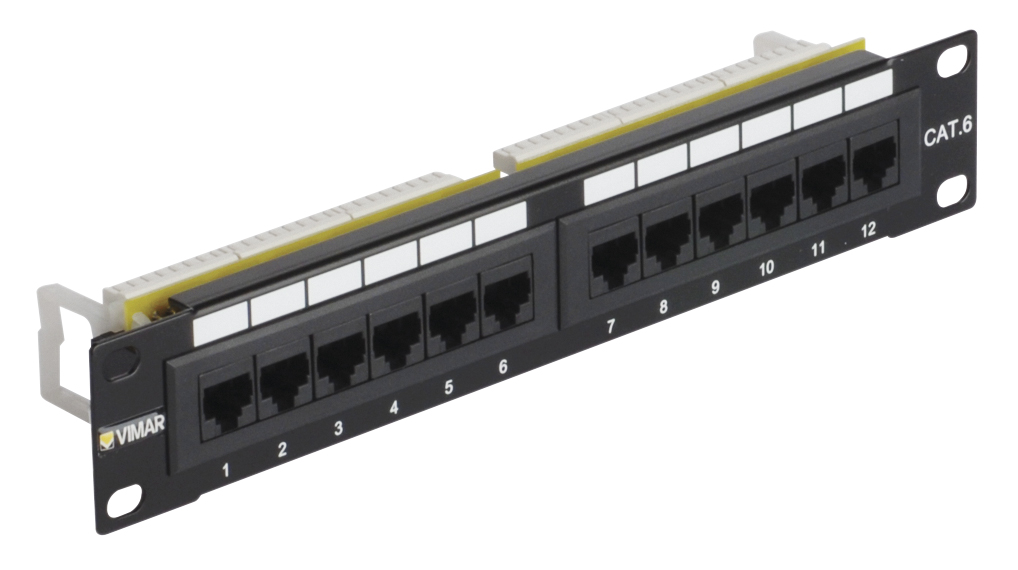

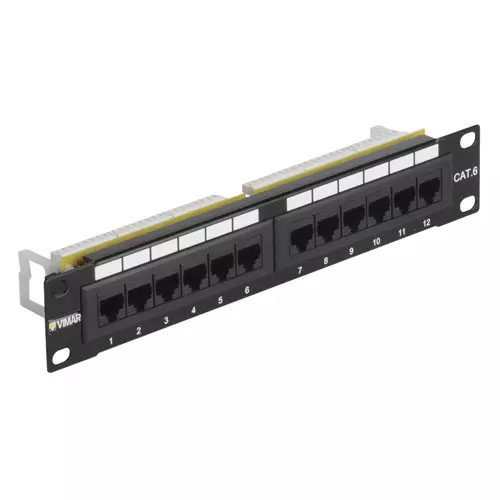

10 in organizer tray 12 RJ45 Cat6 UTP 1u
10 in patch panel with 12 RJ45 Cat. 6 connectors, unshielded, T568A/B universal wiring, 8-contact, 110 type insulation-piercing terminals - 1 rack unit

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

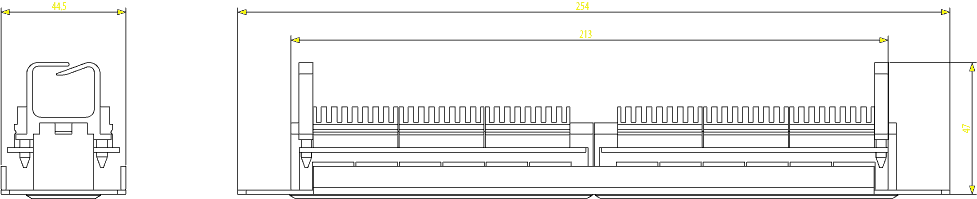

view encumbered art. 03303.3
PNG DXF

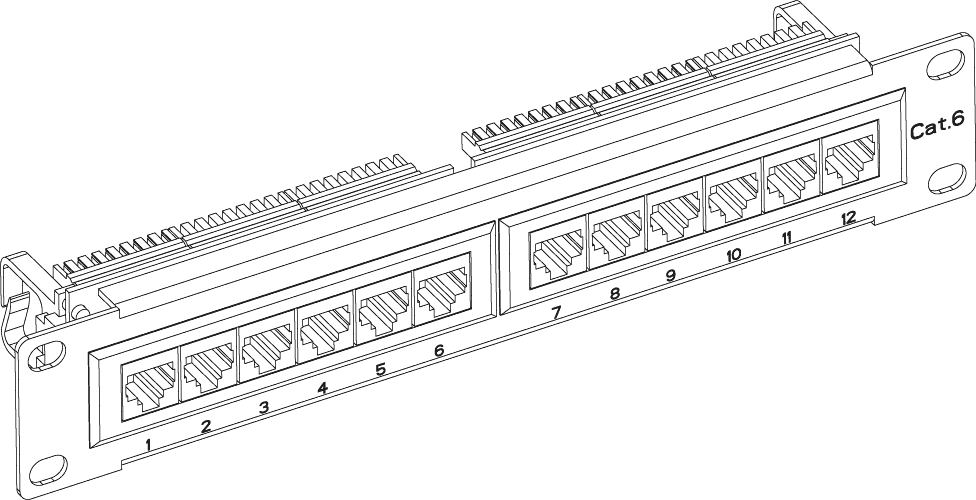

3D view art. 03303.3
PNG DXF
Class group
Data and telecommunication
Class
Patch panel copper (twisted pair)
Number of buses/couplings
12
Suitable for number of connectors
12
Type of connector
RJ45 8(8)
Screened
No
Category
6
Connection type
110
Number of height units
1
Colour
Other
RAL-number
0
Mounting method
254 mm (10 inch) mounting
Height
47,00 mm
Width
254,00 mm
Depth
44,50 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352275843
1 NR
28.2x6.7x4.8 [cm]
399.27 [g]
