Vimar - 03242.4 - 42u patch pan.floor-cabinet 640x640x2018
Vimar - 03242.4 - 42u patch pan.floor-cabinet 640x640x2018

03242.4
System infrastructure / Netsafe structured wiring / Surface mounting components / Carpentry

42u patch pan.floor-cabinet 640x640x2018

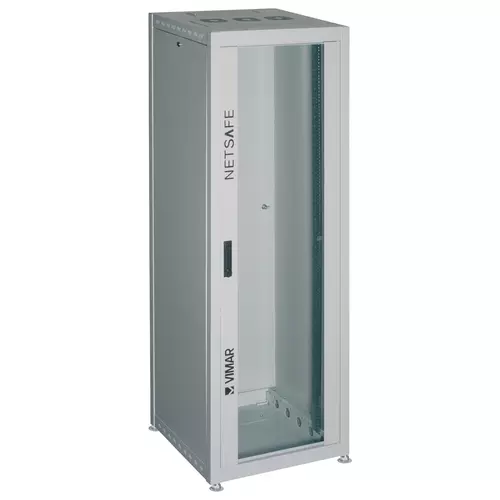

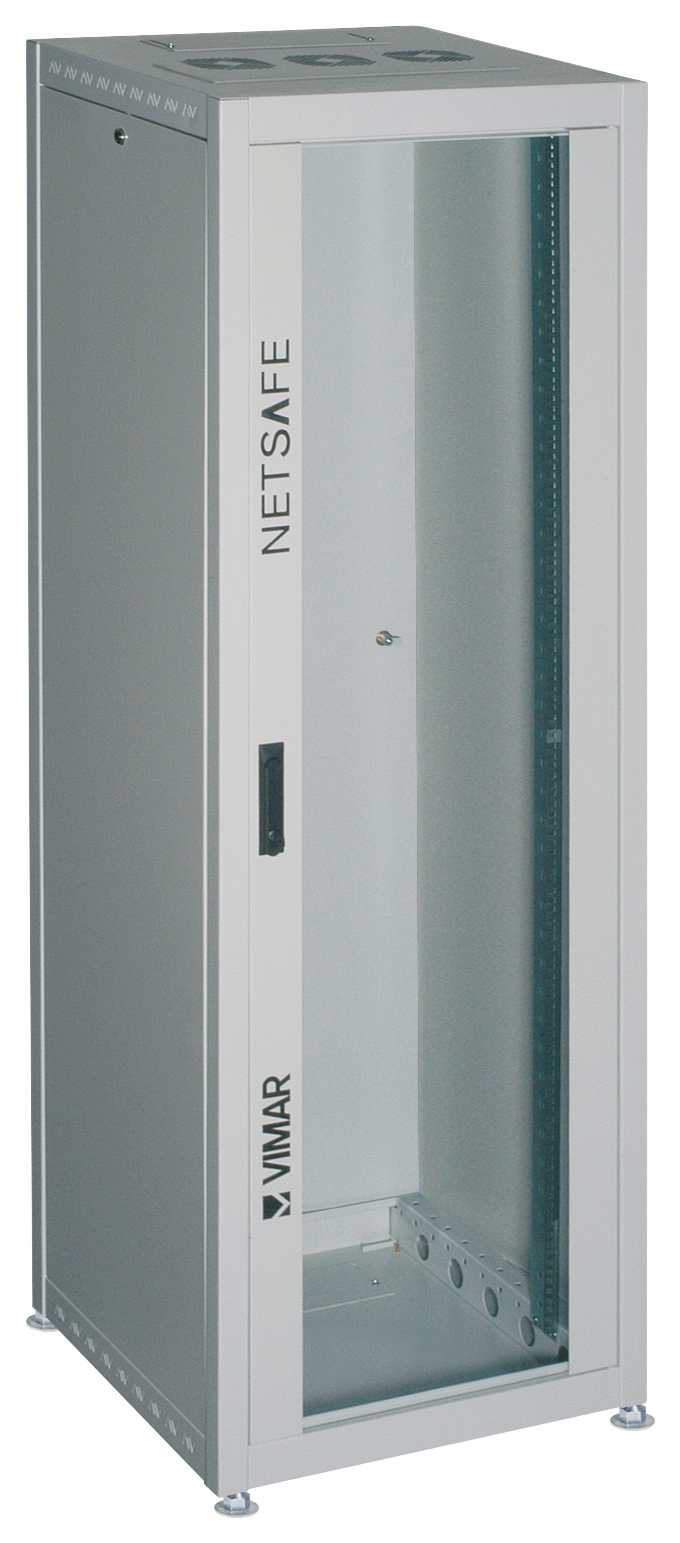

Floor mount cabinet for 19 in patch panels of up to 42 rack units, couple of front pillars , vertically adjustable supports, RAL 7035 grey. Dimensions 640x640x2018 mm

Product Status
3 - Active

Drawings

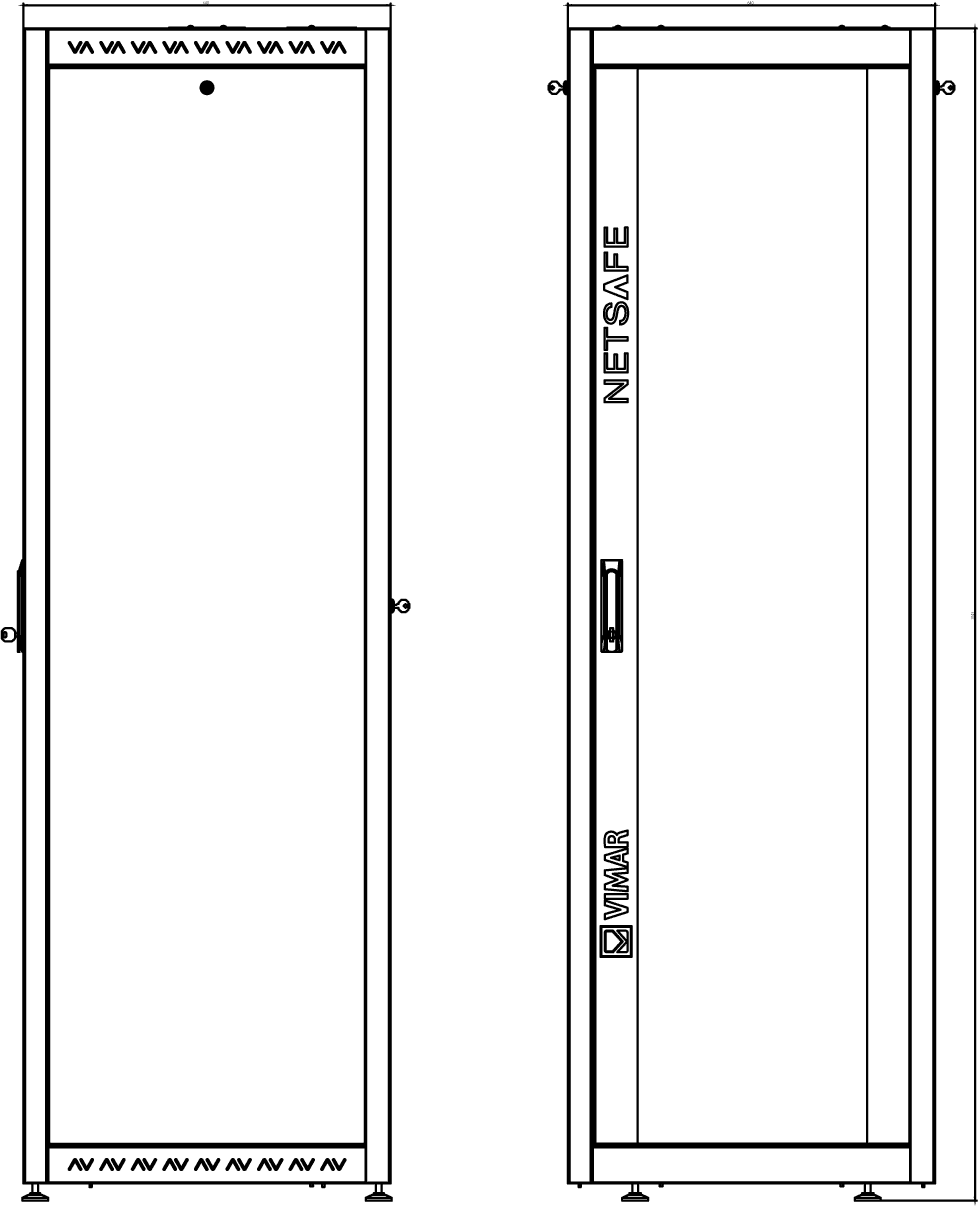

view encumbered art. 03242.4
PNG DXF
rear view art. 03242.4
PNG DXF

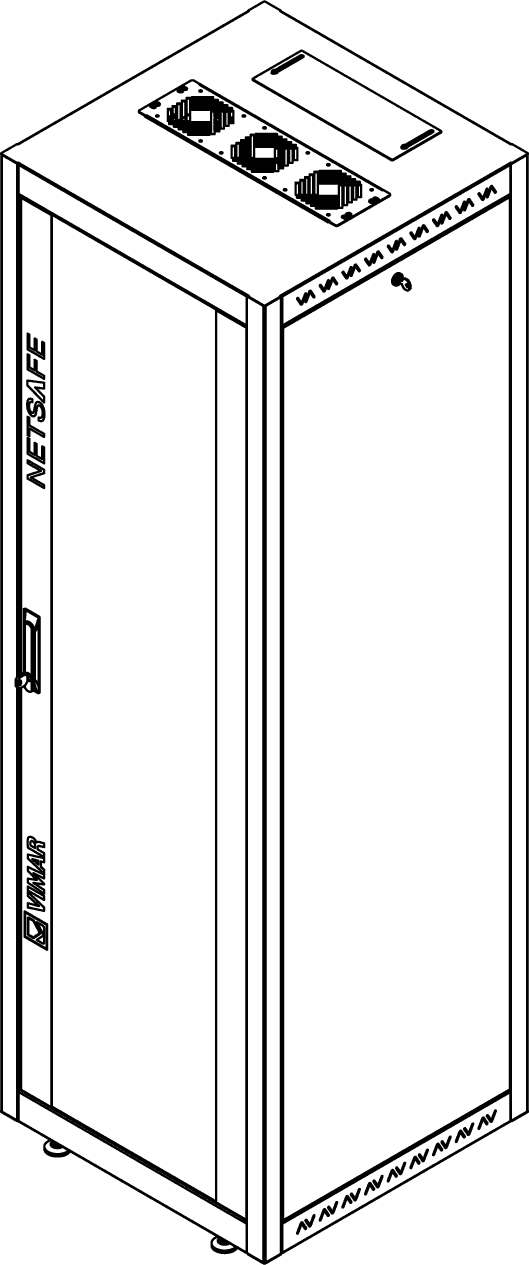

3D view art. 03242.4
PNG DXF
Class group
Cabinet enclosures
Class
Network/server enclosure
Type of profile rail
L-shaped
Number of doors
2
Type of ventilation
None
Width
640 mm
Height
2.018 mm
Depth
640,00 mm
Modular spacing
482.6 mm (19 inch)
Number of height units
42
With roof plate
Yes
With earthing
Yes
With front door
Yes
With rear door
Yes
With sidewall
Yes
With base
No
Material
Other
Surface finishing
Lacquered
Colour
Grey
Model
With swing frame
RAL-number
0
Demountable
Yes
Degree of protection (IP)
IP20
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352559899
1 NR
79.5x65x224 [cm]
99,999 [g]
